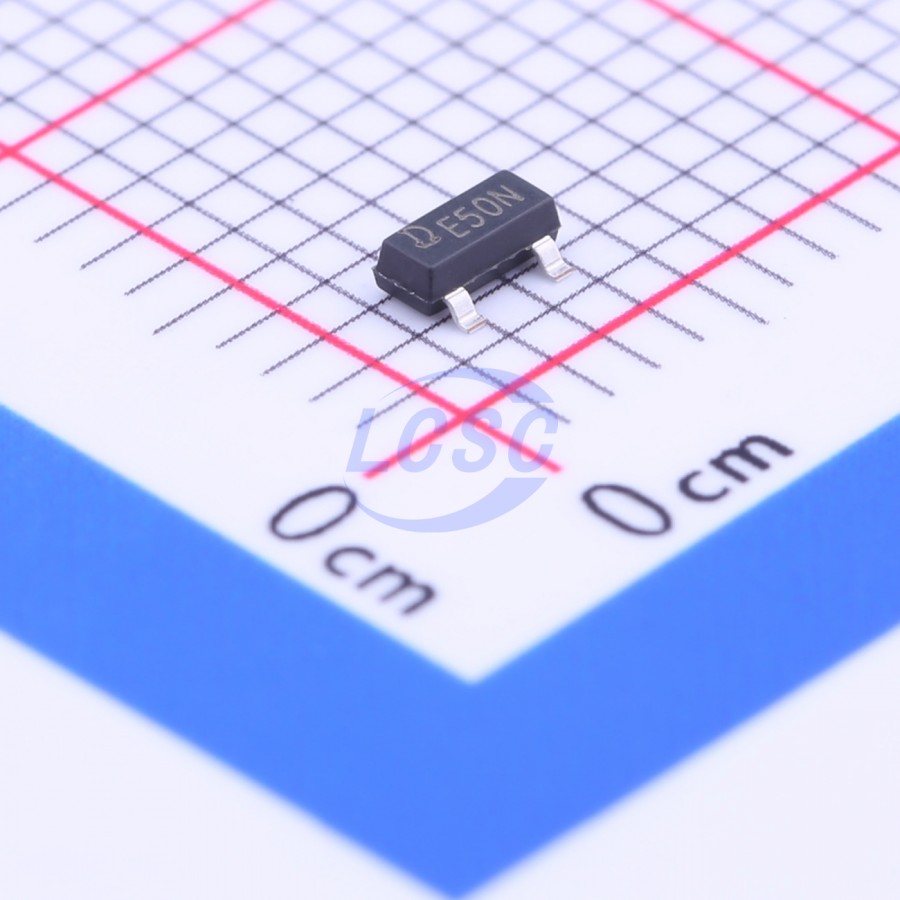

QX2303L50T

The QX2303 series is a high-efficiency, low-ripple, high-frequency PFM boost DC-DC converter. With only four external components, it steps up a low battery input voltage to the required operating voltage, making it ideal for portable applications powered by 1–4 standard batteries. The circuit employs a high-performance, low-power reference voltage architecture with trimming techniques applied during production to ensure high output voltage accuracy and low temperature drift. Output voltage accuracy is better than ±2.5%, with a peak efficiency of up to 89%.

Applications

• Electronic devices powered by 1~3 dry-cell batteries
• LED flashlights, LED lights, blood pressure monitors
• Handheld electronic devices such as electronic dictionaries, car alarms, chargers, VCRs, and PDAs

Key features

• High efficiency, low ripple, high operating frequency
• Only four external components required
• High-performance, low-power reference voltage circuit with trimming technology ensures high output accuracy and low temperature drift
• Output voltage accuracy better than ±2.5%
• Peak efficiency up to 89%
• Four package options: SOT23, SOT23-5, SOT89-3, and TO-92
• SOT23-5 package includes built-in EN enable pin for converter on/off control; when EN is pulled low, the chip enters shutdown mode with minimum power consumption
• Maximum operating frequency: 300KHz
• Output voltage: 2.5V~5.0V (0.1V step)
• Low startup voltage: 0.8V (1mA)
• Output current: greater than 300mA (Vi = 2.5V, Vo = 3.3V)
• Low ripple, low noise
