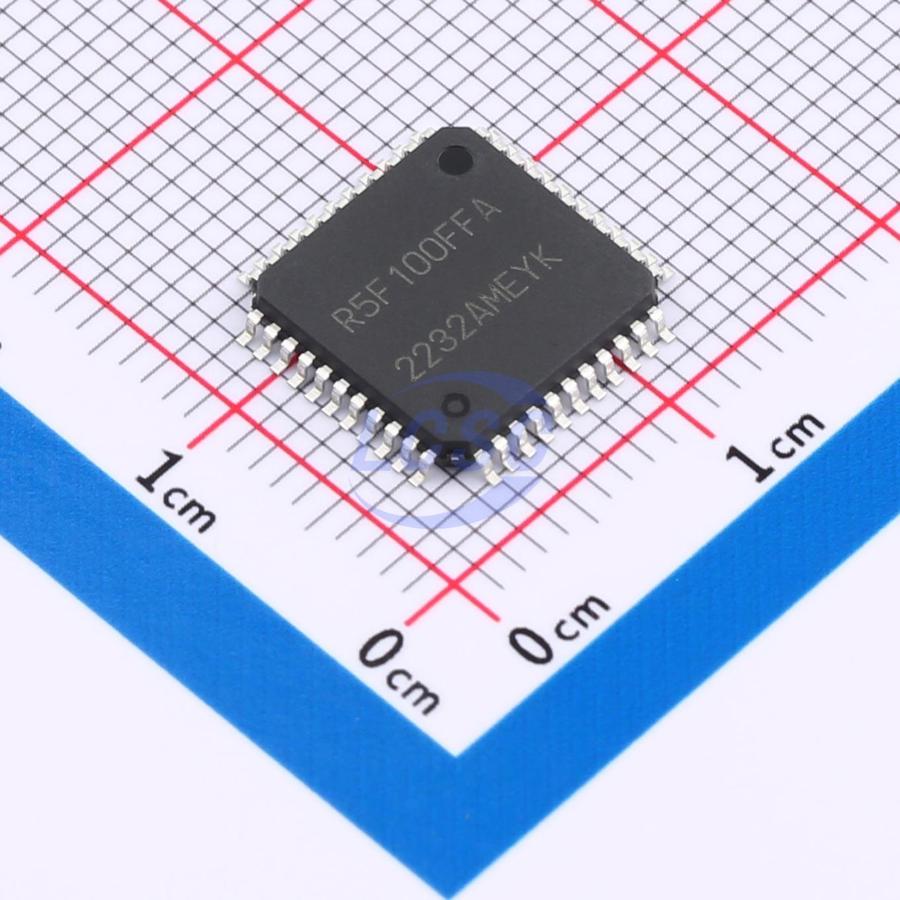

R5F100FFAFP#10

True low-power platform (66 μA/MHz, and 0.57 μA for operation with only RTC and LVD) for the general-purpose applications, with 1.6-V to 5.5-V operation, 16- to 512-Kbyte code flash memory, and 41 DMIPS at 32 MHz

Key features

• Ultra-low power consumption technology
• VDD = single power supply voltage of 1.6 to 5.5 V
• HALT mode
• STOP mode
• SNOOZE mode
• RL78 CPU core
• CISC architecture with 3-stage pipeline
• Minimum instruction execution time: Can be changed from high speed (0.03125 μs: @ 32 MHz operation with high-speed on-chip oscillator) to ultra-low speed (30.5 μs: @ 32.768 kHz operation with subsystem clock)
• Address space: 1 MB
• General-purpose registers: (8-bit register ×)×4 banks
• On-chip RAM: 2 to 32 KB
• Code flash memory
• Code flash memory: 16 to 512 KB
• Block size: 1 KB
• Prohibition of block erase and rewriting (security function)
• On-chip debug function
• Self-programming (with boot swap function/flash shield window function)
• Data Flash Memory
• Data flash memory: 4 KB to 8 KB
• Back ground operation (BGO): Instructions can be executed from the program memory while rewriting the data flash memory.
• Number of rewrites: 1,000,000 times (TYP.)
• Voltage of rewrites: VDD = 1.8 to 5.5 V
• High-speed on-chip oscillator
• Select from 32 MHz, 24 MHz, 16 MHz, 12 MHz, 8 MHz, 6 MHz, 4 MHz, 3 MHz, 2 MHz, and 1 MHz
• High accuracy: +/- 1.0% (VDD = 1.8 to 5.5 V, TA = -20 to +85℃)
• Operating ambient temperature
• TA = -40 to +85℃ (A: Consumer applications, D: Industrial applications )
• TA = -40 to +105℃ (G: Industrial applications)
• Power management and reset function
• On-chip power-on-reset (POR) circuit
• On-chip voltage detector (LVD) (Select interrupt and reset from 14 levels)
• DMA (Direct Memory Access) controller
• 2/4 channels
• Number of clocks during transfer between 8/16-bit SFR and internal RAM: 2 clocks
• Multiplier and divider/multiply-accumulator
• 16 bits × 16 bits = 32 bits (Unsigned or signed)
• 32 bits ÷ 32 bits = 32 bits (Unsigned)
• 16 bits × 16 bits + 32 bits = 32 bits (Unsigned or signed)
• Serial interface
• Simplified SPI (CSI): 2 to 8 channels
• UART/UART (LIN-bus supported): 2 to 4 channels
• Simplified I2C communication: 3 to 10 channels
• Timer
• 16-bit timer: 8 to 16 channels
• 12-bit interval timer: 1 channel
• Real-time clock: 1 channel (calendar for 99 years, alarm function, and clock correction function)
• Watchdog timer: 1 channel (operable with the dedicated low-speed on-chip oscillator)
• A/D converter
• 8/10-bit resolution A/D converter (VDD = 1.6 to 5.5 V)
• Analog input: 6 to 26 channels
• Internal reference voltage (1.45 V) and temperature sensor
• I/O port
• I/O port: 16 to 120 (N-ch open drain I/O [withstand voltage of 6 V]: 0 to 4, N-ch open drain I/O [VDD withstand voltage/EVDD withstand voltage]: 5 to 25)
• Can be set to N-ch open drain, TTL input buffer, and on-chip pull-up resistor
• Different potential interface: Can connect to a 1.8/2.5/3 V device
• On-chip key interrupt function
• On-chip clock output/buzzer output controller
• Others
• On-chip BCD (binary-coded decimal) correction circuit
