TECH PUBLICDatasheet (PDF)

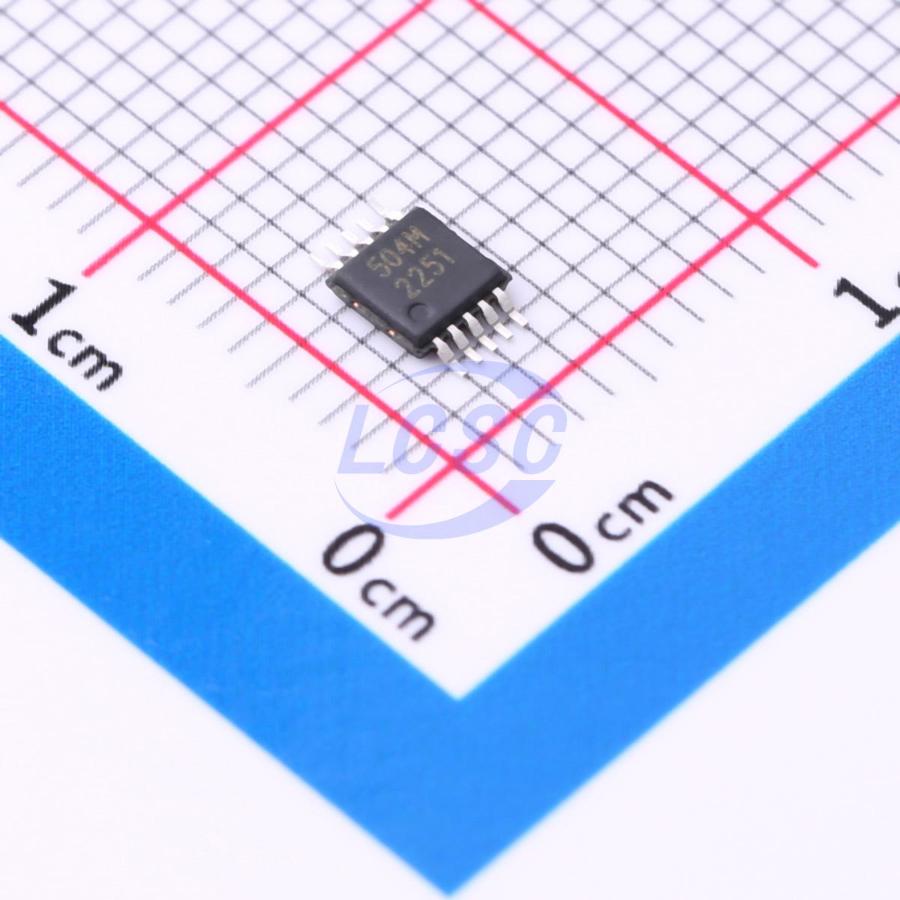

RCLAMP0504M
20VC Clamp ESD DIODE MSOP-10
MSOP-10RoHSActive
ESD DIODE 5VWM 20VC MSOP-10
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- RCLAMP0504M
- Store part #
- C5342382
- Package / case
- MSOP-10
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,975 in stock
#C5342382
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.19 | ₹145.95 |
| 50+ | ₹23.17 | ₹1,158.50 |
| 150+ | ₹20.59 | ₹3,088.50 |
| 500+ | ₹17.37 | ₹8,685.00 |
| 3,000+ | ₹14.82 | ₹44,460.00 |
| 6,000+ | ₹13.96 | ₹83,760.00 |
5 × ₹29.19
₹145.95
excl. GST
₹172.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RCLAMP0504M
₹145.95 for 5 + GST
Specifications
- Clamping Voltage
- 20V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 6V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.17 g
Overview
Applications
- DVI Ports
- HDMI Ports
- Set Top Box
- Projection TV
- Notebook Computers
- 10/100/1000 Ethernet
Key features
- Ultra low capacitance: 0.3pF(IO to 10)
- Ultralow leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- Protects one power line and four data lines
- Flow-through package
- Complies with following standards:
- IEC 61000 - 4 - 2(ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV
- IEC61000 - 4 - 4(EFT) 40A (5/50ns)
- IEC61000 - 4 - 5 (Lightning) 5A (8/20μs)
- RoHS Compliant
