TECH PUBLICDatasheet (PDF)

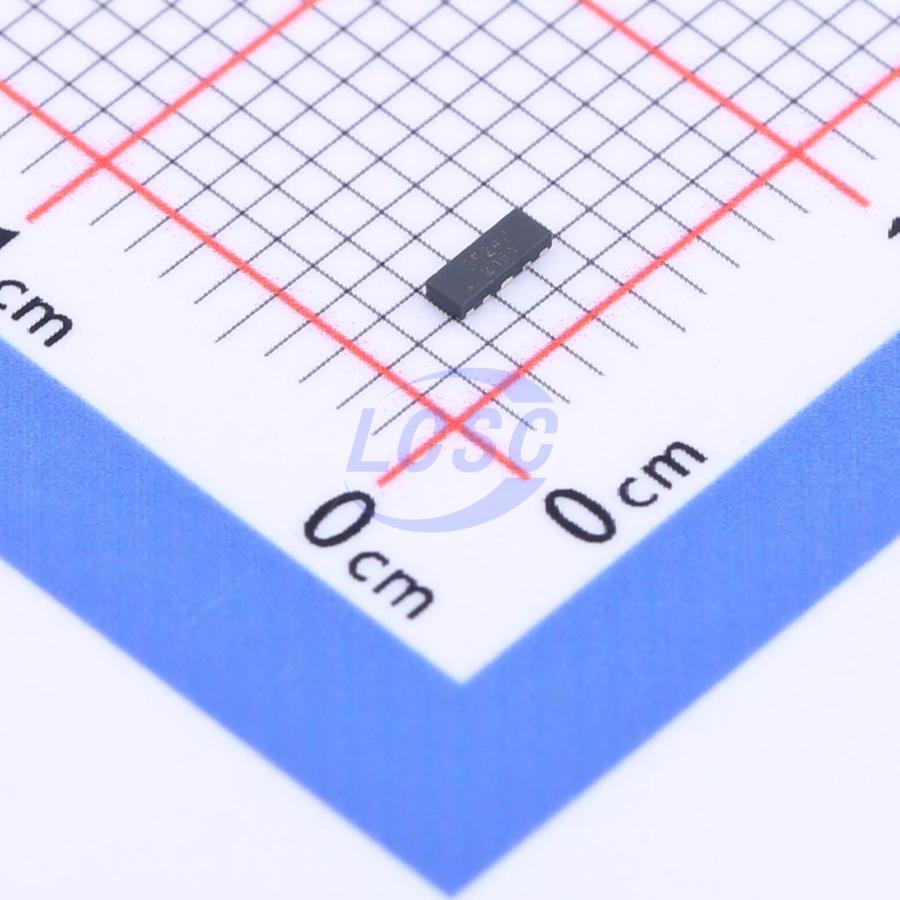

RCLAMP0524J
15VC Clamp 4.5A Ipp ESD DIODE DFN2710-8
DFN2710-8RoHSActive
ESD DIODE 5VWM 15VC DFN2710-8
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- RCLAMP0524J
- Store part #
- C2901326
- Package / case
- DFN2710-8
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,015 in stock
#C2901326
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.93 | ₹114.65 |
| 50+ | ₹18.50 | ₹925.00 |
| 150+ | ₹16.60 | ₹2,490.00 |
| 500+ | ₹14.24 | ₹7,120.00 |
| 3,000+ | ₹11.74 | ₹35,220.00 |
| 6,000+ | ₹11.10 | ₹66,600.00 |
5 × ₹22.93
₹114.65
excl. GST
₹135.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RCLAMP0524J
₹114.65 for 5 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4.5A
- Peak Pulse Power Dissipation (Ppp)
- 120W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 6V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
Applications
- HDMI
- DVI
- UDI
- MDDI
- PCI Express
- Serial ATA
Key features
- Ultra-low capacitance: 0.3pF typical (I/O to I/O)
- Ultra-low leakage current: nA level
- Low operating voltage: 5V
- Low clamping voltage
- Protects up to 4 data lines and 1 power line
- Compliant with the following standards:
- IEC 61000-4-2 (ESD) immunity test
- Air discharge: ±25kV
- Contact discharge: ±20kV
- IEC 61000-4-4 (EFT): 40A (5/50ns)
- IEC 61000-4-5 (Surge): 4.5A (8/20μs)
- RoHS compliant
