TECH PUBLICDatasheet (PDF)

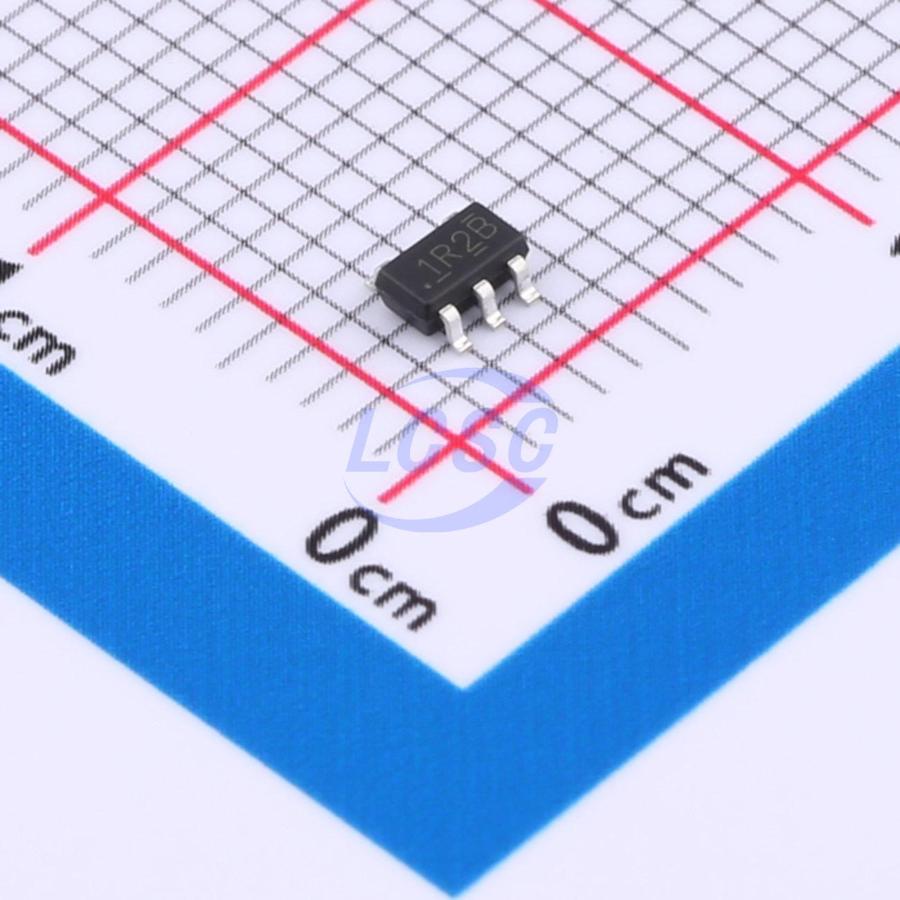

RCLAMP3354S
12VC Clamp 25A@8/20us Ipp SOT-23-5
SOT-23-5RoHSActive
3.3VWM 12VC SOT-23-5
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- RCLAMP3354S
- Store part #
- C7202971
- Package / case
- SOT-23-5
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,745 in stock
#C7202971
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.64 | ₹168.20 |
| 50+ | ₹26.42 | ₹1,321.00 |
| 150+ | ₹23.31 | ₹3,496.50 |
| 500+ | ₹19.45 | ₹9,725.00 |
| 3,000+ | ₹17.73 | ₹53,190.00 |
| 6,000+ | ₹16.70 | ₹1,00,200.00 |
5 × ₹33.64
₹168.20
excl. GST
₹198.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RCLAMP3354S
₹168.20 for 5 + GST
Specifications
- Clamping Voltage
- 12V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 25A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 450W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 3.5V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.21 g
Overview
Applications
- Ethernet Switches
- Access Points
- Gateways
- Printers
- DVR and NVR
Key features
- Ulitralow leakage: nA level
- Ultra low operating voltage: 3.3V
- Ultra low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30KV Contact discharge: ±30KV
- IEC61000-4-4 (EFT) 80A (5/50ns)
- IEC61000-4-5 (Lightning) 25A (8/20μs)
- RoHS Compliant
