HXY MOSFETDatasheet (PDF)

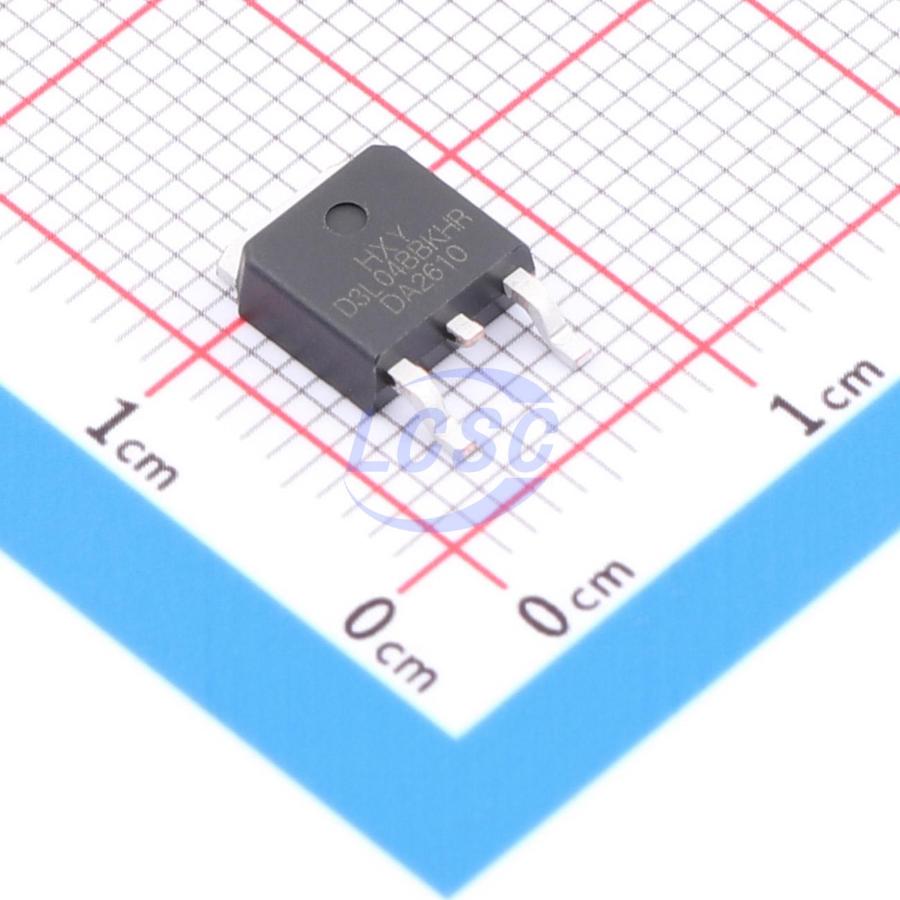

RD3L04BBKHRBTL-HXY
60V 50A 45W 11mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- RD3L04BBKHRBTL-HXY
- Store part #
- C54582495
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C54582495
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.56 | ₹83.56 |
| 10+ | ₹68.48 | ₹684.80 |
| 30+ | ₹61.16 | ₹1,834.80 |
| 100+ | ₹53.62 | ₹5,362.00 |
| 500+ | ₹43.94 | ₹21,970.00 |
| 1,000+ | ₹41.78 | ₹41,780.00 |
1 × ₹83.56
₹83.56
excl. GST
₹98.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RD3L04BBKHRBTL-HXY
₹83.56 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 145pF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 2.423nF
- Pd - Power Dissipation
- 45W
- Reverse Transfer Capacitance (Crss)
- 97pF
- RDS(on)
- 11mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 19.3nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.4 g
Overview
The RD3L04BBKHRBTL utilizes advanced trench technology to deliver excellent on-resistance (RDS(ON)), low gate charge, and operation at gate voltages as low as 4.5V. This device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- Drain-source voltage (VDS) = 60V, drain current (ID) = 50A
- On-resistance (RDS(ON)) < 15mΩ at VGS = 10V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRLR2905ZPBF-HXY#C20606222HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 160 | ₹49.53 · 160 in stock | View |
 | IRFR3806TRPBF-HXY#C20606223HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 5 | ₹48.87 · 5 in stock | View |
 | FDD5353-HXY#C22366410HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 15 | ₹30.19 · 15 in stock | View |
 | STN2610D-HXY#C22366411HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 20 | ₹25.08 · 20 in stock | View |
 | IPD30N06S2-15-HXY#C22366412HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 10 | ₹36.28 · 10 in stock | View |
