HXY MOSFETDatasheet (PDF)

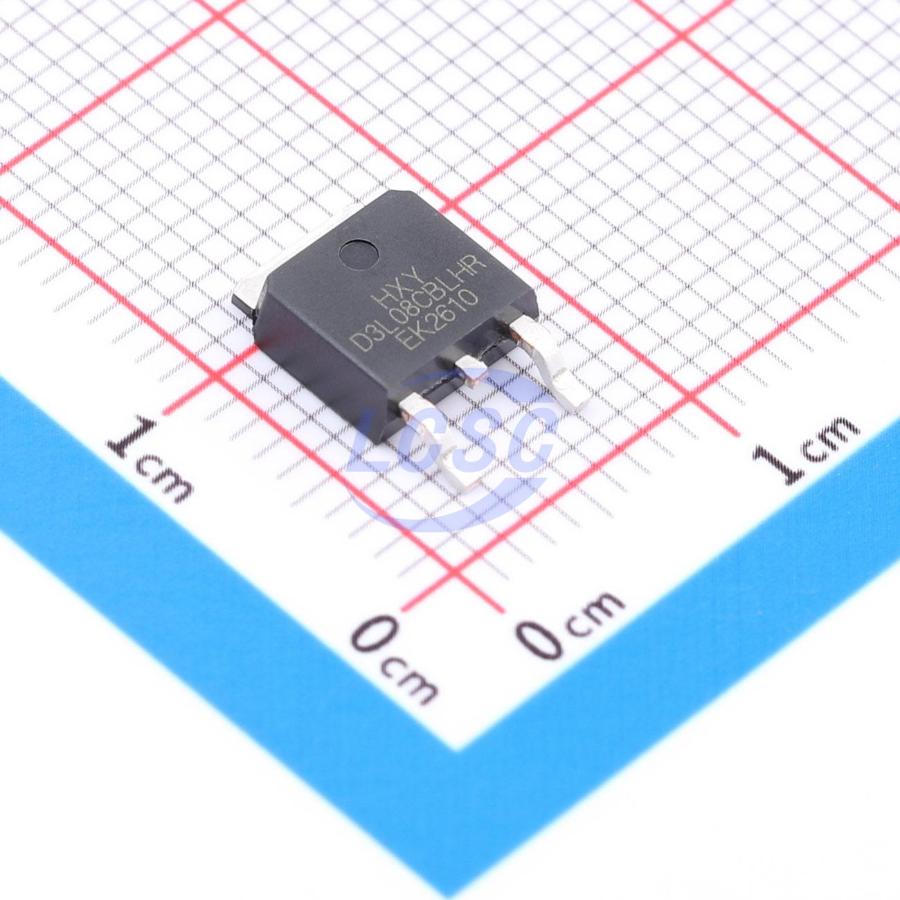

RD3L08CBLHRBTL-HXY
60V 120A 125W 4.5mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- RD3L08CBLHRBTL-HXY
- Store part #
- C54582742
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C54582742
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹176.12 | ₹176.12 |
| 10+ | ₹148.19 | ₹1,481.90 |
| 30+ | ₹132.95 | ₹3,988.50 |
| 100+ | ₹115.55 | ₹11,555.00 |
| 500+ | ₹108.04 | ₹54,020.00 |
| 1,000+ | ₹104.38 | ₹1,04,380.00 |
1 × ₹176.12
₹176.12
excl. GST
₹207.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RD3L08CBLHRBTL-HXY
₹176.12 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 472pF
- Current - Continuous Drain(Id)
- 120A
- Ciss-Input Capacitance
- 5.066nF
- Pd - Power Dissipation
- 125W
- Reverse Transfer Capacitance (Crss)
- 283pF
- RDS(on)
- 4.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 98nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.402 g
Overview
RD3L08CBLHRBTL is suitable for various power switching circuits, enabling system miniaturization and higher efficiency. Available in TO-252-2L package, RoHS compliant.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- Drain-to-source voltage (VDS) = 60V, drain current (ID) = 120A
- On-state resistance (RDS(ON)) < 5.9mΩ at VGS = 10V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STD130N6F7-HXY#C54582732HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 49 | ₹130.51 · 49 in stock | View |
 | DMTH6005LK3-13-HXY#C54582734HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 43 | ₹111.86 · 43 in stock | View |
 | DMTH6005LK3Q-13-HXY#C54582737HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 31 | ₹92.36 · 31 in stock | View |
 | IPD053N06NATMA1-HXY#C54582738HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 27 | ₹145.73 · 27 in stock | View |
 | IPD90N06S405ATMA2-HXY#C54582740HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 49 | ₹163.87 · 49 in stock | View |
