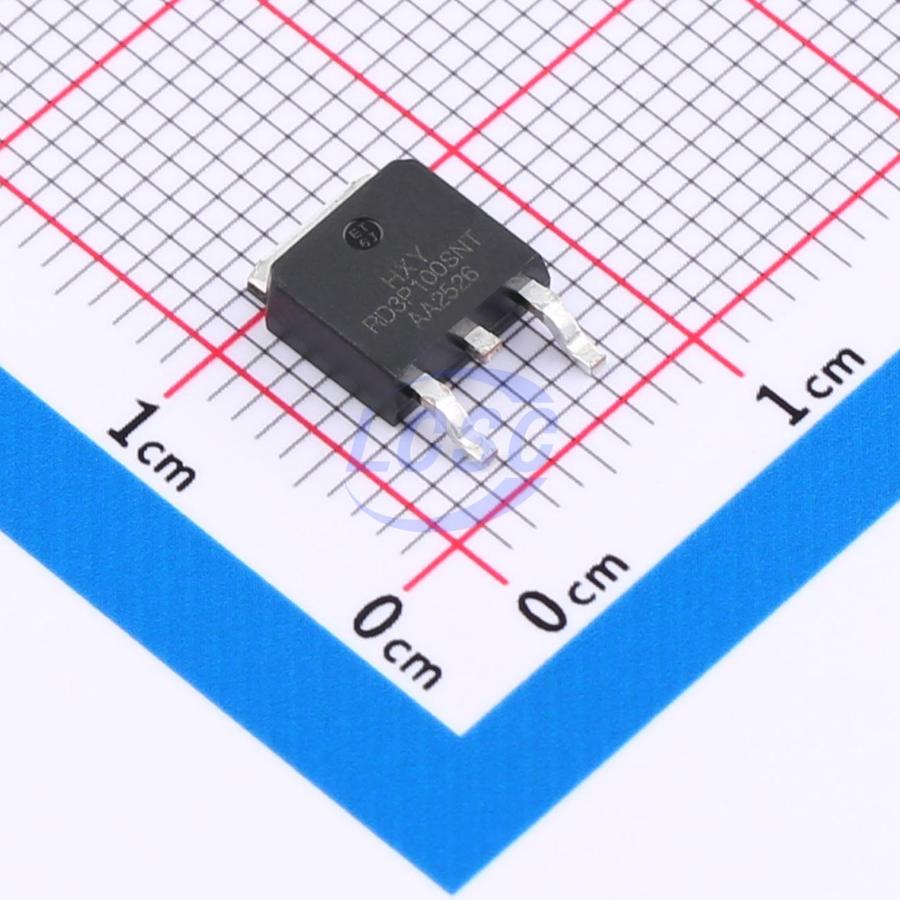

RD3P100SNTL1-HXY
100V 12A 17W 95mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
MOSFET N-CH 100V 15A TO-252-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- RD3P100SNTL1-HXY
- Store part #
- C49420480
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
97 in stock
#C49420480
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹87.08 | ₹87.08 |
| 10+ | ₹73.04 | ₹730.40 |
| 30+ | ₹66.12 | ₹1,983.60 |
| 100+ | ₹59.20 | ₹5,920.00 |
| 500+ | ₹49.06 | ₹24,530.00 |
| 1,000+ | ₹46.89 | ₹46,890.00 |
1 × ₹87.08
₹87.08
excl. GST
₹102.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RD3P100SNTL1-HXY
₹87.08 for 1 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 25.9pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 196pF
- Pd - Power Dissipation
- 17W
- Reverse Transfer Capacitance (Crss)
- 21.4pF
- RDS(on)
- 95mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 4.3nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.371 g
