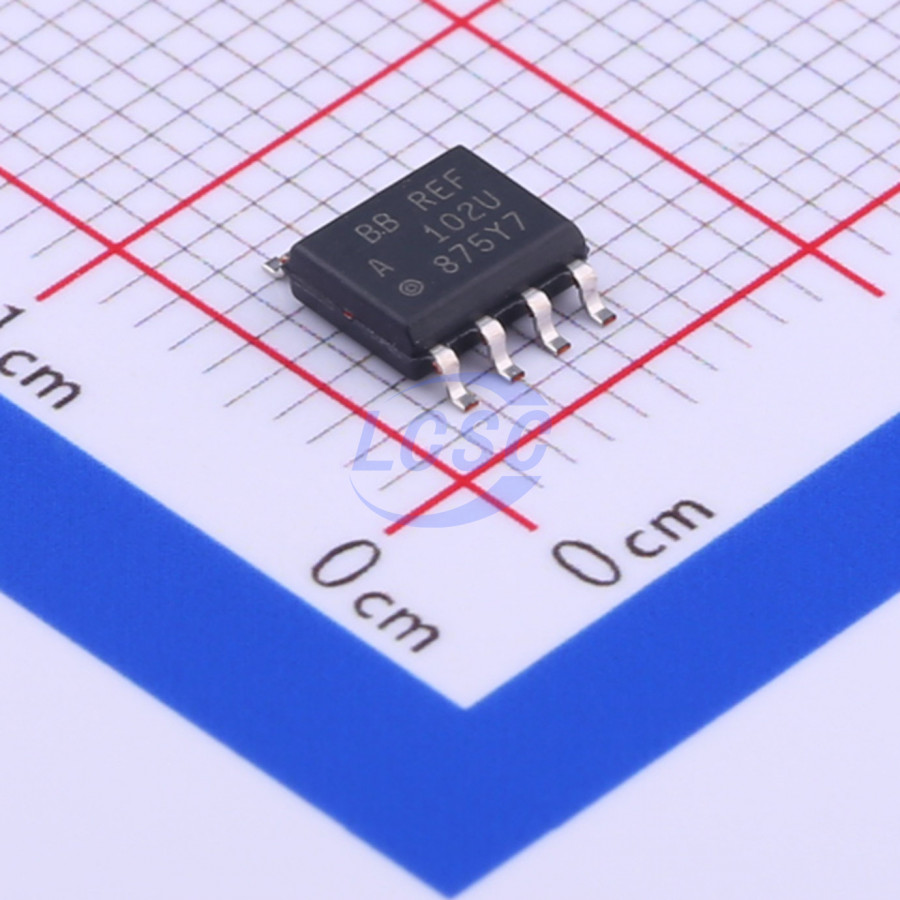

REF102AU/2K5
10V ±0.1% 11.4V~36V 10mA Fixed SOIC-8 Voltage Reference RoHS
SOIC-8ROHS3 CompliantActive
10V Precision Voltage Reference
- Manufacturer
- TI
- Manufacturer part #
- REF102AU/2K5
- Store part #
- C81460
- Package / case
- SOIC-8
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,731 in stock
#C81460
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹807.08 | ₹807.08 |
| 10+ | ₹725.61 | ₹7,256.10 |
| 30+ | ₹668.26 | ₹20,047.80 |
| 100+ | ₹619.38 | ₹61,938.00 |
| 500+ | ₹596.79 | ₹2,98,395.00 |
| 1,000+ | ₹586.58 | ₹5,86,580.00 |
1 × ₹807.08
₹807.08
excl. GST
₹952.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
REF102AU/2K5
₹807.08 for 1 + GST
Specifications
- Output Voltage
- 10V
- Quiescent Current
- 1.4mA
- Tolerance
- ±0.1%
- Voltage - Supply
- 11.4V~36V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 5uVp-p
- Output Current
- 10mA
- Operating Temperature
- -25℃~+85℃
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.188 g
Overview
The REF102 is a precision 10V voltage reference. The drift is laser-trimmed to 2.5ppm/°C max C-grade over the industrial temperature range. The REF102 achieves its precision without a heater. This results in low power, fast warm-up, excellent stability, and low noise. The output voltage is extremely insensitive to both line and load variations and can be externally adjusted with minimal effect on drift and stability. Single-supply operation from 11.4V to 36V and excellent overall specifications make the REF102 an ideal choice for demanding instrumentation and system reference applications.
Applications
- PRECISION-CALIBRATED VOLTAGE STANDARD
- D/A AND A/D CONVERTER REFERENCE
- PRECISION CURRENT REFERENCE
- ACCURATE COMPARATOR THRESHOLD REFERENCE
- DIGITAL VOLTMETER
- TEST EQUIPMENT
- PC-BASED INSTRUMENTATION
Key features
- +10V ±0.0025V OUTPUT
- VERY LOW DRIFT: 2.5ppm/°C max
- EXCELLENT STABILITY: 5ppm/1000hr typ
- EXCELLENT LINE REGULATION: 1ppm/V max
- EXCELLENT LOAD REGULATION: 10ppm/mA max
- LOW NOISE: 5μVpp typ, 0.1Hz to 10Hz
- WIDE SUPPLY RANGE: 11.4VDC to 36VDC
- LOW QUIESCENT CURRENT: 1.4mA max
- PACKAGE OPTIONS: PLASTIC DIP, SO-8
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | REF102AU#C183082TI · SOIC-8-150mil | TI | SOIC-8-150mil | 106 | ₹833.00 · 106 in stock | View |
 | ADR01ARZ-REEL7#C49485ADI · SOIC-8 | ADI | SOIC-8 | 1,533 | ₹748.01 · 1,533 in stock | View |
 | ADR01ARZ#C659460ADI · SOIC-8 | ADI | SOIC-8 | 68 | ₹703.61 · 68 in stock | View |
 | GM7400BRZ-10-R7#C41433519GONGMOSEMI · SO-8 | GONGMOSEMI | SO-8 | 575 | ₹230.14 · 575 in stock | View |
 | REF102CU#C181311TI · SOIC-8 | TI | SOIC-8 | 84 | ₹1,559.76 · 84 in stock | View |
