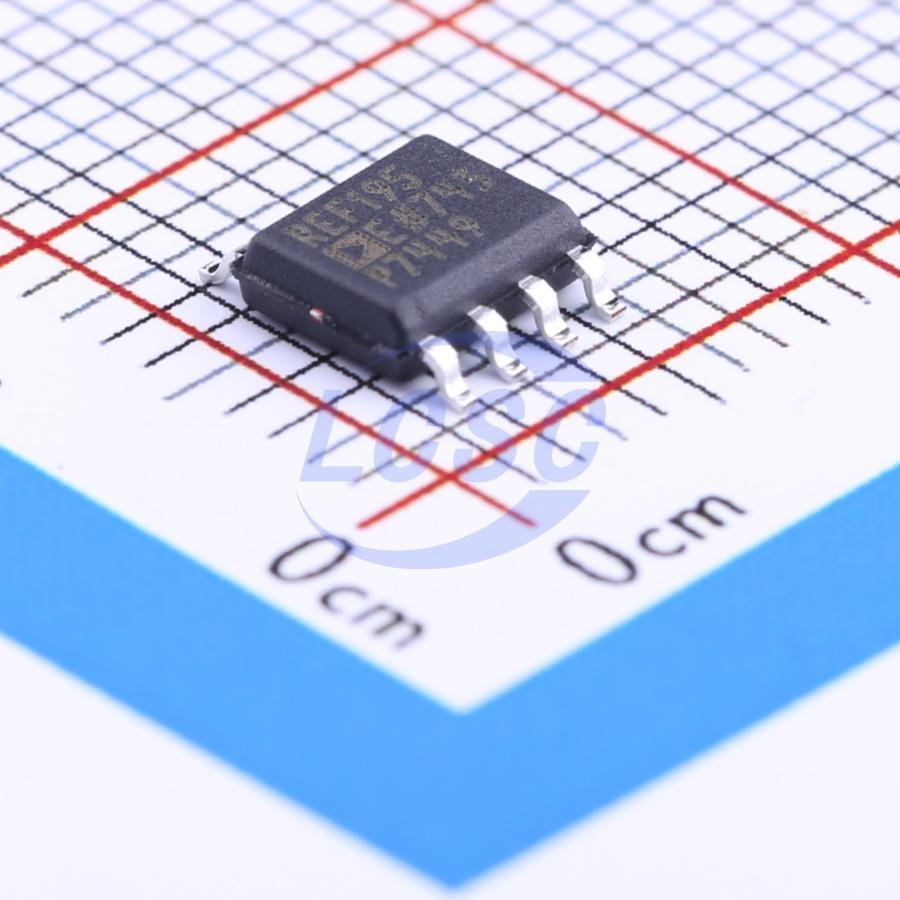

REF195ESZ-REEL
5V ±0.04% 5.1V~15V 30mA Fixed SOIC-8 Voltage Reference RoHS
SOIC-8ROHS3 CompliantActive
Precision Micropower, Low Dropout Voltage References
- Manufacturer
- ADI
- Manufacturer part #
- REF195ESZ-REEL
- Store part #
- C31180
- Package / case
- SOIC-8
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,429 in stock
#C31180
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹921.06 | ₹921.06 |
| 10+ | ₹888.50 | ₹8,885.00 |
| 30+ | ₹796.70 | ₹23,901.00 |
| 100+ | ₹779.99 | ₹77,999.00 |
1 × ₹921.06
₹921.06
excl. GST
₹1,086.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
REF195ESZ-REEL
₹921.06 for 1 + GST
Specifications
- Output Voltage
- 5V
- Quiescent Current
- 45uA
- Tolerance
- ±0.04%
- Voltage - Supply
- 5.1V~15V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 50uVp-p
- Output Current
- 30mA
- Operating Temperature
- -40℃~+85℃
- Features
- Low-power standby
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
Overview
The REF19x series precision band gap voltage references use a patented temperature drift curvature correction circuit and laser trimming of highly stable, thin- film resistors to achieve a very low temperature coefficient and high initial accuracy. The REF19x series is made up of micropower, low dropout voltage (LDV) devices, providing stable output voltage from supplies as low as 100mV above the output voltage and consuming less than 45μA of supply current. In sleep mode, which is enabled by applying a low TTL or CMOS level to the SLEEP pin, the output is turned off and supply current is further reduced to less than 15μA The REF19x series references are specified over the extended industrial temperature range (- 40°C to +85°C with typical performance specifications over - 40°C to +125°C for applications, such as automotive. All electrical grades are available in an 8- lead SOIC package; the PDIP and TSSOP packages are available only in the lowest electrical grade.
Applications
- Portable instruments
- ADCs and DACs
- Smart sensors
- Solar powered applications
- Loop- current- powered instruments
Key features
- Temperature coefficient: 5 ppm/°C maximum
- High output current: 30 mA
- Low supply current: 45 μA maximum
- Initial accuracy: ±2 mV maximum
- Sleep mode: 15 μA maximum
- Low dropout voltage
- Load regulation: 4 ppm/mA
- Line regulation: 4 ppm/V
- Short- circuit protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | REF195ESZ#C581301ADI · SOIC-8 | ADI | SOIC-8 | 42 | ₹1,303.25 · 42 in stock | View |
 | REF195GSZ-REEL7#C32818ADI · SOIC-8 | ADI | SOIC-8 | 1,461 | ₹638.16 · 1,461 in stock | View |
 | REF195GSZ#C581305ADI · SOIC-8 | ADI | SOIC-8 | 80 | ₹722.45 · 80 in stock | View |
 | ADR4550ARZ#C1575342ADI · SOIC-8 | ADI | SOIC-8 | 5 | ₹1,295.97 · 5 in stock | View |
 | ADR4550ARZ-R7#C404004ADI · SOIC-8 | ADI | SOIC-8 | 163 | ₹1,133.60 · 163 in stock | View |
