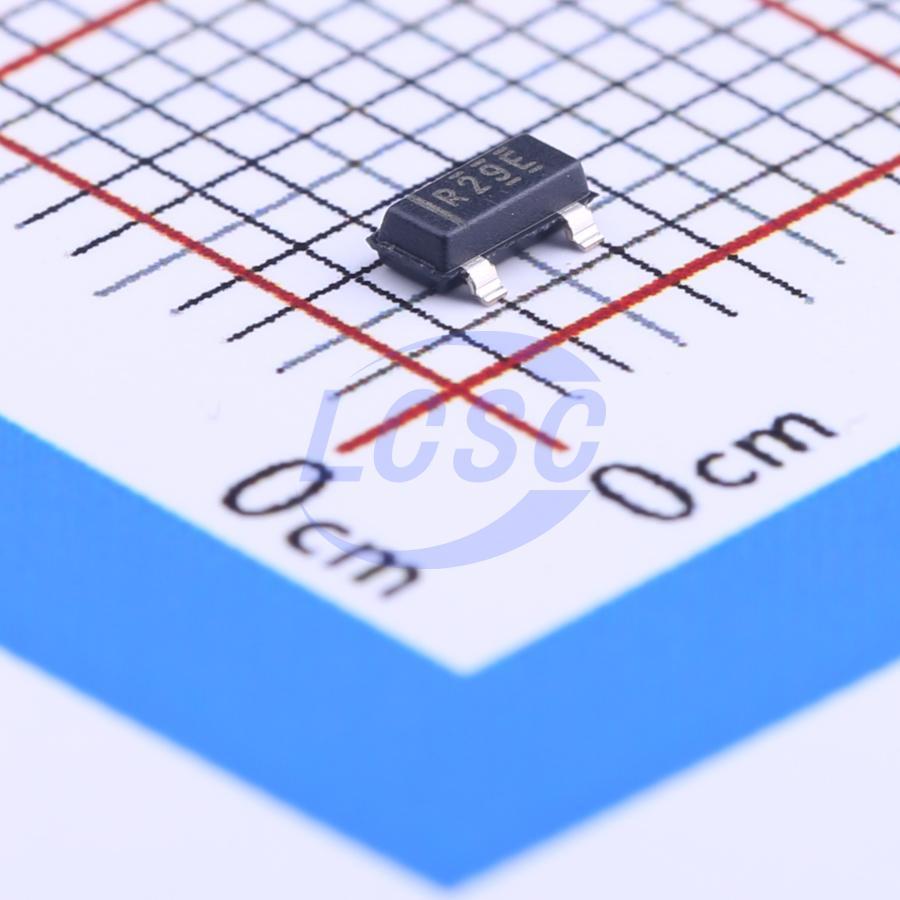

REF2933AIDBZR
3.3V ±2% 3.35V~5.5V 25mA Fixed SOT-23 Voltage Reference RoHS
SOT-23ROHS3 CompliantActive
CMOS Voltage Reference
- Manufacturer
- TI
- Manufacturer part #
- REF2933AIDBZR
- Store part #
- C83174
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,764 in stock
#C83174
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹142.09 | ₹142.09 |
| 10+ | ₹115.15 | ₹1,151.50 |
| 30+ | ₹101.90 | ₹3,057.00 |
| 100+ | ₹88.65 | ₹8,865.00 |
| 500+ | ₹72.13 | ₹36,065.00 |
| 1,000+ | ₹68.00 | ₹68,000.00 |
1 × ₹142.09
₹142.09
excl. GST
₹167.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
REF2933AIDBZR
₹142.09 for 1 + GST
Specifications
- Quiescent Current
- 59uA
- Output Voltage
- 3.3V
- Tolerance
- ±2%
- Voltage - Supply
- 3.35V~5.5V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 36uVp-p
- Output Current
- 25mA
- Operating Temperature
- -40℃~+125℃
- Noise - 10Hz to 10kHz
- 105uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
The REF29xx is a precision, low-power, low-voltage dropout voltage reference family available in a tiny 3‑pin SOT-23 package. The small size and low power consumption (50 µA maximum) of the REF29xx make it ideal for portable and battery-powered applications. The REF29xx does not require a load capacitor, but it is stable with any capacitive load.
Applications
- Portable, Battery-Powered Equipment
- Data Acquisition Systems
- Medical Equipment
- Hand-Held Test Equipment
Key features
- MicroSIZE Package: SOT-23
- Low Dropout: 1 mV
- High Output Current: 25 mA
- Low Temperature Drift: Maximum of 100 ppm/°C
- High Accuracy: 2%
- Low IQ: Maximum of 50 µA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | REF2933AIDBZT#C127916TI · SOT-23 | TI | SOT-23 | 122 | ₹210.36 · 122 in stock | View |
| REF2930AIDBZT#C2872905TI · SOT-23-3 | TI | SOT-23-3 | 34 | ₹160.23 · 34 in stock | View | |
 | REF2930AIDBZR#C83179TI · SOT-23 | TI | SOT-23 | 18,387 | ₹129.22 · 18,387 in stock | View |
 | REF3033AIDBZR#C36658TI · SOT-23 | TI | SOT-23 | 25,628 | ₹60.47 · 25,628 in stock | View |
 | REF3033AIDBZT#C2872391TI · SOT-23-3 | TI | SOT-23-3 | 4,584 | ₹80.44 · 4,584 in stock | View |
