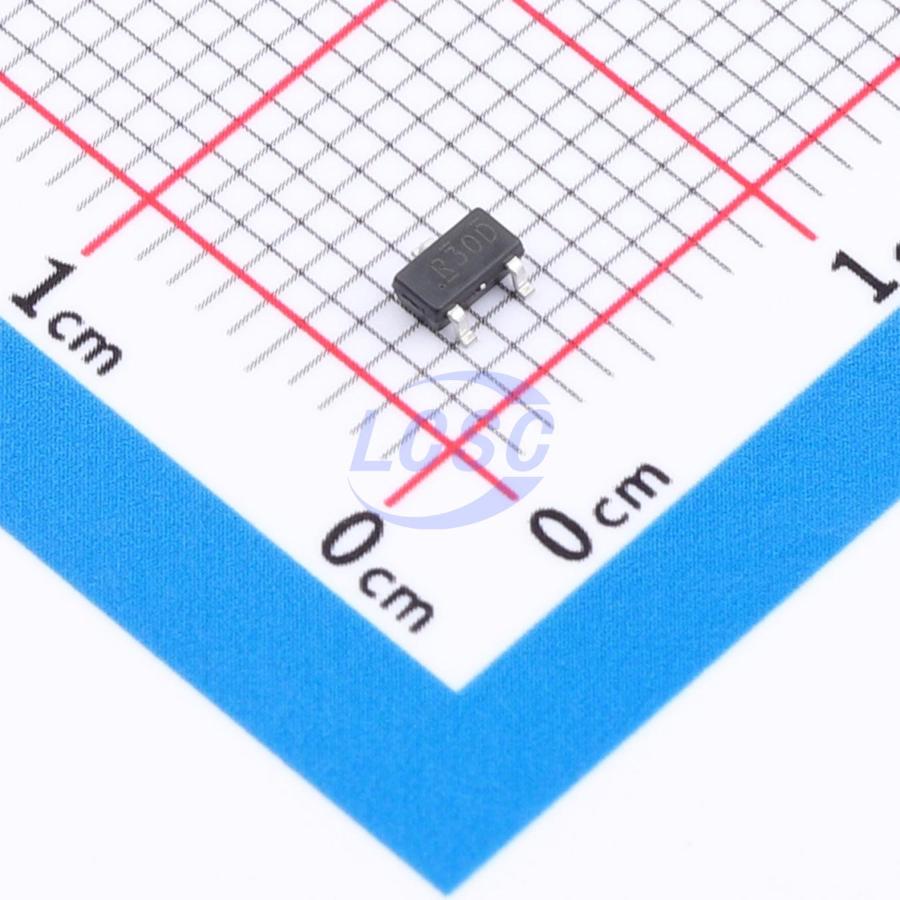

REF3033AIM3/TR

The REF30xx series are low temperature drift (30 ppm/°C max), low power, high precision CMOS voltage references with ±0.15% initial accuracy and low operating current with power consumption below 500 μA. These devices also provide very low output noise of 15 μVₚ₋ₚ/V, enabling them to work alongside high-resolution data converters in noise-sensitive systems while maintaining high signal integrity. Using the same SOT-23-3 package, the REF30xx offers enhanced specifications and pin-to-pin replacement for the REF30xx and LM4132. Low output voltage hysteresis and low long-term output voltage drift further improve stability and system reliability. The REF30xx operates over a wide temperature range of -40°C to +125°C.

Applications

• Data acquisition systems
• PLC analog input/output modules
• Field transmitters
• Motor drive control modules
• Battery test equipment

Key features

• Voltage options: 1.25 V, 2.048 V, 2.5 V, 3.0 V, 3.3 V, 4.096 V
• Initial accuracy: ±0.15% (max)
• Low tempco: 30 ppm/℃ (max)
• Output 1/f noise (0.1 to 10 Hz): 20 μVₚ₋ₚ/V
• Supply voltage: 2.7 to 5.5 V
• Power consumption: < 500 μA
• Start-up time: < 400 μs
• Operating temperature: -40℃ to 125℃
• Output current: ±5 mA
