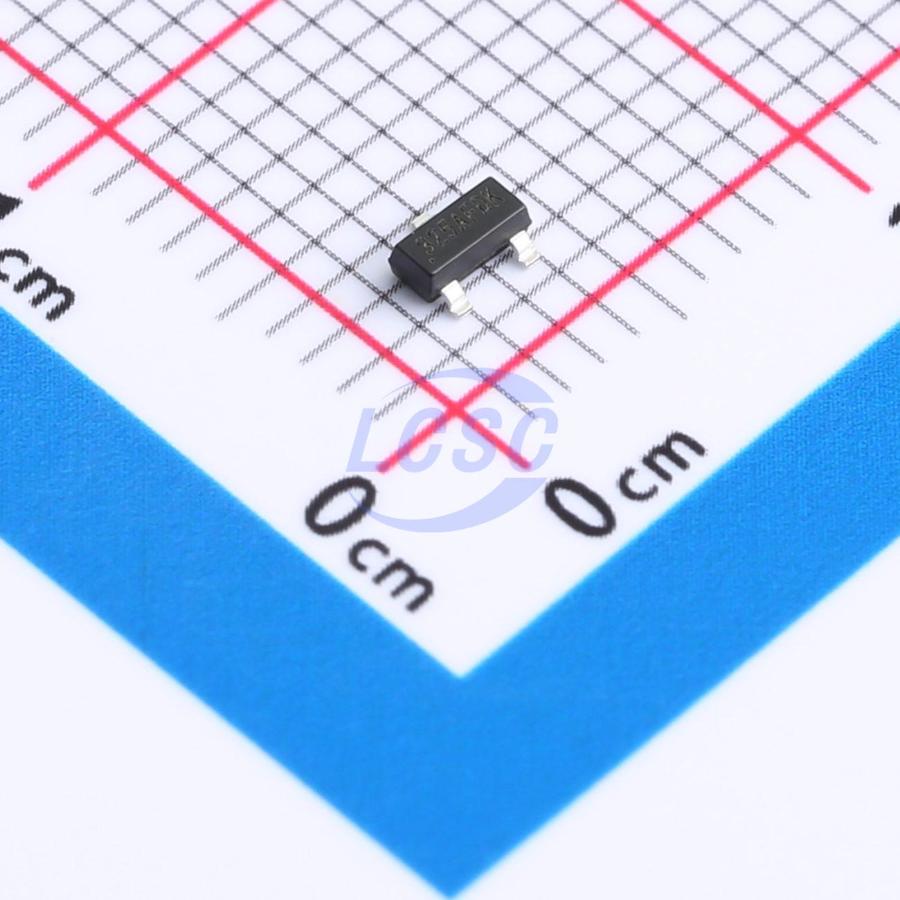

REF325SOT233
Voltage Reference IC 2.5V ±0.1% 25mA SOT-23-3
SOT-23-3RoHSActive
Low-power, precision, low-dropout voltage reference
- Manufacturer
- analogysemi
- Manufacturer part #
- REF325SOT233
- Store part #
- C19078488
- Package / case
- SOT-23-3
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,110 in stock
#C19078488
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹135.08 | ₹135.08 |
| 10+ | ₹108.19 | ₹1,081.90 |
| 30+ | ₹94.96 | ₹2,848.80 |
| 100+ | ₹81.52 | ₹8,152.00 |
| 500+ | ₹76.76 | ₹38,380.00 |
| 1,000+ | ₹72.65 | ₹72,650.00 |
1 × ₹135.08
₹135.08
excl. GST
₹159.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
REF325SOT233
₹135.08 for 1 + GST
Specifications
- Quiescent Current
- 60uA
- Output Voltage
- 2.5V
- Tolerance
- ±0.1%
- Voltage - Supply
- 2.52V~5.5V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 28uVp-p
- Output Current
- 25mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Fixed
- Noise - 10Hz to 10kHz
- 36uVrms
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.057 g
Overview
REF3xx is a low-power, precision, low-dropout voltage reference family in a SOT23-3 package. The small size and low power consumption make REF3xx ideal for a wide variety of portable and battery-powered applications. Under normal load conditions, REF3xx can operate with a supply voltage as low as 2mV above the specified output voltage, except for REF312, which has a minimum supply voltage of 1.8V. All versions are specified over the wide temperature range of −40°C to 125°C.
Applications
- Portable devices
- Tablets and smartphones
- Hard disk drives
- Sensor modules
- Data acquisition systems
- Medical equipment
- Test equipment
Key features
- Compact package: SOT23-3
- AEC-Q100 (REF3xxQ only)
- Low supply current: 60μA (typical)
- Ultra-low dropout: 2mV (typical)
- High output current: ±25mA
- Low temperature drift: 20ppm/°C (maximum)
- High initial accuracy: ±0.1% (maximum)
- 0.1Hz to 10Hz noise: 20μVₚ₋ₚ (REF318)
- Voltage options: 1.25V, 1.8V, 2.048V, 2.5V, 3V, 3.3V, 4.096V, 4.5V, 5V
