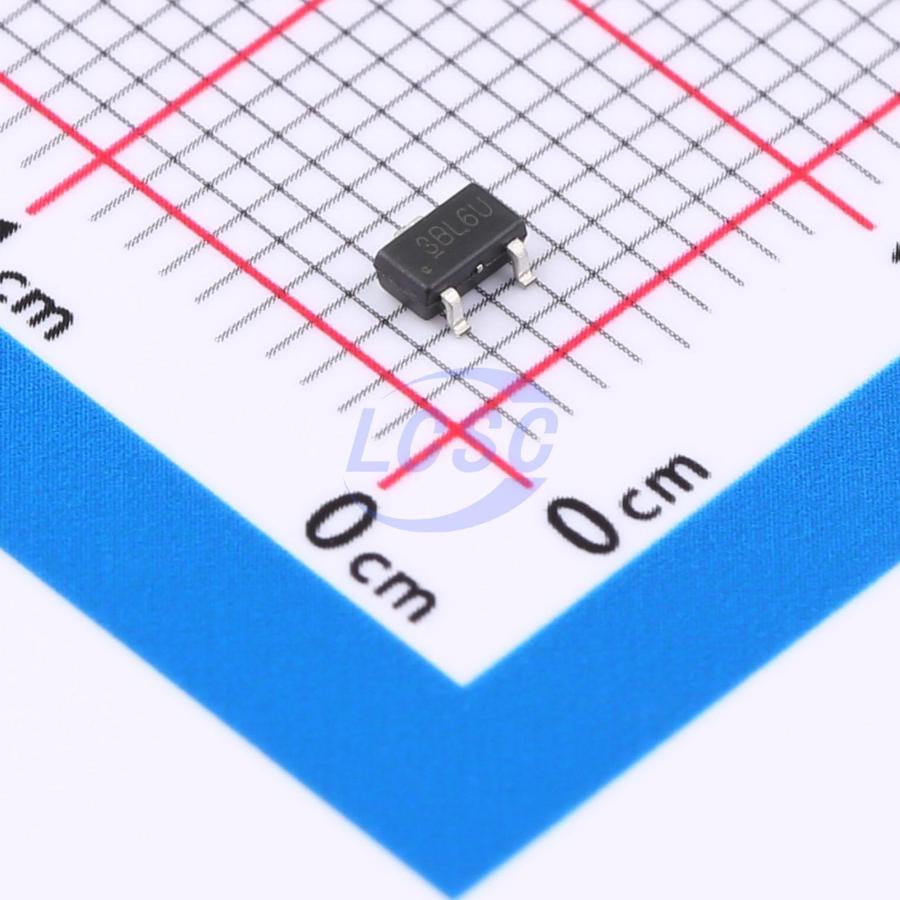

REF3312AIDBZR(TOKMAS)
Series Voltage Reference IC Fixed 1.25V ±0.1% 5mA SOT-23-3
SOT-23-3ROHS CompliantActive
Low-Drift, Low-Power, Small-Footprint Voltage Reference
- Manufacturer
- Tokmas
- Manufacturer part #
- REF3312AIDBZR(TOKMAS)
- Store part #
- C48586490
- Package / case
- SOT-23-3
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,636 in stock
#C48586490
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹39.77 | ₹39.77 |
| 10+ | ₹34.35 | ₹343.50 |
| 30+ | ₹31.95 | ₹958.50 |
| 100+ | ₹29.12 | ₹2,912.00 |
| 500+ | ₹28.26 | ₹14,130.00 |
| 1,000+ | ₹27.39 | ₹27,390.00 |
1 × ₹39.77
₹39.77
excl. GST
₹46.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
REF3312AIDBZR(TOKMAS)
₹39.77 for 1 + GST
Specifications
- Output Voltage
- 1.25V
- Quiescent Current
- 300uA
- Tolerance
- ±0.1%
- Voltage - Supply
- 2.7V~5.5V
- Reference Type
- Series
- Output Current
- 5mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
Applications
- Data Acquisition
- PLC Analog I/O Modules
- Field Transmitters
- Motor Drive Control Modules
- Battery Test Equipment
Key features
- Voltage options: 1.25 V, 2.048 V, 2.5 V, 3.0 V, 3.3 V, 4.096 V
- Initial accuracy: ±0.1% (max)
- Low temperature coefficient: 20 ppm/°C (max)
- 0.1 to 10 Hz output 1/f noise: 15 μVₚ₋ₚ
- Supply voltage: 2.7 to 5.5 V
- Power consumption: < 500 μA
- Start-up time: < 400 μs
- Operating temperature: -40 to 125°C
- Output current: ±5 mA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | REF3112AIDBZR(TOKMAS)#C48586491Tokmas · SOT-23-3 | Tokmas | SOT-23-3 | On request | Price on request | Quote |
