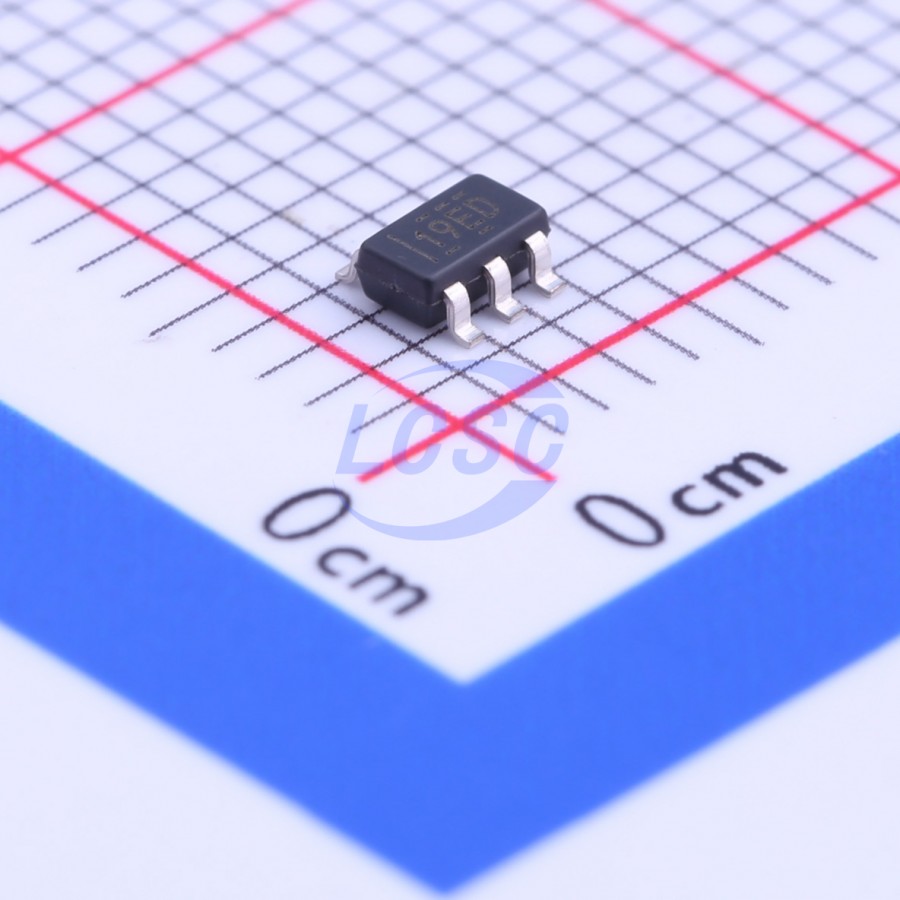

REF3425IDBVR
Series Voltage Reference IC Fixed 2.5V ±0.05% 10mA SOT-23-6
SOT-23-6ROHS3 CompliantActive
Low Temperature Drift, Low Power Consumption, Small-Size Series Voltage Reference
- Manufacturer
- TI
- Manufacturer part #
- REF3425IDBVR
- Store part #
- C187836
- Package / case
- SOT-23-6
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25,682 in stock
#C187836
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹142.96 | ₹142.96 |
| 10+ | ₹116.24 | ₹1,162.40 |
| 30+ | ₹102.98 | ₹3,089.40 |
| 100+ | ₹89.51 | ₹8,951.00 |
| 500+ | ₹81.70 | ₹40,850.00 |
| 1,000+ | ₹77.57 | ₹77,570.00 |
1 × ₹142.96
₹142.96
excl. GST
₹168.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
REF3425IDBVR
₹142.96 for 1 + GST
Specifications
- Quiescent Current
- 95uA
- Output Voltage
- 2.5V
- Tolerance
- ±0.05%
- Voltage - Supply
- 2.55V~12V
- Reference Type
- Series
- Output Current
- 10mA
- Operating Temperature
- -40℃~+125℃
- Features
- Enable/disable
- Noise - 10Hz to 10kHz
- 24uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.057 g
Overview
The REF34xx devices are low-drift (6 ppm/°C), low-power, high-precision CMOS voltage references featuring ±0.05% initial accuracy, low operating current, and power consumption of less than 95μA. The devices also provide ultralow output noise of 5μVp-p/V, which maintains high signal integrity when used with high-resolution data converters in noise-sensitive systems. The REF34xx comes in a compact SOT-23 package with improved specifications and offers pin-to-pin replacement for MAX607x and ADR34xx. The REF34xx series is compatible with most ADCs and DACs, such as the ADS1287, ADUCM360, and ADS1112. The device's low output voltage hysteresis and low long-term output voltage drift further enhance stability and system reliability. In addition, the device's small size and low operating current (95μA) make it ideal for portable and battery-powered applications where low power consumption is a critical concern. The REF34xx is rated for an extended temperature range of -40°C to +125°C.
Applications
- Precision data acquisition systems
- PLC analog I/O module field transmitters
- Portable, battery-powered devices
- Industrial instrumentation
- Test equipment
- Power monitoring LCR meters
Key features
- Initial accuracy: ±0.05% (maximum)
- Temperature coefficient: 6 ppm/°C (maximum)
- Operating temperature range: -40°C to +125°C
- Output current: ±10 mA
- Low quiescent current: 95μA (maximum)
- Wide input voltage: 12V
- Output 1/f noise (0.1Hz to 10Hz): 5μVPP/V
- Excellent long-term stability (30ppm/1000 hours)
- Compact 6-pin SOT-23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | REF3425MDBVTEP#C2157007TI · SOT-23-6 | TI | SOT-23-6 | 3 | ₹883.09 · 3 in stock | View |
