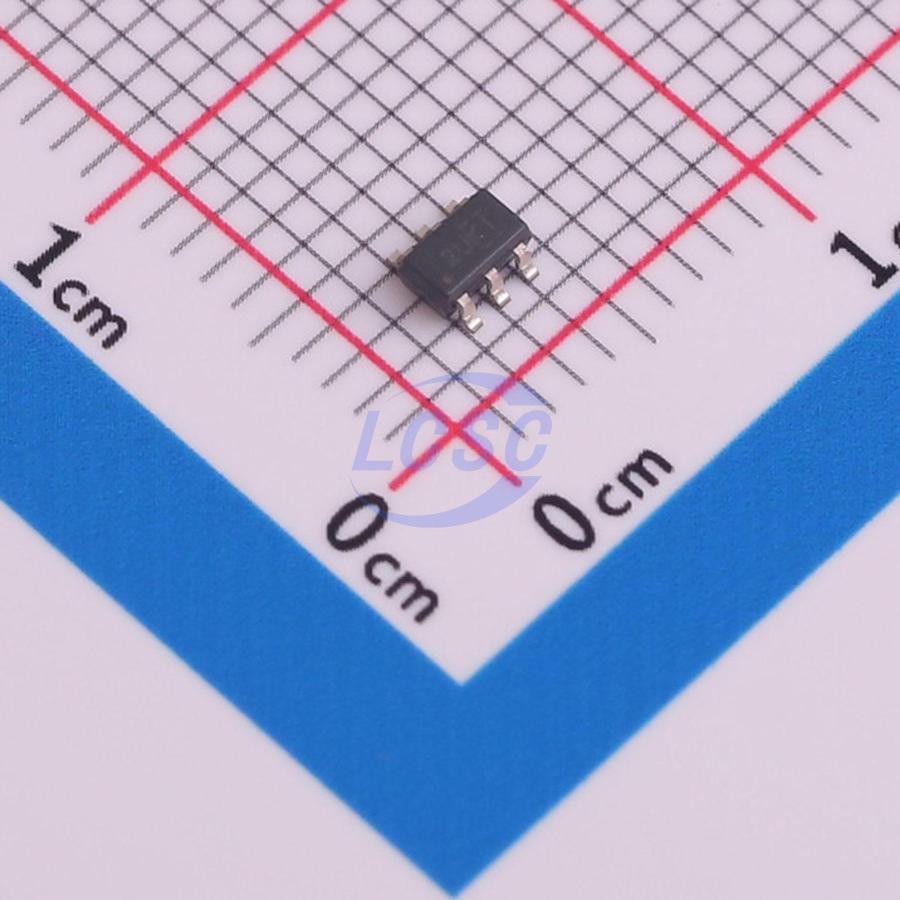

REF35205QDBVR
Series Voltage Reference IC Fixed 2.048V ±0.05% 10mA SOT-23-6
SOT-23-6ROHS3 CompliantActive
IC VREF SERIES FIXED ±0.05% SOT-23-6
- Manufacturer
- TI
- Manufacturer part #
- REF35205QDBVR
- Store part #
- C6966710
- Package / case
- SOT-23-6
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,019 in stock
#C6966710
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹255.91 | ₹255.91 |
| 10+ | ₹230.22 | ₹2,302.20 |
| 30+ | ₹212.08 | ₹6,362.40 |
| 100+ | ₹195.45 | ₹19,545.00 |
| 500+ | ₹187.88 | ₹93,940.00 |
| 1,000+ | ₹184.86 | ₹1,84,860.00 |
1 × ₹255.91
₹255.91
excl. GST
₹301.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
REF35205QDBVR
₹255.91 for 1 + GST
Specifications
- Quiescent Current
- 2.6uA
- Output Voltage
- 2.048V
- Tolerance
- ±0.05%
- Voltage - Supply
- 2.298V~6V
- Reference Type
- Series
- Output Current
- 10mA
- Operating Temperature
- -40℃~+125℃@(Ta)
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.057 g
Overview
The REF35 is a family of micropower, low-drift, high-precision series voltage reference devices. The REF35 series offers an initial accuracy of ±0.05% with a typical supply current of 650nA. The device's temperature coefficient (12ppm/°C) and long-term stability (40ppm over 1000 hours) contribute to improved system stability and reliability. The combination of low power consumption and high accuracy specifications makes it suitable for a wide range of portable and low-current applications. The REF35 can source up to 10mA with noise of 3.3ppmₚ₋ₚ and a load regulation of 20ppm/mA. With these characteristics, the REF35 provides a robust low-noise, high-precision supply for precision sensors and 12- to 16-bit data converters. The device family operates over a temperature range of -40°C to 105°C and remains functional from -55°C to 125°C. The wide temperature range makes it suitable for industrial applications. The REF35 is available in multiple output voltage options from 1.024V to 5.0V. The device is offered in space-saving 6-pin SOT-23 and 4-pin WCSP package options. For available voltage and package options, contact your local Texas Instruments sales representative.
Applications
- Flow transmitter
- Blood glucose monitor
- Servo drive control module
- Power quality analyzer
- Fault indicator
- Oscilloscope
- Process analysis
- Optical module
Key features
- Ultra-low quiescent current: 650nA (typical)
- Initial accuracy: ±0.05% (maximum)
- Temperature coefficient (maximum):
- 12ppm/°C (-40°C to 105°C, SOT23 package)
- 10ppm/°C (-40°C to 85°C, WCSP package)
- Output 1/f noise (0.1Hz to 10Hz): 3.3ppmₚ₋ₚ
- NR pin for noise reduction
- EN pin for reduced shutdown current consumption
- Long-term stability: 40ppm over 1000 hours
- Hysteresis: 70ppm
- Operating temperature range: -55°C to +125°C
- Output current: +10mA, -5mA
- Input voltage: V_REF + V_DO to 6V
- Output voltage options: 1.024V, 1.2V, 1.25V, 1.6V, 1.8V, 2.048V, 2.5V, 3.0V, 3.3V, 4.096V, 5.0V
- Compact 6-pin SOT-23 package
- Ultra-compact 4-pin WCSP package
