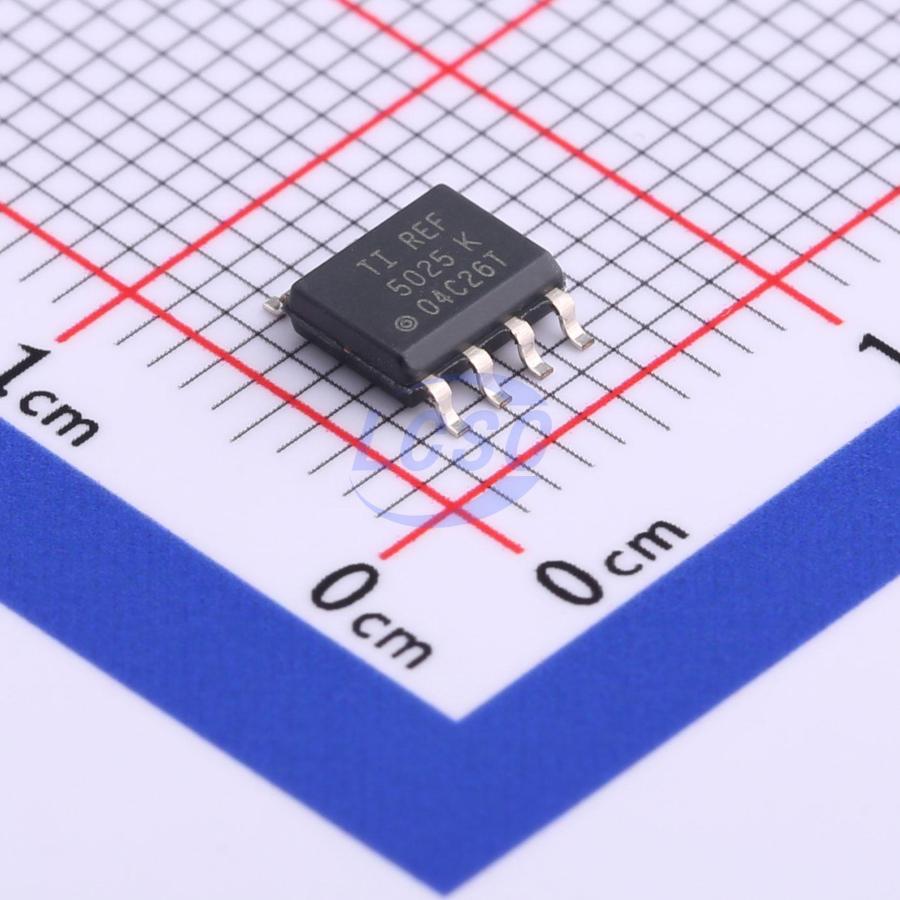

REF5025IDR
Series Voltage Reference IC Fixed 2.5V ±0.05% 10mA SOIC-8
SOIC-8ROHS3 CompliantActive
Low-noise, ultra-low temperature drift, high-precision voltage reference
- Manufacturer
- TI
- Manufacturer part #
- REF5025IDR
- Store part #
- C544535
- Package / case
- SOIC-8
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,893 in stock
#C544535
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹620.01 | ₹620.01 |
| 10+ | ₹491.49 | ₹4,914.90 |
| 30+ | ₹433.75 | ₹13,012.50 |
| 100+ | ₹374.49 | ₹37,449.00 |
| 500+ | ₹347.57 | ₹1,73,785.00 |
| 1,000+ | ₹336.06 | ₹3,36,060.00 |
1 × ₹620.01
₹620.01
excl. GST
₹731.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
REF5025IDR
₹620.01 for 1 + GST
Specifications
- Output Voltage
- 2.5V
- Quiescent Current
- 1.2mA
- Tolerance
- ±0.05%
- Voltage - Supply
- 2.7V~18V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 7.5uVp-p
- Output Current
- 10mA
- Operating Temperature
- -40℃~+125℃
- Features
- Built-in temperature sensor
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.127 g
Overview
The REF50xx is a product series featuring low noise, low drift, and extremely high precision voltage references. These references support both sinking and sourcing currents and offer excellent line and load regulation performance. Proprietary design techniques are employed to achieve excellent temperature drift (3ppm/°C) and high precision (0.05%). Combining these features with extremely low noise makes the REF50xx series an ideal choice for high-precision data acquisition systems. Each reference voltage is available in both high-grade and standard-grade versions. The reference voltages are provided in 8-pin VSSOP and SOIC packages, with a specified temperature range from –40°C to 125°C. High output current: ±10mA Temperature range: –40°C to 125°C
Applications
- Precision data acquisition systems
- Semiconductor test equipment
- Industrial process control
- Medical instrumentation
- Pressure and temperature transmitters
- Laboratory and field instrumentation
Key features
- Low temperature drift:
- High grade: 3ppm/°C (max)
- Standard grade: 8ppm/°C (max)
- High accuracy:
- High grade: 0.05% (max)
- Standard grade: 0.1% (max)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | REF5025ID#C523999TI · SOIC-8 | TI | SOIC-8 | 255 | ₹463.55 · 255 in stock | View |
 | LHR3025AFAA#C18213061Legendsemi · SOP-8 | Legendsemi | SOP-8 | 154 | ₹611.86 · 154 in stock | View |
 | REF5025MDTEP#C2157108TI · SOIC-8 | TI | SOIC-8 | 165 | ₹2,305.29 · 165 in stock | View |
 | GM7400ARZ-2.5-R7#C22439309GONGMOSEMI · SO-8 | GONGMOSEMI | SO-8 | 688 | ₹546.20 · 688 in stock | View |
 | ADR4525ARZ(TOKMAS)#C18214520Tokmas · SOIC-8 | Tokmas | SOIC-8 | 978 | ₹275.95 · 978 in stock | View |
