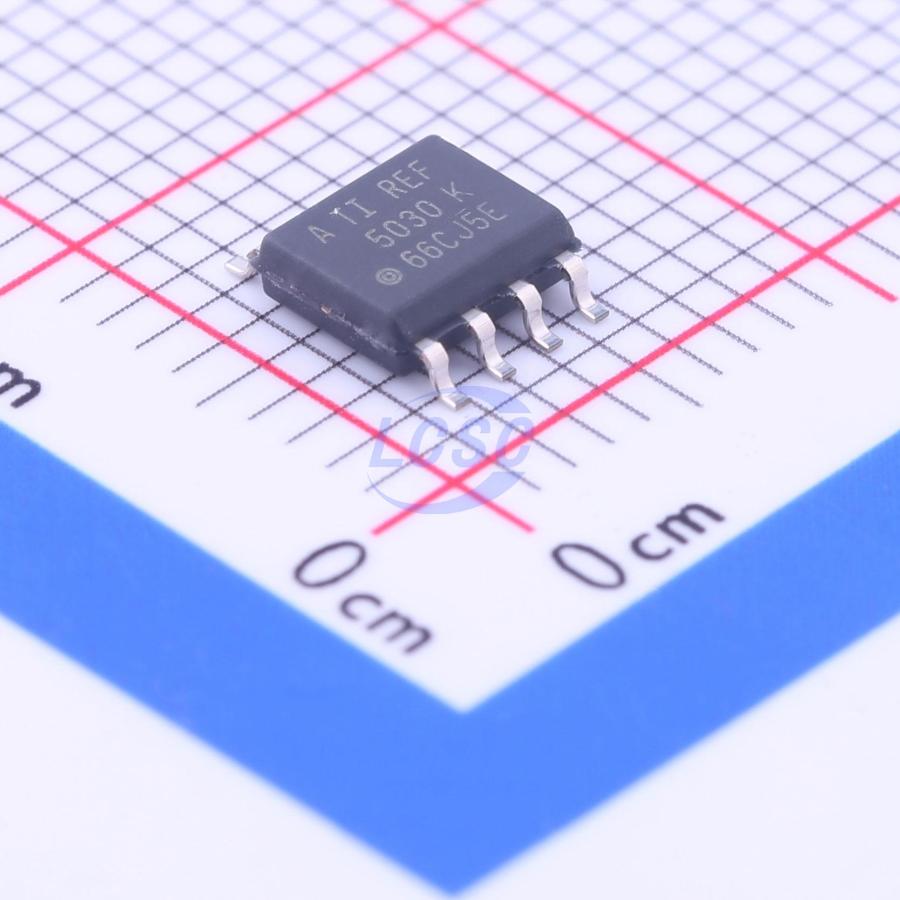

REF5030AIDR
3V ±0.1% 3.2V~18V 10mA Fixed SOIC-8 Voltage Reference RoHS
SOIC-8ROHS3 CompliantActive
Low-Noise, Very Low Drift, Precision Voltage Reference
- Manufacturer
- TI
- Manufacturer part #
- REF5030AIDR
- Store part #
- C69362
- Package / case
- SOIC-8
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,514 in stock
#C69362
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹149.91 | ₹149.91 |
| 10+ | ₹120.15 | ₹1,201.50 |
| 30+ | ₹105.38 | ₹3,161.40 |
| 100+ | ₹86.70 | ₹8,670.00 |
| 500+ | ₹77.78 | ₹38,890.00 |
| 1,000+ | ₹73.23 | ₹73,230.00 |
1 × ₹149.91
₹149.91
excl. GST
₹176.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
REF5030AIDR
₹149.91 for 1 + GST
Specifications
- Output Voltage
- 3V
- Quiescent Current
- 1.2mA
- Tolerance
- ±0.1%
- Voltage - Supply
- 3.2V~18V
- Reference Type
- Series
- Output Current
- 10mA
- Operating Temperature
- -40℃~+125℃
- Features
- Built-in temperature sensor
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
The REF50xx is a family of low-noise, low-drift, very high precision voltage references. These references are capable of both sinking and sourcing current, and have excellent line and load regulation. Excellent temperature drift (3 ppm/°C) and high accuracy (0.05%) are achieved using proprietary design techniques. These features, combined with very low noise, make the REF50xx family ideal for use in high-precision data acquisition systems. Each reference voltage is available in both standard and high-grade versions. They are offered in MSOP-8 and SO-8 packages, and are specified from -40°C to 125°C.
Applications
- 16-Bit Data Acquisition Systems
- ATE Equipment
- Industrial Process Controls
- Medical Instrumentation
- Pressure and Temperature Transmitters
- Seismic monitoring systems
Key features
- Low Temperature Drift: High-Grade: 3 ppm/°C (Maximum) Standard-Grade: 8 ppm/°C (Maximum)
- High Accuracy: High-Grade: 0.05% (Maximum); Standard-Grade: 0.1% (Maximum)
- Low Noise: 3 μVPP/V
- Excellent Long-term Stability: 45 ppm/1000 hr (typ) after 1000 Hours
- High-Output Current: ±10 mA
- Temperature Range: -40°C to 125°C
