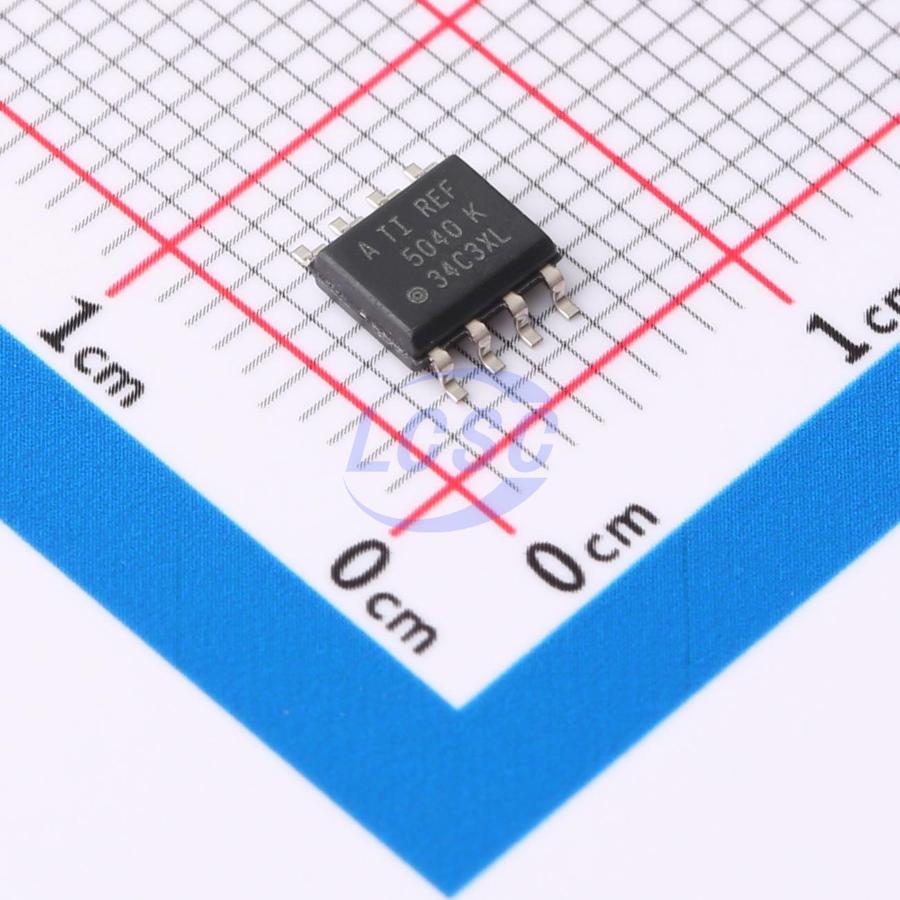

REF5040AIDR
4.096V ±0.1% 4.296V~18V 10mA Fixed SOIC-8 Voltage Reference RoHS
SOIC-8ROHS3 CompliantActive
Low-Noise, Very Low Drift, Precision Voltage Reference
- Manufacturer
- TI
- Manufacturer part #
- REF5040AIDR
- Store part #
- C46274
- Package / case
- SOIC-8
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,448 in stock
#C46274
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹215.57 | ₹215.57 |
| 10+ | ₹179.68 | ₹1,796.80 |
| 30+ | ₹159.88 | ₹4,796.40 |
| 100+ | ₹134.22 | ₹13,422.00 |
| 500+ | ₹124.22 | ₹62,110.00 |
| 1,000+ | ₹119.64 | ₹1,19,640.00 |
1 × ₹215.57
₹215.57
excl. GST
₹254.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
REF5040AIDR
₹215.57 for 1 + GST
Specifications
- Output Voltage
- 4.096V
- Quiescent Current
- 1.2mA
- Tolerance
- ±0.1%
- Voltage - Supply
- 4.296V~18V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 12uVp-p
- Output Current
- 10mA
- Operating Temperature
- -40℃~+125℃
- Features
- Built-in temperature sensor
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.121 g
Overview
The REF50xx is a family of low-noise, low-drift, very high precision voltage references. These references are capable of both sinking and sourcing, and are very robust with regard to line and load changes. Excellent temperature drift (3ppm/°C) and high accuracy (0.05%) are achieved using proprietary design techniques. These features, combined with very low noise, make the REF50xx family ideal for use in high-precision data acquisition systems. Each reference voltage is available in both standard and high-grade versions. They are offered in MSOP-8 and SO-8 packages, and are specified from -40°C to +125°C.
Applications
- 16-BIT DATA ACQUISITION SYSTEMS
- ATE EQUIPMENT
- INDUSTRIAL PROCESS CONTROL
- MEDICAL INSTRUMENTATION
- OPTICAL CONTROL SYSTEMS
- PRECISION INSTRUMENTATION
Key features
- LOW TEMPERATURE DRIFT:
- High-Grade: 3ppm/°C (max)
- Standard-Grade: 8ppm/°C (max)
- HIGH ACCURACY:
- High-Grade: 0.05% (max)
- Standard-Grade: 0.1% (max)
- LOW NOISE: 3μVPP/V
- EXCELLENT LONG-TERM STABILITY:
- 45ppm/1000hr (typ) after 1000 hours
- HIGH OUTPUT CURRENT: ±10mA
- TEMPERATURE RANGE: -40°C to ±125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | REF5040AID#C1575304TI · SOIC-8 | TI | SOIC-8 | On request | ₹211.14 · 0 in stock | View |
 | REF5040AQDRQ1#C2864184TI · SOIC-8 | TI | SOIC-8 | 4 | ₹377.23 · 4 in stock | View |
| GM7401ARZ-4.096-R7#C41383634GONGMOSEMI · SO-8 | GONGMOSEMI | SO-8 | 712 | ₹546.20 · 712 in stock | View | |
 | GM7401BRZ-4.096-R7#C41433693GONGMOSEMI · SO-8 | GONGMOSEMI | SO-8 | 1 | ₹230.14 · 1 in stock | View |
 | RS5040XK#C19269224RUNIC · SOIC-8 | RUNIC | SOIC-8 | 2,688 | ₹235.14 · 2,688 in stock | View |
