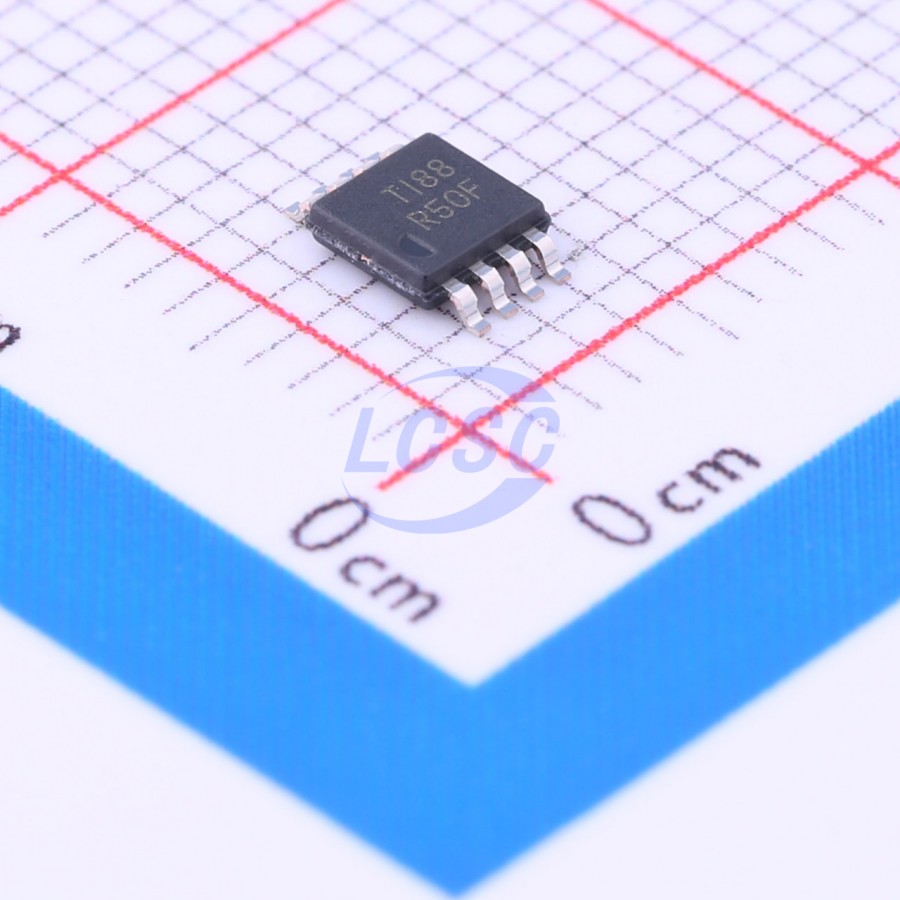

REF5050AIDGKR

The REF50xx is a family of low-noise, low-drift, very high precision voltage references. These references are capable of both sinking and sourcing current, and have excellent line and load regulation. Excellent temperature drift (3 ppm/℃) and high accuracy (0.05%) are achieved using proprietary design techniques. These features, combined with very low noise, make the REF50xx family ideal for use in high-precision data acquisition systems. Each reference voltage is available in both high grade (REF50xxIDGK and REF50xxID) and standard grade (REF50xxAIDGK and REF50xxAID). The reference voltages are offered in 8-pin VSSOP and SOIC packages, and are specified from -40℃ to 125℃.

Applications

• Precision Data Acquisition Systems
• ATE Equipment
• Industrial Process Controls
• Medical Instrumentation
• Pressure and Temperature Transmitters
• Seismic monitoring systems

Key features

• Low Temperature Drift: High-Grade: 3 ppm/°C (Max) Standard-Grade: 8 ppm/°C (Max)
• High Accuracy: High-Grade: 0.05% (Max) Standard-Grade: 0.1% (Max)
• Low Noise: 3 μVₚ₋ₚ/V
• Excellent Long-Term Stability: 45 ppm/1000 hr (Typ) after 1000 Hours
• High-Output Current: ±10 mA
• Temperature Range: -40°C to 125°C
