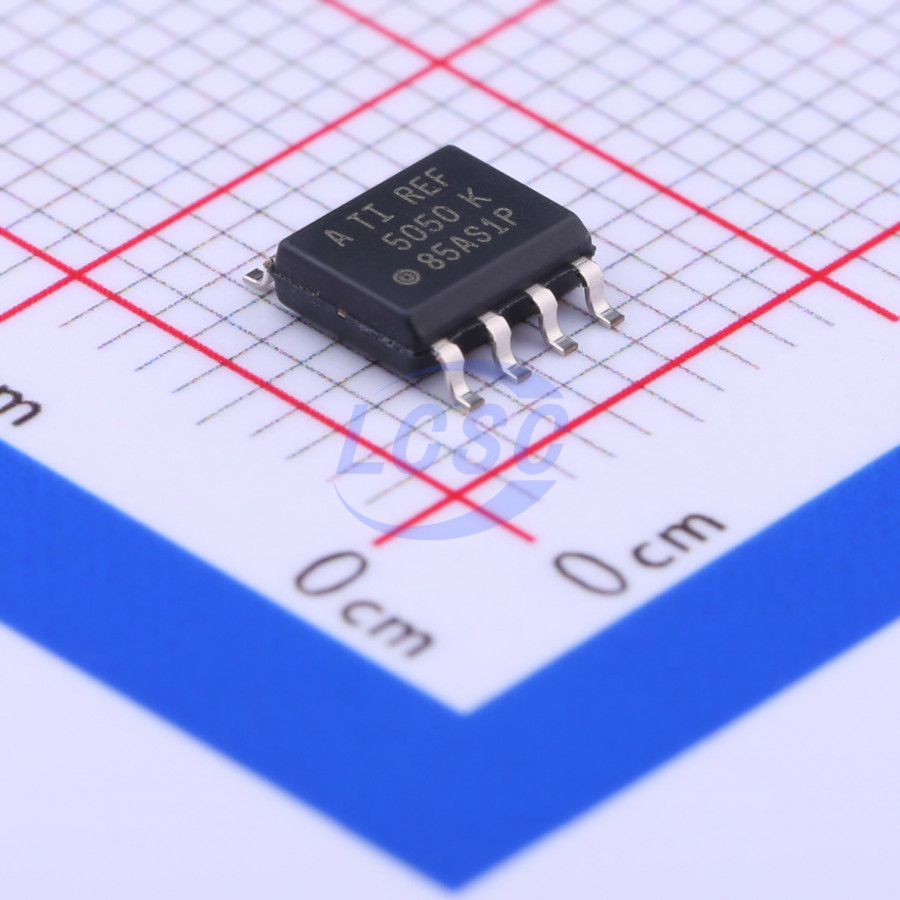

REF5050AIDR
Series Voltage Reference IC Fixed 5V ±0.1% 10mA SOIC-8
SOIC-8ROHS3 CompliantActive
Low-Noise, Very Low Drift, Precision Voltage Reference
- Manufacturer
- TI
- Manufacturer part #
- REF5050AIDR
- Store part #
- C27804
- Package / case
- SOIC-8
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,603 in stock
#C27804
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹140.50 | ₹140.50 |
| 10+ | ₹125.10 | ₹1,251.00 |
| 30+ | ₹110.58 | ₹3,317.40 |
| 100+ | ₹99.09 | ₹9,909.00 |
| 500+ | ₹94.75 | ₹47,375.00 |
| 1,000+ | ₹92.58 | ₹92,580.00 |
1 × ₹140.50
₹140.50
excl. GST
₹165.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
REF5050AIDR
₹140.50 for 1 + GST
Specifications
- Output Voltage
- 5V
- Quiescent Current
- 800uA
- Tolerance
- ±0.1%
- Voltage - Supply
- 5.2V~18V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 15uVp-p
- Output Current
- 10mA
- Operating Temperature
- -40℃~+125℃
- Features
- Enable/disable;Built-in temperature sensor
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
The REF50xx is a family of low-noise, low-drift, very high precision voltage references. These references are capable of both sinking and sourcing, and are very robust with regard to line and load changes. Excellent temperature drift (3ppm/°C) and high accuracy (0.05%) are achieved using proprietary design techniques. These features, combined with very low noise, make the REF50xx family ideal for use in high-precision data acquisition systems. Each reference voltage is available in both standard and high-grade versions. They are offered in MSOP-8 and SO-8 packages, and are specified from -40°C to +125°C.
Applications
- 16-BIT DATA ACQUISITION SYSTEMS ATE EQUIPMENT
- INDUSTRIAL PROCESS CONTROL
- MEDICAL INSTRUMENTATION
- OPTICAL CONTROL SYSTEMS PRECISION INSTRUMENTATION
Key features
- LOW TEMPERATURE DRIFT:
- High-Grade: 3ppm/°C (max)
- Standard-Grade: 8ppm/°C (max)
- HIGH ACCURACY:
- High-Grade: 0.05% (max)
- Standard-Grade: 0.1% (max)
- LOW NOISE: 3μVPP/V
- EXCELLENT LONG-TERM STABILITY:
- 45ppm/1000hr (typ) after 1000 hours
- HIGH OUTPUT CURRENT: ±10mA
- TEMPERATURE RANGE: -40°C to +125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | REF5050AQDRQ1#C138360TI · SOIC-8 | TI | SOIC-8 | 6 | ₹1,066.09 · 6 in stock | View |
 | LHR3050BFAA#C18213071Legendsemi · SOP-8 | Legendsemi | SOP-8 | 23 | ₹477.38 · 23 in stock | View |
 | REF5050MDREP#C2157022TI · SOIC-8 | TI | SOIC-8 | 9 | ₹2,375.27 · 9 in stock | View |
 | CM5415-SOPTA#C20606820CIMO · SOP-8 | CIMO | SOP-8 | 31 | ₹481.53 · 31 in stock | View |
 | GM7400BRZ-5-R7#C41433518GONGMOSEMI · SO-8 | GONGMOSEMI | SO-8 | On request | ₹224.51 · 0 in stock | View |
