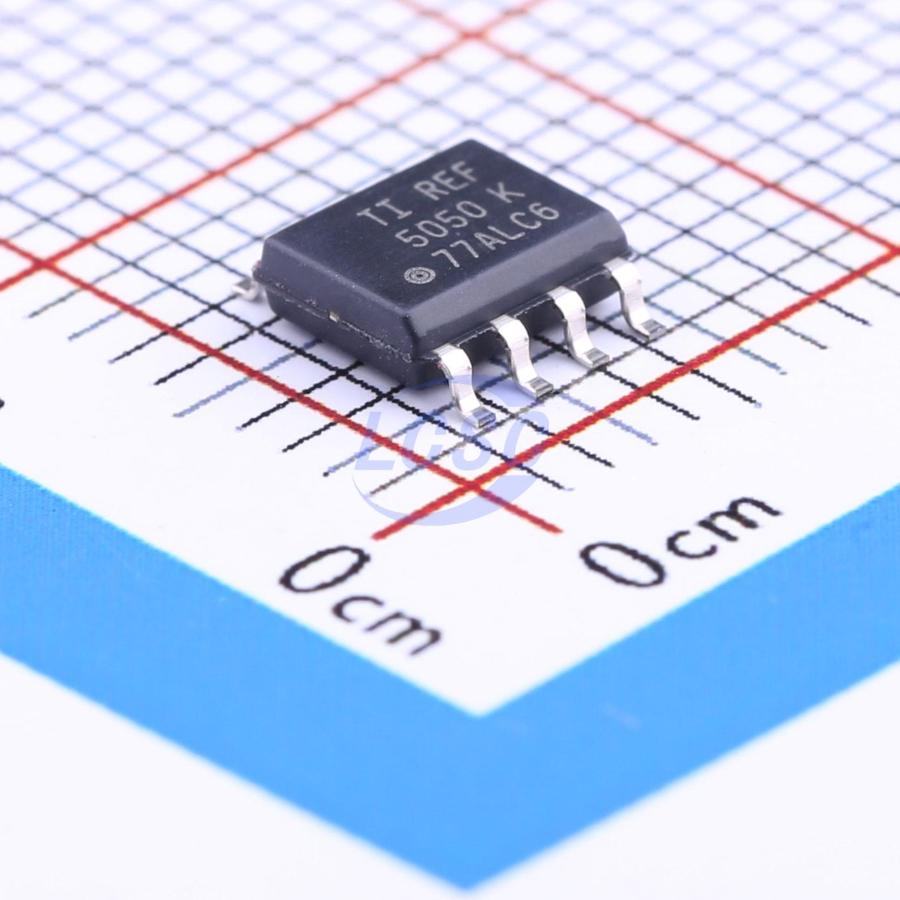

REF5050IDR
Series Voltage Reference IC Fixed 5V ±0.05% 10mA SOIC-8
SOIC-8ROHS3 CompliantActive
Low-noise, extremely low temperature drift, wide Vn precision voltage reference
- Manufacturer
- TI
- Manufacturer part #
- REF5050IDR
- Store part #
- C24696
- Package / case
- SOIC-8
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,338 in stock
#C24696
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹256.46 | ₹256.46 |
| 10+ | ₹216.28 | ₹2,162.80 |
| 30+ | ₹186.53 | ₹5,595.90 |
| 100+ | ₹160.92 | ₹16,092.00 |
| 500+ | ₹149.18 | ₹74,590.00 |
| 1,000+ | ₹144.19 | ₹1,44,190.00 |
1 × ₹256.46
₹256.46
excl. GST
₹302.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
REF5050IDR
₹256.46 for 1 + GST
Specifications
- Output Voltage
- 5V
- Quiescent Current
- 800uA
- Tolerance
- ±0.05%
- Voltage - Supply
- 5.2V~18V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 15uVp-p
- Output Current
- 10mA
- Operating Temperature
- -40℃~+125℃
- Features
- Enable/disable;Built-in temperature sensor
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
The REF50xx is a family of low-noise, low-drift, very high precision voltage references. These references are capable of both sinking and sourcing, and are very robust with regard to line and load changes. Excellent temperature drift (3ppm/°C) and high accuracy (0.05%) are achieved using proprietary design techniques. These features, combined with very low noise, make the REF50xx family ideal for use in high-precision data acquisition systems. Each reference voltage is available in both standard and high-grade versions. They are offered in MSOP-8 and SO-8 packages, and are specified from -40°C to +125°C.
Applications
- 16-BIT DATA ACQUISITION SYSTEMS ATE EQUIPMENT
- INDUSTRIAL PROCESS CONTROL
- MEDICAL INSTRUMENTATION
- OPTICAL CONTROL SYSTEMS PRECISION INSTRUMENTATION
Key features
- LOW TEMPERATURE DRIFT:
- High-Grade: 3ppm/°C (max)
- Standard-Grade: 8ppm/°C (max)
- HIGH ACCURACY:
- High-Grade: 0.05% (max)
- Standard-Grade: 0.1% (max)
- LOW NOISE: 3μVPP/V
- EXCELLENT LONG-TERM STABILITY:
- 45ppm/1000hr (typ) after 1000 hours
- HIGH OUTPUT CURRENT: ±10mA
- TEMPERATURE RANGE: -40°C to +125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | GM7400ARZ-5-R7#C22439310GONGMOSEMI · SO-8 | GONGMOSEMI | SO-8 | 186 | ₹559.88 · 186 in stock | View |
 | ADR445BRZ-REEL7#C494992ADI · SOIC-8 | ADI | SOIC-8 | 323 | ₹14,256.66 · 323 in stock | View |
 | LT1461AIS8-5#TRPBF#C663866ADI · SO-8 | ADI | SO-8 | 21 | ₹3,097.62 · 21 in stock | View |
 | REF5045ID#C200352TI · SOIC-8 | TI | SOIC-8 | 6 | ₹1,213.80 · 6 in stock | View |
| REF5045IDR#C2157551TI · SOIC-8 | TI | SOIC-8 | 78 | ₹1,440.96 · 78 in stock | View | |
