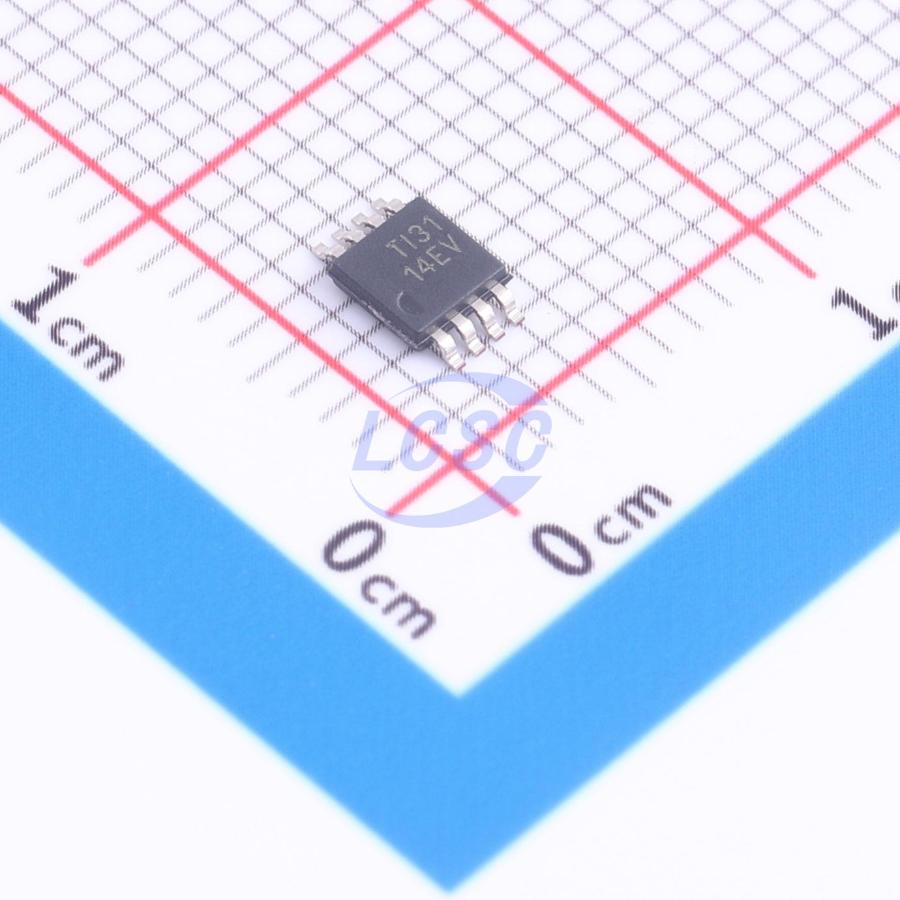

REF6145IDGKR

The REF6000 series voltage references integrate a low-output-impedance buffer, which enables users to directly drive the REF pins of precision data converters while maintaining linearity, distortion, and noise performance. Most precision SAR and Δ -Σ ADCs switch binary-weighted capacitors to the REF pin during conversion. To support this dynamic load, the output of the voltage reference must be buffered by a low-output-impedance (high-bandwidth) buffer. The REF6000 series devices are well-suited (but not limited to) for driving the REF pins of the ADS88xx series SAR ADCs, the ADS127xx series Δ -Σ ADCs, and other digital-to-analog converters (DACs). When driving the REF pin of the ADS8881, the output voltage of the REF6000 series voltage references does not drop below 1 LSB (18-bit), even during the first conversion. This feature is extremely useful for burst-mode, event-triggered isochronous sampling, and variable-sampling-rate data acquisition systems. The REF61xx models of the REF6000 series specify a maximum temperature drift (only 8ppm/°C) and provide an initial accuracy of 0.05% for the combination of the voltage reference and the low-output-impedance buffer.

Applications

• Automatic Test Equipment (ATE) testers and oscilloscopes
• Test and measurement equipment
• Programmable Logic Controller (PLC) analog input modules
• Medical devices
• Precision data acquisition systems

Key features

• Excellent temperature drift performance: 8ppm/°C (max) from -40°C to +125°C
• Ultra-low noise
• Total noise: 5μV_RMS (with 47μF capacitor)
• 1/f noise (0.1Hz to 10Hz): 3μV_PP/V
• Integrated ADC driver buffer
• Low output impedance: <50mΩ (0kHz - 200kHz)
• Enables 18-bit precision sampling with ADS8881
• Supports burst-mode DAQ systems
• Low supply current: 820μA
• Low shutdown current: 1μA
• High initial accuracy: ±0.05%
• Ultra-low noise and distortion
• SNR: 100.5dB, THD: -125dB (ADS8881)
• SNR: 106dB, THD: -120dB (ADS127L01)
• Output current drive capability: ±4mA
• Programmable short-circuit current
• Verified for driving the REF pin of ADS88xx SAR ADC and ADS127xx wideband Δ-Σ ADC families
