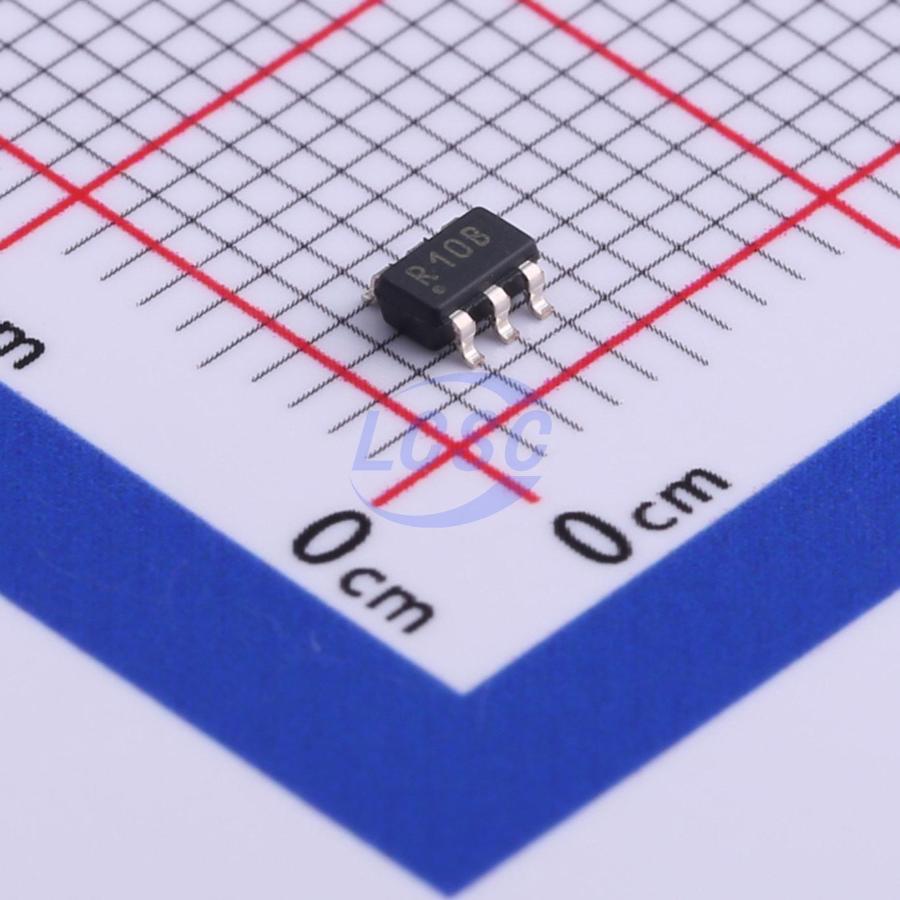

REG710NA-5/3K
1MHz Buck-Boost 30mA 4.7V~5.3V SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS3 CompliantActive
Buck-Boost Charge Pump with up to 60-mA Output Current
- Manufacturer
- TI
- Manufacturer part #
- REG710NA-5/3K
- Store part #
- C527422
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,896 in stock
#C527422
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹150.25 | ₹150.25 |
| 10+ | ₹133.35 | ₹1,333.50 |
| 30+ | ₹117.73 | ₹3,531.90 |
| 100+ | ₹105.81 | ₹10,581.00 |
| 500+ | ₹101.04 | ₹50,520.00 |
| 1,000+ | ₹98.66 | ₹98,660.00 |
1 × ₹150.25
₹150.25
excl. GST
₹177.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
REG710NA-5/3K
₹150.25 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1MHz
- Function
- Buck-Boost
- Features
- Charge pump / inverting topology switching;Low ripple / low noise architecture;Cascade support;Low-power standby;Output short-circuit protection;Overcurrent Protection
- Operating Voltage
- 2.7V~5.5V
- Output Current
- 30mA
- Output Voltage
- 4.7V~5.3V
- Energy Efficiency
- 90%
- Quiescent Current
- 100uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.031 g
Overview
Wide Input Voltage Range: 1.8 V to 5.5 V Automatic Step-Up and Step-Down Operation Low Input Current Ripple Low Output Voltage Ripple Minimum Number of External Components—No Inductors 1-MHz Internal Oscillator Allows Small Capacitors Shutdown Mode Thermal and Current Limit Protection Six Fixed Output Voltages Available: – 2.5 V, 2.7 V, 3 V, 3.3 V, 5 V, 5.5 V
Applications
- White LED Driver
- Smart Card Readers
- SIM Cards
- Handheld devices
- Modems
- PCMCIA Cards
- LCD Displays Battery Backup Supplies
Key features
- Wide Input Voltage Range: 1.8 V to 5.5 V
- Automatic Step-Up and Step-Down Operation
- Low Input Current Ripple
- Low Output Voltage Ripple
- Minimum Number of External Components—No Inductors
- 1-MHz Internal Oscillator Allows Small Capacitors
- Shutdown Mode
- Thermal and Current Limit Protection
- Six Fixed Output Voltages Available: 2.5 V, 2.7 V, 3 V, 3.3 V, 5 V, 5.5 V
