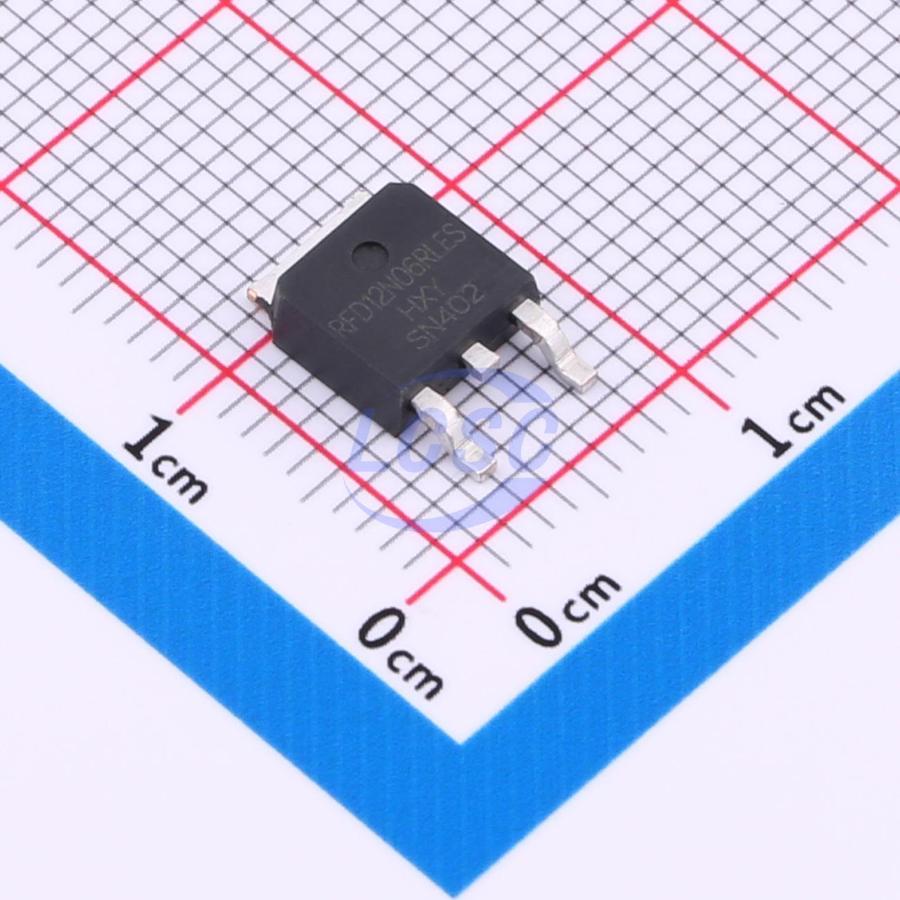

RFD12N06RLES-HXY
N-Channel 60V 20A 34.7W Surface Mount TO-252-2L
TO-252-2LROHS CompliantActive
MOSFET N-CH 60V 20A TO-252-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- RFD12N06RLES-HXY
- Store part #
- C22366902
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
145 in stock
#C22366902
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.98 | ₹139.90 |
| 50+ | ₹22.42 | ₹1,121.00 |
| 150+ | ₹20.03 | ₹3,004.50 |
| 500+ | ₹17.05 | ₹8,525.00 |
| 2,500+ | ₹15.73 | ₹39,325.00 |
| 5,000+ | ₹14.93 | ₹74,650.00 |
5 × ₹27.98
₹139.90
excl. GST
₹165.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RFD12N06RLES-HXY
₹139.90 for 5 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 60pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 1.355nF
- Pd - Power Dissipation
- 34.7W
- Reverse Transfer Capacitance (Crss)
- 49pF
- RDS(on)
- 25mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 22nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.7V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.398 g
