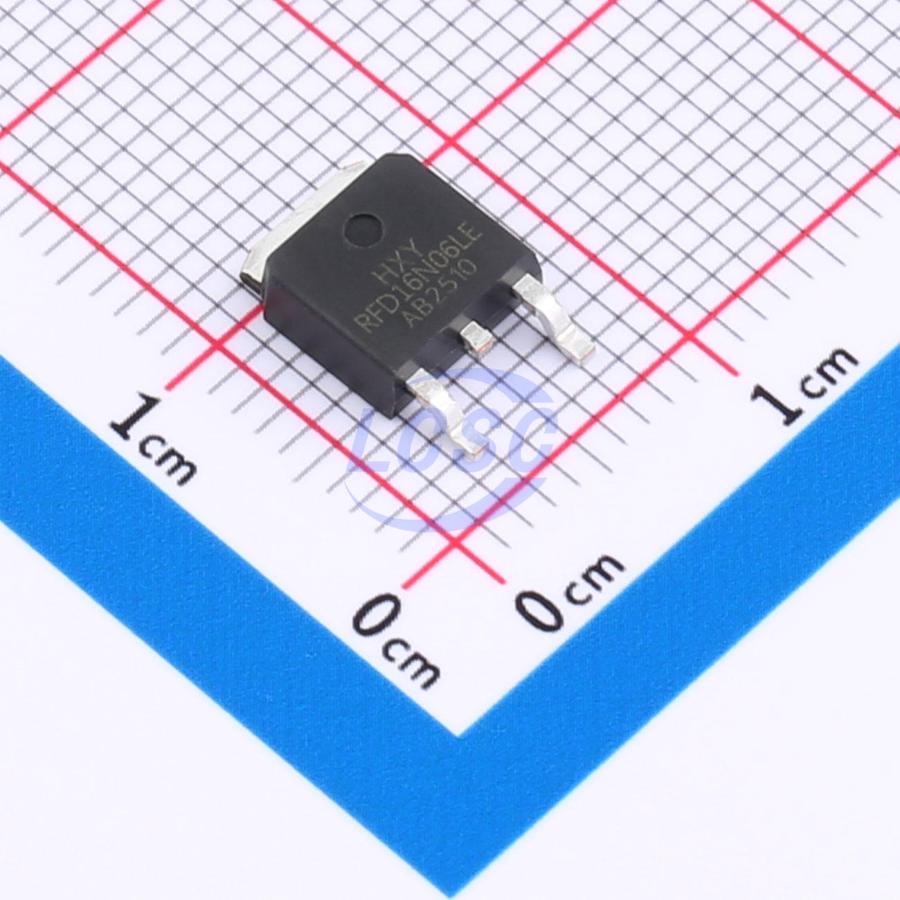

RFD16N06LESM9A-HXY
N-Channel 60V 20A 34.7W Surface Mount TO-252-2L
TO-252-2LROHS CompliantActive
MOSFET N-CH 60V 20A TO-252-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- RFD16N06LESM9A-HXY
- Store part #
- C48972181
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
88 in stock
#C48972181
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹62.76 | ₹62.76 |
| 10+ | ₹49.76 | ₹497.60 |
| 30+ | ₹44.08 | ₹1,322.40 |
| 100+ | ₹37.16 | ₹3,716.00 |
| 500+ | ₹34.01 | ₹17,005.00 |
| 1,000+ | ₹32.12 | ₹32,120.00 |
1 × ₹62.76
₹62.76
excl. GST
₹74.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RFD16N06LESM9A-HXY
₹62.76 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 60pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 1.355nF
- Pd - Power Dissipation
- 34.7W
- Reverse Transfer Capacitance (Crss)
- 49pF
- RDS(on)
- 25mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 22nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.7V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.379 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMN6040SK3-HXY#C22366761HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 70 | ₹33.62 · 70 in stock | View |
 | STD20NF06L-HXY#C22366764HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 450 | ₹24.32 · 450 in stock | View |
 | STD20NF06T4-HXY#C22366765HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 20 | ₹26.35 · 20 in stock | View |
 | IRFR4105PBF-HXY#C22366766HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 55 | ₹27.17 · 55 in stock | View |
 | IRLR2705PBF-HXY#C22366767HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 185 | ₹26.76 · 185 in stock | View |
