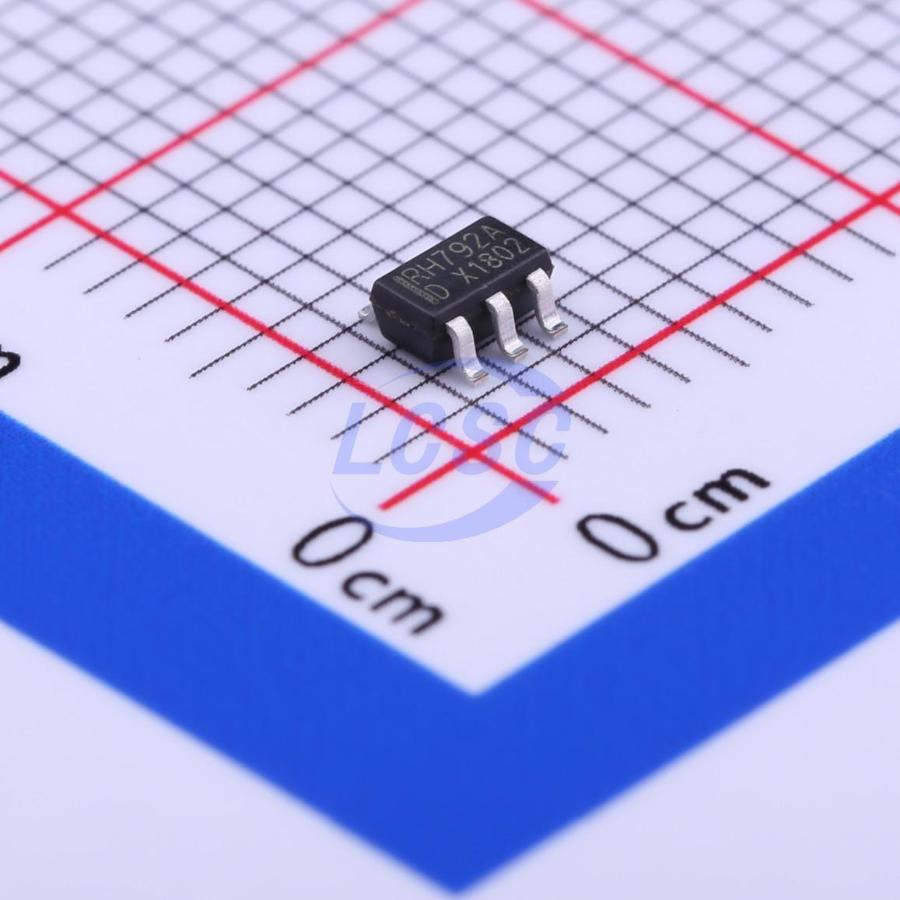

RH792A
2 USB Charging IC SOT-23-6L Interface Controllers RoHS
USB charging protocol port controller
- Manufacturer
- RONGHE Microelectronics
- Manufacturer part #
- RH792A
- Store part #
- C240192
- Package / case
- SOT-23-6L
- Category
- Interface Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,580 in stock
#C240192
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.63 | ₹96.30 |
| 100+ | ₹7.73 | ₹773.00 |
| 300+ | ₹6.77 | ₹2,031.00 |
| 3,000+ | ₹5.53 | ₹16,590.00 |
| 6,000+ | ₹4.96 | ₹29,760.00 |
| 9,000+ | ₹4.68 | ₹42,120.00 |
10 × ₹9.63
₹96.30
excl. GST
₹113.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RH792A
₹96.30 for 10 + GST
Specifications
- Operating Temperature
- -20℃~+85℃
- Voltage - Supply
- 4.5V~5.5V
- Number of ports
- 2
- Features
- Power-on reset
- Applications Function
- USB Charging IC
- Current - Supply
- 140uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.041 g
Overview
RH792A is a USB charging protocol port controller IC that automatically identifies the type of charging device and performs a handshake with the device using the corresponding USB charging protocol, enabling maximum charging current while protecting the charging device and reducing charging time.
Applications
- Power Bank
- Portable Charger
- Car Charger
Key features
- Operating voltage: 4.5V ~ 5.5V
- Dual-port control: supports two independent USB charging protocol detection channels simultaneously
- Multiple USB charging protocols with automatic switching, including: Divider1/Divider2/Divider3 (Apple proprietary), D+/D- set to 1.2V mode (Samsung proprietary), BC1.2 DCP, and CTIS YD/T 1591-2009 charging protocols
- Reliable Power-On Reset (POR) and Low Voltage Reset (LVR) performance
- Package and pin binding: SOT23-6
