VBsemi ElecDatasheet (PDF)

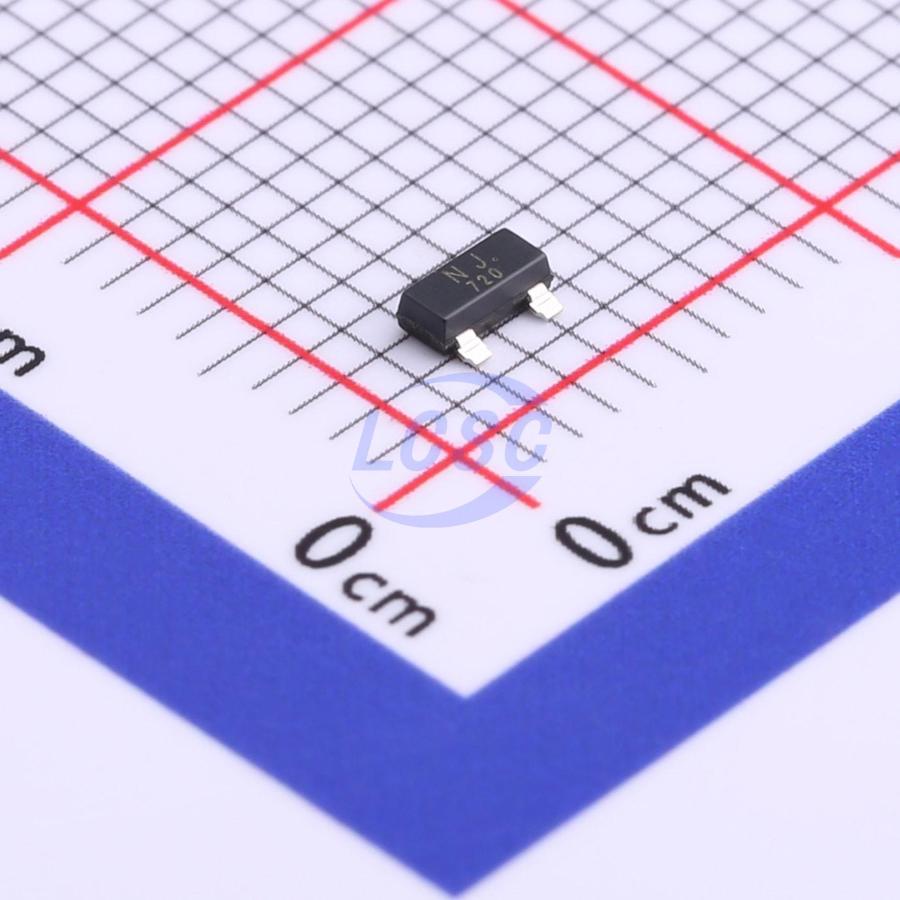

RHK003N06T146-VB
N-Channel 60V 250mA 300mW Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET N-CH 60V 250mA SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- RHK003N06T146-VB
- Store part #
- C725144
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C725144
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.37 | ₹73.70 |
| 100+ | ₹5.82 | ₹582.00 |
| 300+ | ₹5.05 | ₹1,515.00 |
| 3,000+ | ₹4.48 | ₹13,440.00 |
| 6,000+ | ₹4.01 | ₹24,060.00 |
| 9,000+ | ₹3.78 | ₹34,020.00 |
10 × ₹7.37
₹73.70
excl. GST
₹86.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RHK003N06T146-VB
₹73.70 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 5pF
- Current - Continuous Drain(Id)
- 250mA
- Ciss-Input Capacitance
- 25pF
- Pd - Power Dissipation
- 300mW
- Reverse Transfer Capacitance (Crss)
- 2pF
- RDS(on)
- 2.8Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 400pC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.045 g
Overview
Applications
- Direct logic level interface: TTL/CMOS
- Drivers: relays, solenoids, lamps, hammers, displays, memories, transistors, etc.
- Battery-powered systems
- Solid-state relays
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Low threshold: 2 V (typical)
- Low input capacitance: 25 pF
- Fast switching speed: 25 ns
- Low input and output leakage current
- Trench power MOSFET
- Compliant with RoHS Directive 2002/95/EC
