HXY MOSFETDatasheet (PDF)

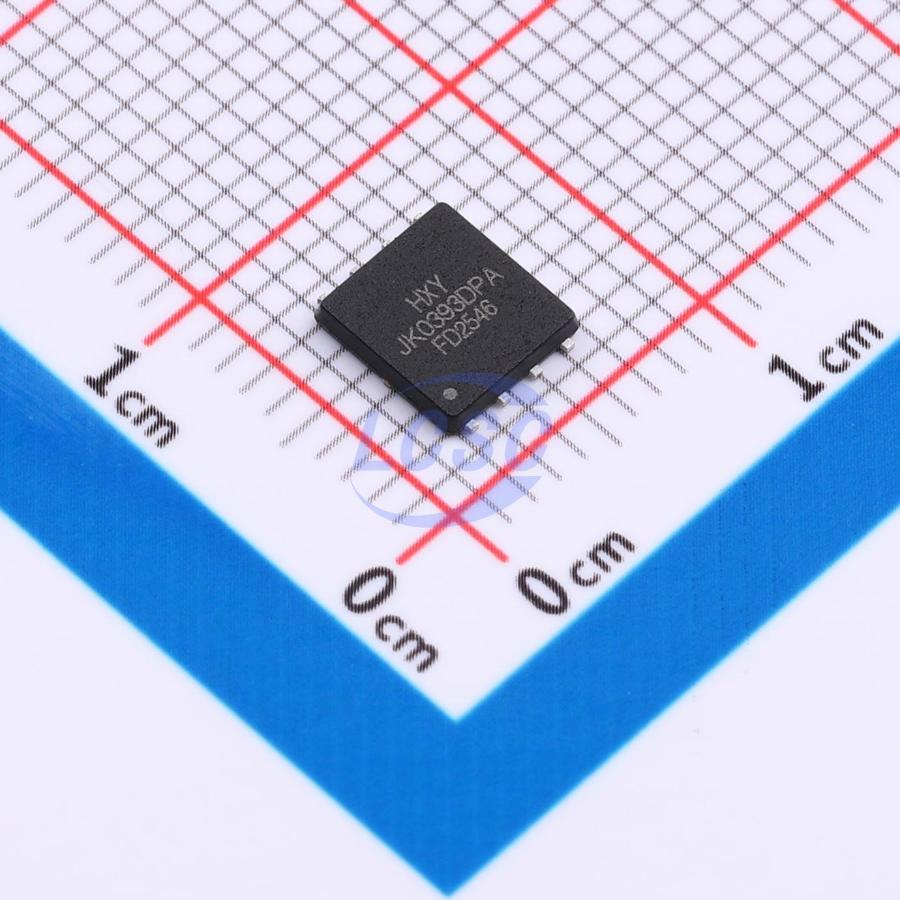

RJK0393DPA-00#J5A-HXY
115W 30V 120A 2.6mΩ@10V 1 N-channel N-Channel DFN-8L(5x6) Single FETs, MOSFETs
DFN-8L(5x6)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- RJK0393DPA-00#J5A-HXY
- Store part #
- C53263250
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
98 in stock
#C53263250
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹146.69 | ₹146.69 |
| 10+ | ₹123.50 | ₹1,235.00 |
| 30+ | ₹110.83 | ₹3,324.90 |
| 100+ | ₹96.43 | ₹9,643.00 |
| 500+ | ₹89.99 | ₹44,995.00 |
| 1,000+ | ₹86.99 | ₹86,990.00 |
1 × ₹146.69
₹146.69
excl. GST
₹173.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RJK0393DPA-00#J5A-HXY
₹146.69 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 480pF
- Ciss-Input Capacitance
- 2.218nF
- Pd - Power Dissipation
- 115W
- Operating Temperature
- -55℃~+175℃
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 120A
- Reverse Transfer Capacitance (Crss)
- 340pF
- RDS(on)
- 2.6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 24nC@15V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.143 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSC0504NSI-HXY#C51949188HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 97 | ₹82.91 · 97 in stock | View |
 | CSD17505Q5A-HXY#C51949291HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 98 | ₹156.58 · 98 in stock | View |
 | ISC037N03L5ISATMA1-HXY#C51949293HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 80 | ₹51.66 · 80 in stock | View |
 | SIRA84BDP-T1-GE3-HXY#C51949297HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 445 | ₹47.32 · 445 in stock | View |
 | NTMFS4936NCT1G-HXY#C51949299HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 98 | ₹108.68 · 98 in stock | View |
