HXY MOSFETDatasheet (PDF)

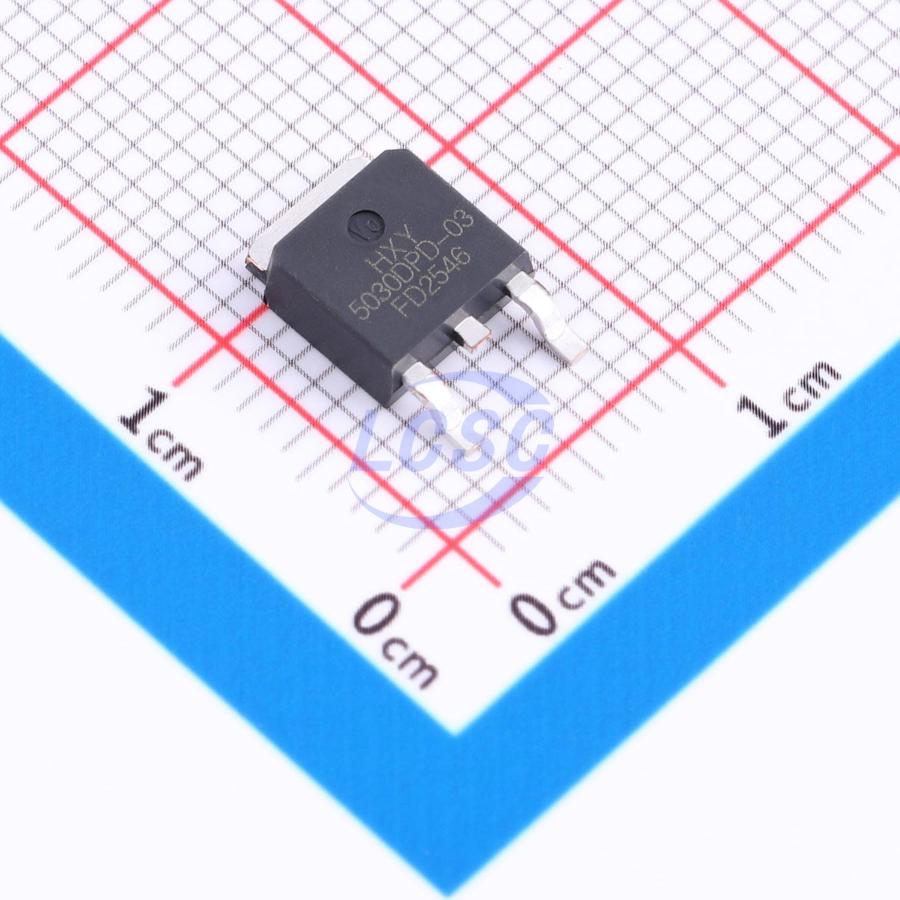

RJK5030DPD-03#J2-HXY
83W 500V 5A 1.3Ω@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- RJK5030DPD-03#J2-HXY
- Store part #
- C53262960
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
49 in stock
#C53262960
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹271.25 | ₹271.25 |
| 10+ | ₹233.46 | ₹2,334.60 |
| 30+ | ₹209.62 | ₹6,288.60 |
| 100+ | ₹185.35 | ₹18,535.00 |
| 500+ | ₹174.40 | ₹87,200.00 |
| 1,000+ | ₹169.67 | ₹1,69,670.00 |
1 × ₹271.25
₹271.25
excl. GST
₹320.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RJK5030DPD-03#J2-HXY
₹271.25 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 42pF
- Ciss-Input Capacitance
- 582pF
- Pd - Power Dissipation
- 83W
- Configuration
- Standalone
- Drain to Source Voltage
- 500V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 5A
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 1.3Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 14nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 3.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.386 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STD5NK50ZT4-HXY#C53262956HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 78 | ₹62.72 · 78 in stock | View |
 | IRFR430BTM-HXY#C53262957HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹81.19 · 48 in stock | View |
 | SPD03N50C3ATMA1-HXY#C53262958HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹88.06 · 48 in stock | View |
 | IRFR430BTF-HXY#C53262959HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹144.33 · 48 in stock | View |
 | IPD50R1K4CEAUMA1-HXY#C53262961HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 10 | ₹49.48 · 10 in stock | View |
