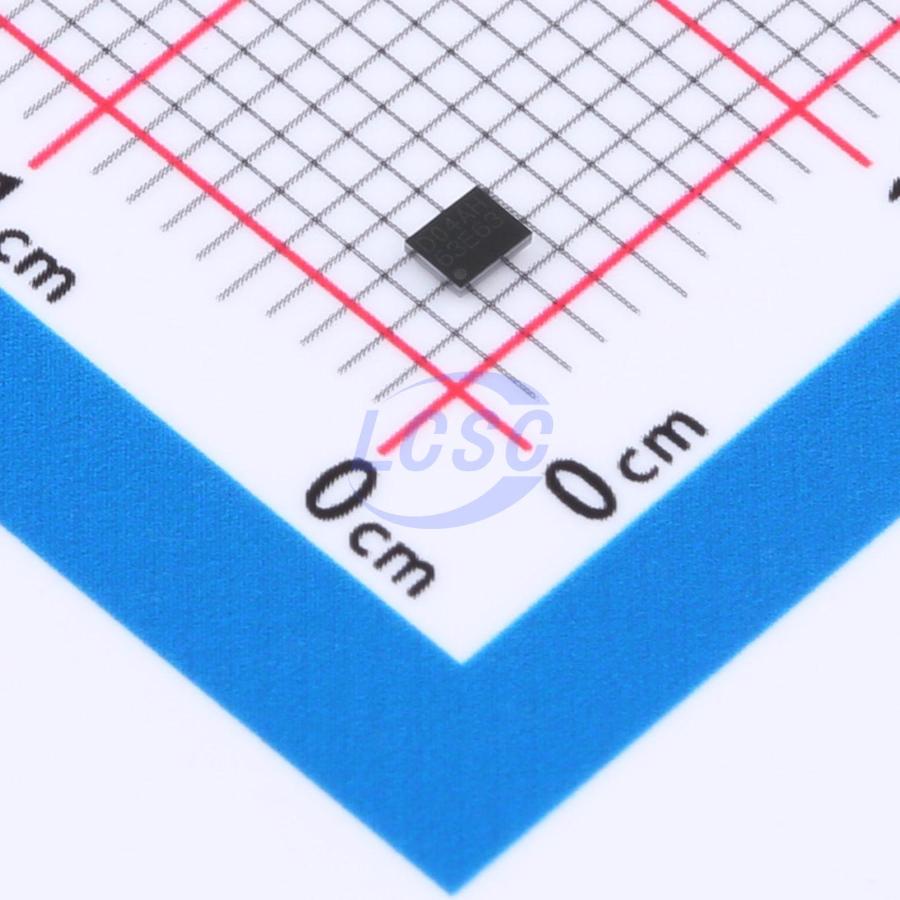

Rockchip

RK860-0

Step-down type 2.4MHz Adjustable 712.5mV~1.5V 6A CSP-20(1.6x2) Voltage Regulators - DC DC Switching Regulators RoHS

CSP-20(1.6x2)ROHS CompliantActive

High Efficiency 2.4MHz Synchronous Step Down Regulator

Manufacturer: Rockchip
Manufacturer part #: RK860-0
Store part #: C19188628
Package / case: CSP-20(1.6x2)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,637 in stock

#C19188628

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹121.86	₹121.86
10+	₹98.44	₹984.40
30+	₹86.74	₹2,602.20
100+	₹75.24	₹7,524.00
500+	₹68.31	₹34,155.00
1,000+	₹64.62	₹64,620.00

Quantity (min 1)

1 × ₹121.86

₹121.86

excl. GST

₹143.79 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

RK860-0

₹121.86 for 1 + GST

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Function: Step-down type
Frequency - Switching: 2.4MHz
Number of Outputs: 1
Features: Hiccup current limiting;Cycle-by-cycle current limiting;Output discharge;Light load efficient mode;Operating status indication;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.7V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 712.5mV~1.5V
Output Current: 6A
Quiescent Current: 70uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.056 g

Overview

The RK860 is a high efficiency 2.4MHz synchronous step down DC/DC regulator IC capable of delivering up to 6A output current. It can operate over a wide input voltage range from 2.7V to 5.5V. And, it integrates a main switch and a synchronous switch with both very low RDS (ON) to minimize the conduction loss. The output voltage can be programmed from 0.7125V to 1.5V with 12.5mV/step or 0. 5V to 1.5V with 6.25mV/step through I²C interface. The RK860 is in a space saving, low profile WLCSP 1.65mm*2.05mm-20 package.

Key features

Input voltage range: 2.7V - 5.5V
2.4MHz switching frequency minimizes the external components
Typical 70uA quiescent current when VIN = 3.8V and Temp = 25°C
Low RDs(ON) for internal switches(PFET/NFET): 24mohm/16ohm @ VIN = 3.8V
Programmable output voltage: 0.7125V to 1.5V with 12.5mV/step or 0.5V to 1.5V with 6.25mV/step
6A continuous output current capability
Capable for 0.24uH inductor and 22uF*2 ceramic capacitor
Hic-cup mode protection for hard short condition
Integrate inner protection: Cycle by cycle OCP and VIN-OVP/UVLO/DIE-TSD
RoHS compliant and Halogen free
Compact package: WLCSP 1.65*2.05-20
