Rockchip

RK860-2

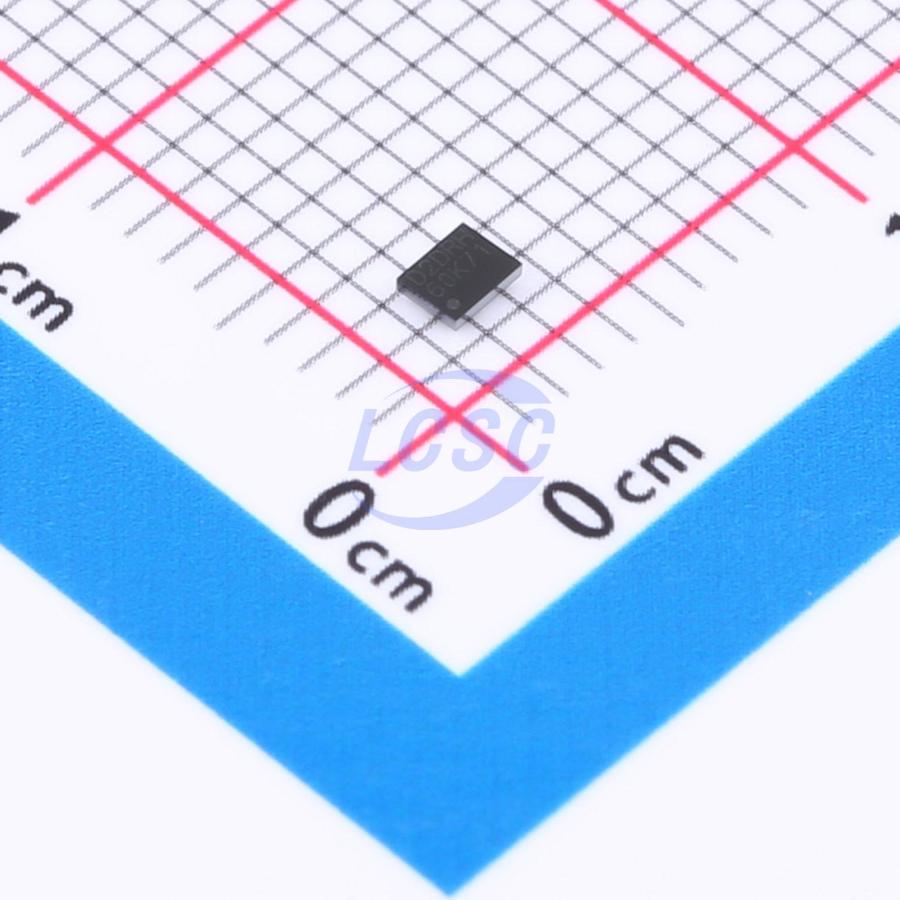

Buck Switching Regulator IC 0.5V~1.5V 1 Output 7A WLCSP-20

WLCSP-20ROHS CompliantActive

IC REG BUCK 7A WLCSP-20

Manufacturer: Rockchip
Manufacturer part #: RK860-2
Store part #: C5156489
Package / case: WLCSP-20
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,380 in stock

#C5156489

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹113.87	₹113.87
10+	₹93.44	₹934.40
30+	₹83.23	₹2,496.90
100+	₹73.02	₹7,302.00
500+	₹56.94	₹28,470.00
1,000+	₹53.90	₹53,900.00

Quantity (min 1)

1 × ₹113.87

₹113.87

excl. GST

₹134.37 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

RK860-2

₹113.87 for 1 + GST

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Function: Step-down type
Frequency - Switching: 2.4MHz
Number of Outputs: 1
Features: Hiccup current limiting;Cycle-by-cycle current limiting;Output discharge;Light load efficient mode;Operating status indication
Topology: Buck
Operating Voltage: 2.7V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 500mV~1.5V
Output Current: 7A
Quiescent Current: 70uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.018 g

Overview

The RK860 is a high efficiency 2.4MHz synchronous step down DC/DC regulator IC capable of delivering up to 7A output current. It can operate over a wide input voltage range from 2.7V to 5.5V. And, it integrates a main switch and a synchronous switch with both very low RDS (ON) to minimize the conduction loss. The output voltage can be programmed from 0.7125V to 1.5V with 12.5mV/step or 0.5V to 1.5V with 6.25mV/step through I²C interface. The RK860 is in a space saving, low profile WLCSP 1.65mm*2.05mm-20 package.

Key features

Input voltage range: 2.7V - 5.5V
2.4MHz switching frequency minimizes the external components
Typical 70uA quiescent current when VIN = 3.8V and Temp = 25°C
Low RDs(ON) for internal switches(PFET/NFET): 24mohm/16ohm @ VIN = 3.8V
Programmable output voltage: 0.7125V to 1.5V with 12.5mV/step or 0.5V to 1.5V with 6.25mV/step
7A continuous output current capability
Capable for 0.24uH inductor and 22uF*2 ceramic capa
