RENERGYDatasheet (PDF)

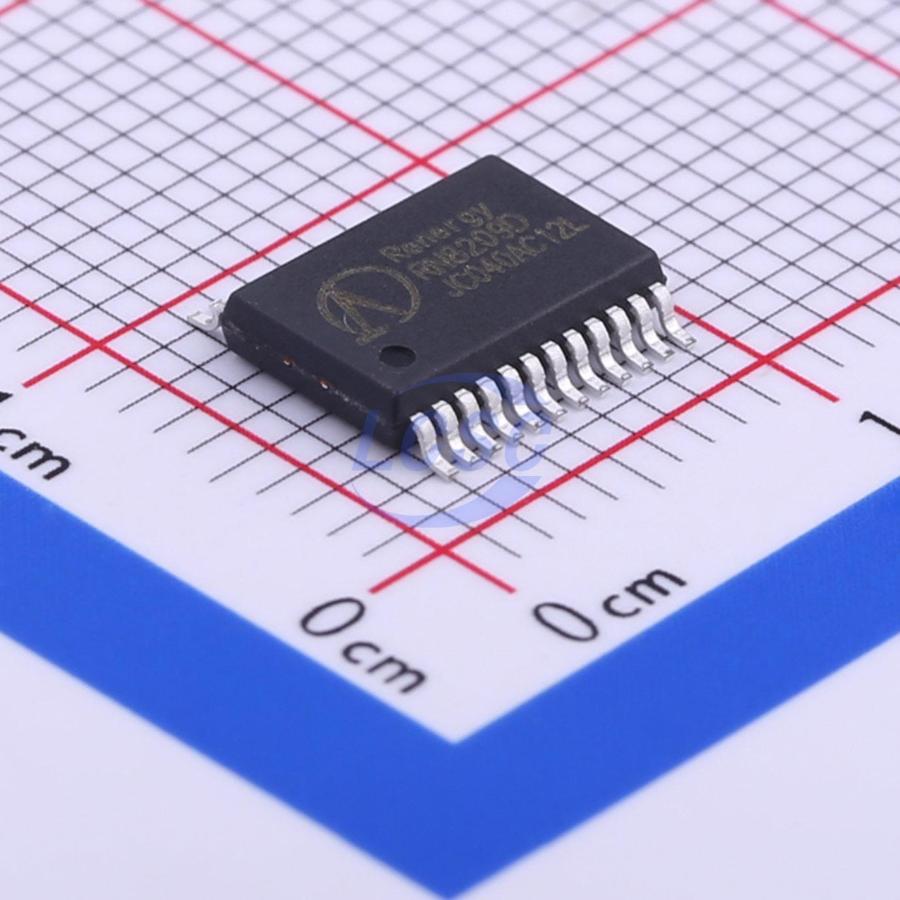

RN8209D
3V~5.5V SSOP-24 Energy Metering
SSOP-24RoHSActive
Single-phase Multi-functional Anti-tampering Special Measurement Chip
- Manufacturer
- RENERGY
- Manufacturer part #
- RN8209D
- Store part #
- C81006
- Package / case
- SSOP-24
- Category
- Energy Metering
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,774 in stock
#C81006
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹136.10 | ₹136.10 |
| 10+ | ₹112.65 | ₹1,126.50 |
| 60+ | ₹99.62 | ₹5,977.20 |
| 120+ | ₹85.08 | ₹10,209.60 |
| 480+ | ₹78.57 | ₹37,713.60 |
| 1,020+ | ₹75.75 | ₹77,265.00 |
1 × ₹136.10
₹136.10
excl. GST
₹160.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 60 per tube
RN8209D
₹136.10 for 1 + GST
Specifications
- Clock Frequency
- 3.579545MHz
- Tolerance
- 0.1%
- Voltage Reference Value
- 1.25V
- Voltage - Supply
- 3V~5.5V
- Dynamic Range
- 8000:1
- Function
- Programmable gain;Pulse output;Built-in reference source;Energy accumulation engine;Interrupt control;Digital calibration and compensation
- Number of Channels
- 3
- Interface
- SPI;UART
- Meter Type
- Single-Phase Energy Metering IC
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 60 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.35 g
Overview
Key features
- 3-channel Σ-Δ ADC
- Active energy accuracy <0.1% over 8000:1 dynamic range, compliant with IEC62053-22:2003; reactive energy accuracy <0.1% over 8000:1 dynamic range, compliant with IEC62053-23:2003; dual-channel current and single-channel voltage RMS measurement, RMS accuracy ±0.1% over 1000:1 dynamic range
- Single pulse frequency output for user-defined energy accumulation point
- Instantaneous sample values from all 3 ADC channels
- Adjustable no-load threshold
- Reverse active power indication
- Voltage channel frequency measurement
- Voltage channel zero-crossing detection
- Reference baseline monitoring
- Adjustable meter constant (HFConst); gain and phase calibration; I offset calibration for active power, reactive power, and RMS; accelerated calibration for small-signal metering; automatic checksum for configuration parameters
- UART RX pin with pin reset functionality
- Supports 5V/3.3V supply; typical power consumption 15mW at 5V, 8mW at 3.3V
- Integrated 1.25V ±1% reference voltage, typical temperature coefficient 5ppm/℃
- RN8209D in SSOP24 lead-free package; RN8209C in SOP16 lead-free package
