ROHMDatasheet (PDF)

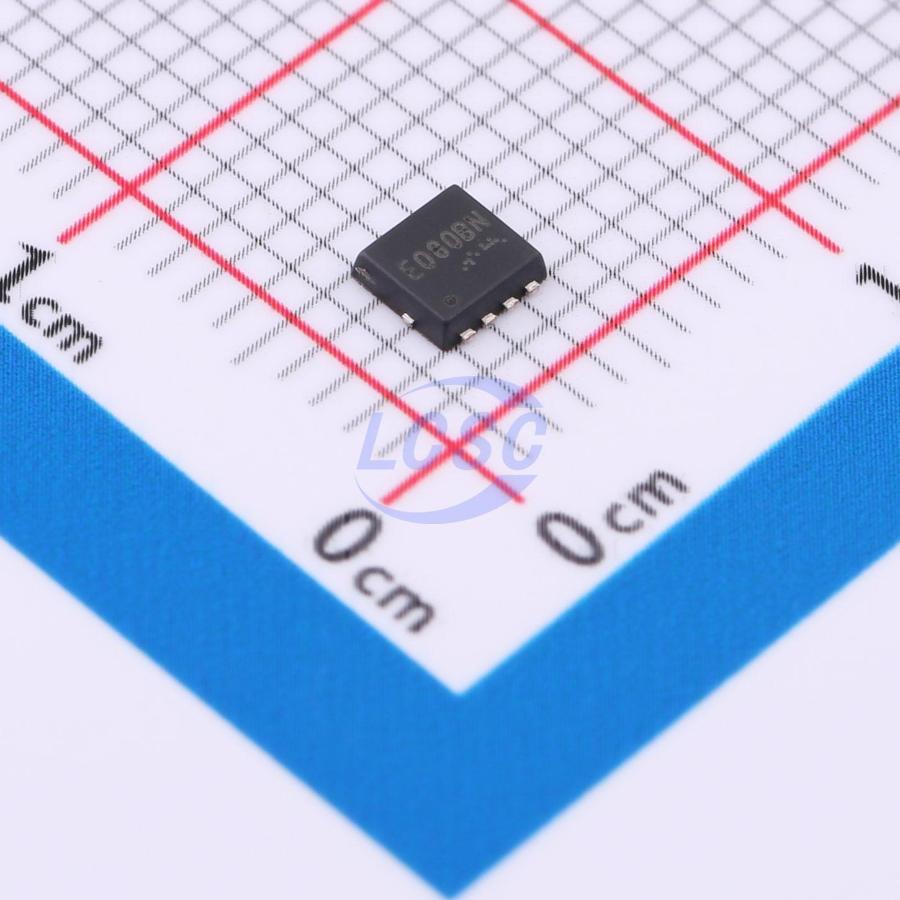

RQ3E080BNTB
N-Channel 30V 15A 14W Surface Mount HSMT-8
HSMT-8ROHS3 CompliantActive
MOSFET N-CH 30V 15A HSMT-8
- Manufacturer
- ROHM
- Manufacturer part #
- RQ3E080BNTB
- Store part #
- C6201360
- Package / case
- HSMT-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
42 in stock
#C6201360
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.61 | ₹78.61 |
| 10+ | ₹62.76 | ₹627.60 |
| 30+ | ₹54.73 | ₹1,641.90 |
| 100+ | ₹46.69 | ₹4,669.00 |
| 500+ | ₹41.91 | ₹20,955.00 |
| 1,000+ | ₹39.53 | ₹39,530.00 |
1 × ₹78.61
₹78.61
excl. GST
₹92.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RQ3E080BNTB
₹78.61 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 90pF
- Current - Continuous Drain(Id)
- 15A
- Ciss-Input Capacitance
- 660pF
- Pd - Power Dissipation
- 14W
- Reverse Transfer Capacitance (Crss)
- 75pF
- RDS(on)
- 11mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 14.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.087 g
Overview
The CPC3902 is a 250V N-channel depletion-mode MOSFET fabricated using a proprietary third-generation vertical DMOS process, achieving high-voltage performance in an economical silicon-gate process. This vertical DMOS process produces rugged devices with high input impedance, suitable for power supply applications. As with all MOS devices, the FET structure prevents thermal runaway and thermally induced secondary breakdown, making the CPC3902 well suited for high-power applications. The CPC3902 is available in a SOT-223 package.
Applications
- Switching applications
Key features
- Low on-resistance
- High-power package (HSMT8)
- Lead-free lead finish; RoHS compliant
- Halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WNM3040-8/TR#C2941865WILLSEMI · PDFN3333-8L | WILLSEMI | PDFN3333-8L | 4,875 | ₹28.99 · 4,875 in stock | View |
 | TPFDMC7692#C19829487TECH PUBLIC · PDFN-8(3.3x3.3) | TECH PUBLIC | PDFN-8(3.3x3.3) | 380 | ₹26.59 · 380 in stock | View |
 | RQ3G100GNTB#C509981ROHM · HSMT-8(3x3.2) | ROHM | HSMT-8(3x3.2) | 861 | ₹56.20 · 861 in stock | View |
 | JSM7410#C2874719JSMSEMI · DFN-8(3.3x3.3) | JSMSEMI | DFN-8(3.3x3.3) | 165 | ₹27.81 · 165 in stock | View |
 | MSK30N03DF#C2902918MSKSEMI · DFN-8(3.3x3.3) | MSKSEMI | DFN-8(3.3x3.3) | 2,869 | ₹42.15 · 2,869 in stock | View |
