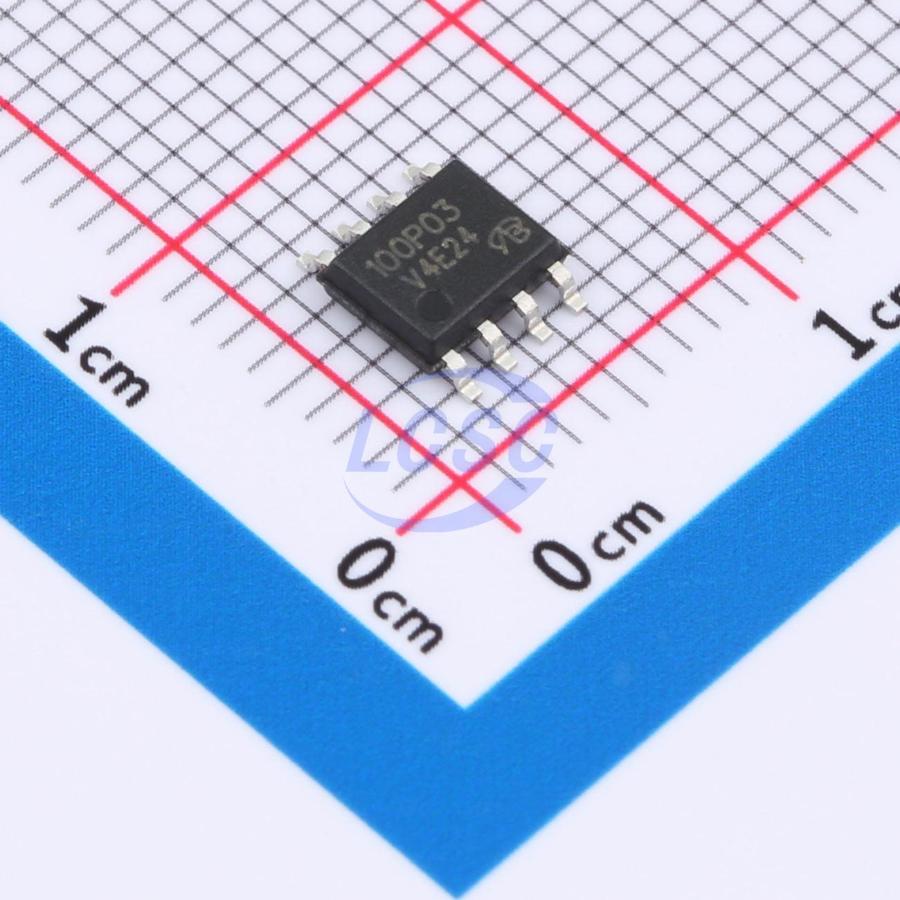

RRH100P03TB-VB
P-Channel 30V 11.6A 2.5W Surface Mount SO-8
SO-8RoHSActive
MOSFET P-CH 30V 11.6A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- RRH100P03TB-VB
- Store part #
- C5444642
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C5444642
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.72 | ₹66.72 |
| 10+ | ₹53.67 | ₹536.70 |
| 30+ | ₹48.25 | ₹1,447.50 |
| 100+ | ₹41.29 | ₹4,129.00 |
| 500+ | ₹31.73 | ₹15,865.00 |
| 1,000+ | ₹29.99 | ₹29,990.00 |
1 × ₹66.72
₹66.72
excl. GST
₹78.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RRH100P03TB-VB
₹66.72 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 380pF
- Current - Continuous Drain(Id)
- 11.6A
- Ciss-Input Capacitance
- 1.96nF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 325pF
- RDS(on)
- 11mΩ@10V;12mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 43nC@10V;22nC@4.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
Applications
- Load Switch - Laptop - Desktop Computer
Key features
- Halogen-free product compliant with IEC 61249-2-21
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- 100% unclamped inductive switching (UIS) tested
- RoHS compliant
- Halogen-free available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBA2311#C416232VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 1 | ₹72.90 · 1 in stock | View |
 | AO4425-VB#C5137426VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 104 | ₹68.02 · 104 in stock | View |
 | AM4825P-T1-PF-VB#C5444618VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 9 | ₹68.02 · 9 in stock | View |
 | AO4407A-VB#C557949VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 200 | ₹56.84 · 200 in stock | View |
 | IRF9393TRPBF-VB#C7429028VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 33 | ₹63.23 · 33 in stock | View |
