RUNIC

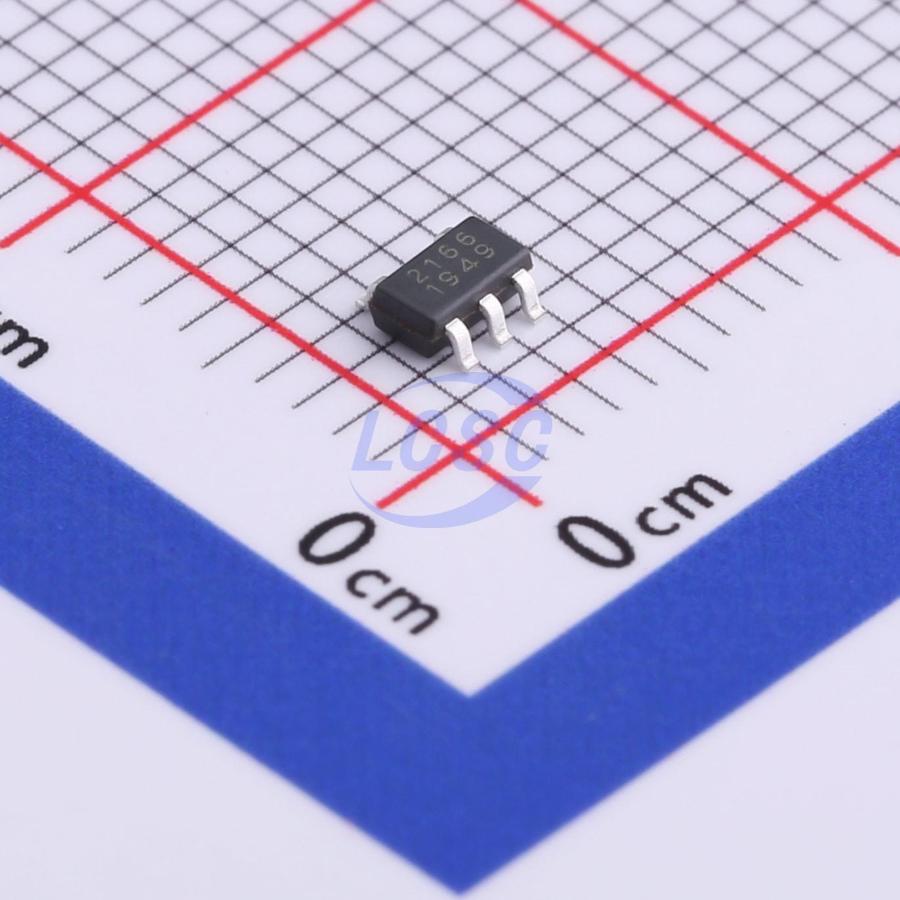

RS2166XF5

4.5Ω 1 1.8V~5.5V SOT-23-5 Analog Switches, Multiplexers, Demultiplexers RoHS

SOT-23-5ROHS3 CompliantActive

4.5Ω Single Bilateral SPST Analog Switch

Manufacturer: RUNIC
Manufacturer part #: RS2166XF5
Store part #: C783418
Package / case: SOT-23-5
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,675 in stock

#C783418

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹18.64	₹93.20
50+	₹17.81	₹890.50
150+	₹14.50	₹2,175.00
500+	₹10.36	₹5,180.00

Quantity (min 5, multiples of 5)

5 × ₹18.64

₹93.20

excl. GST

₹109.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS2166XF5

₹93.20 for 5 + GST

Specifications

Features: Bidirectional analog channel
Operating Temperature: -40℃~+125℃
Ron: 4.5Ω
Number of Channels: 1
Voltage - Supply: 1.8V~5.5V
Con: 15pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.051 g

Overview

The RS2166 is a bidirectional 1-channel single-pole single-throw (SPST) analog switch, which is designed to operate from 1.8V to 5.5V. The RS2166 device can handle both analog and digital signals. It features bandwidth(300MHz) and low on-resistance (4.5Ω TYP). Each switch section has its own enable-input control (SEL). A high-level voltage applied to SEL turns on the associated switch section. Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.
