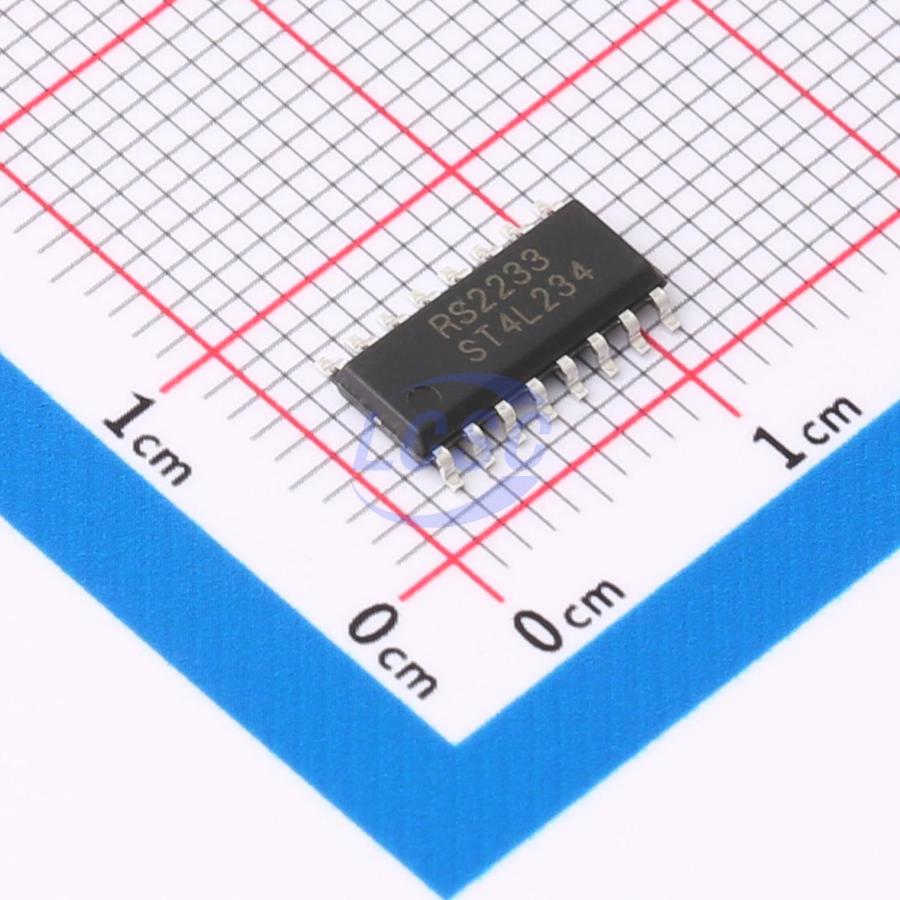

RUNIC

RS2233YS16

14Ω@5V 4 1.8V~5.5V SOIC-16 Analog Switches, Multiplexers, Demultiplexers

SOIC-16RoHSActive

Manufacturer: RUNIC
Manufacturer part #: RS2233YS16
Store part #: C5372467
Package / case: SOIC-16
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,995 in stock

#C5372467

Stock & price checked 38 h ago

Quantity	Unit price	Pack price
5+	₹51.70	₹258.50
50+	₹38.72	₹1,936.00
150+	₹33.14	₹4,971.00
500+	₹25.96	₹12,980.00

Quantity (min 5, multiples of 5)

5 × ₹51.70

₹258.50

excl. GST

₹305.03 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS2233YS16

₹258.50 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Bidirectional analog channel
Operating Temperature: -40℃~+85℃
Ron: 14Ω@5V
Number of Channels: 4
Voltage - Supply: 1.8V~5.5V
Con: 18pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.213 g

Overview

RS2233 is an analog IC fabricated in CMOS process, configured as a quad bidirectional SPDT switch. This CMOS device operates from a supply voltage of 1.8V to 5.5V. The select input controls the data flow direction. When the output enable input is high, the FET multiplexer/demultiplexer is disabled. The device is a digitally controlled analog switch featuring low on-resistance and low crosstalk. RS2233 is available in green SOP16, SSOP16, and TSSOP16 packages, with an operating temperature range of -40℃ to +85℃.
