RUNICDatasheet (PDF)

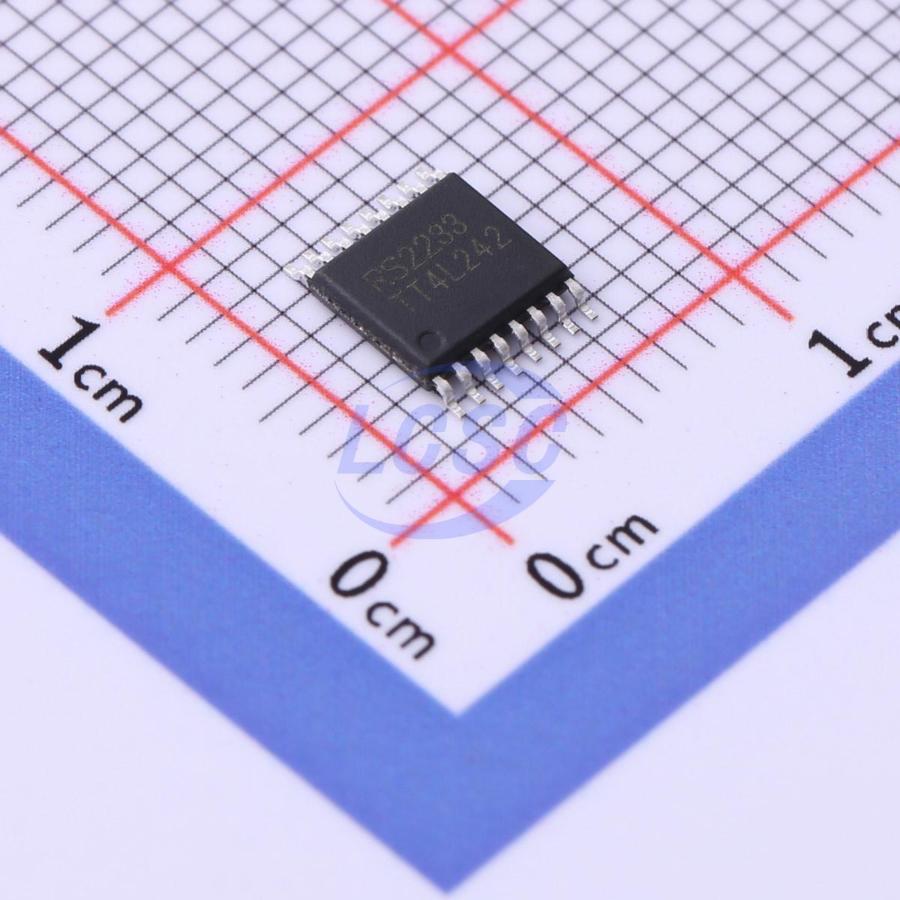

RS2233YTSS16
4 3Ω 1.8V~5.5V TSSOP-16 Analog Switches, Multiplexers, Demultiplexers
TSSOP-16RoHSActive
Wide-Bandwidth 4-Channel SPDT Video Analog Switch
- Manufacturer
- RUNIC
- Manufacturer part #
- RS2233YTSS16
- Store part #
- C4354909
- Package / case
- TSSOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,770 in stock
#C4354909
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹56.16 | ₹280.80 |
| 50+ | ₹42.07 | ₹2,103.50 |
| 150+ | ₹36.00 | ₹5,400.00 |
| 500+ | ₹28.19 | ₹14,095.00 |
5 × ₹56.16
₹280.80
excl. GST
₹331.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS2233YTSS16
₹280.80 for 5 + GST
Specifications
- Features
- Bidirectional analog channel
- Operating Temperature
- -40℃~+85℃
- Number of Channels
- 4
- Ron
- 3Ω
- Voltage - Supply
- 1.8V~5.5V
- Con
- 8pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
The RS2233 is a CMOS analog IC configured as a quad, bidirectional, single-pole/double-throw (SPDT) switches. This CMOS device can operate from 1.8 V to 5.5 V. The select (IN) input control the data flow. The FET multiplexers/demultiplexers are disabled when the output-enable (OE) input is high. The device are digitally-controlled analog switches. It has low on-resistance (3Ω TYP) and low crosstalk (-58dB at 10MHz TYP). The RS2233 is available in Green SOIC-16(SOP16), SSOP-16, TSSOP-16 packages. It operates over an ambient temperature range of -40°C to +85°C.
Applications
- Game Consoles
- Audio and Video Switching
- DVD Players
- Personal Video Recorders
- Desktop Video Editors
- Hard Disk Recorders
Key features
- Wide Bandwidth: 220MHz
- Single Supply Operation +1.8V to +5.5V
- Low ON Resistance, 3Ω(TYP)
- Low Crosstalk: -58dB at 10MHz (TYP)
- Rail-to-Rail Operation
- Fast Switching Time
- Operating Temperature Range: -40°C to +85°C
- PACKAGES: SOIC-16(SOP16), SSOP-16, TSSOP-16
