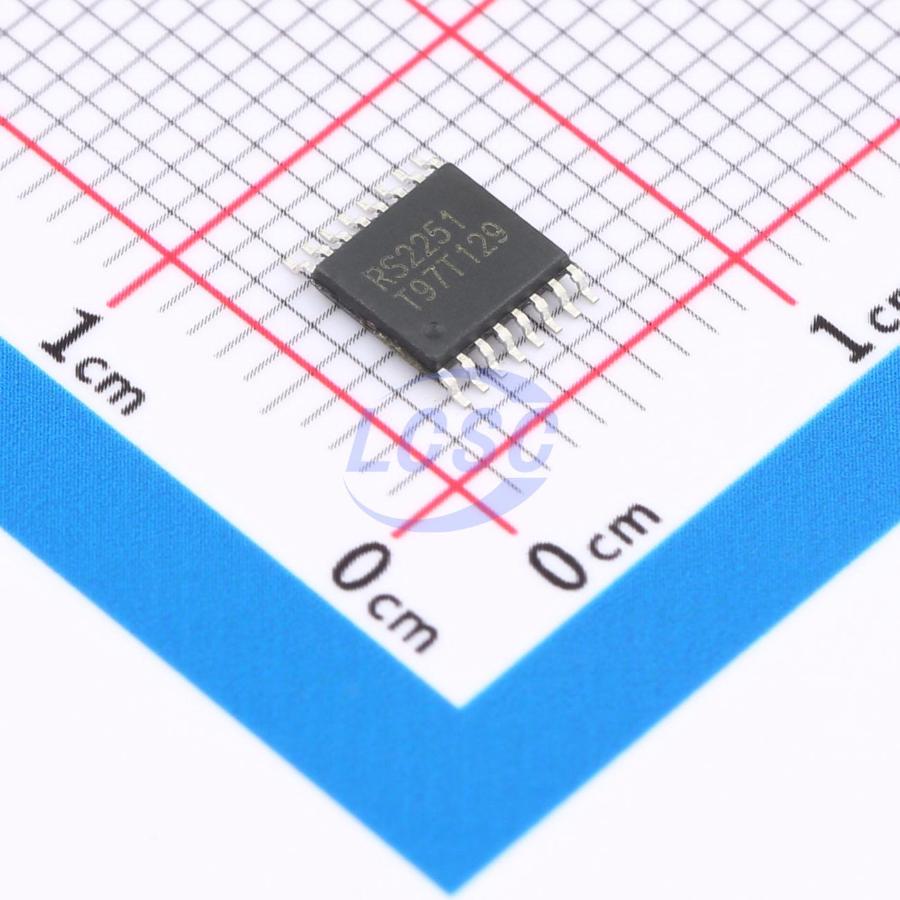

RUNIC

RS2251XTSS16

2.5V~5.5V 1 48Ω TSSOP-16 Analog Switches, Multiplexers, Demultiplexers RoHS

TSSOP-16ROHS3 CompliantActive

CMOS Single 8-Channel Analog Multiplexer/Demultiplexer

Manufacturer: RUNIC
Manufacturer part #: RS2251XTSS16
Store part #: C255480
Package / case: TSSOP-16
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

12,630 in stock

#C255480

Stock & price checked 46 h ago

Quantity	Unit price	Pack price
5+	₹34.64	₹173.20
50+	₹25.86	₹1,293.00
150+	₹22.11	₹3,316.50
500+	₹17.41	₹8,705.00

Quantity (min 5, multiples of 5)

5 × ₹34.64

₹173.20

excl. GST

₹204.38 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS2251XTSS16

₹173.20 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Bidirectional analog channel;Glitch-free switching
Operating Temperature: -40℃~+125℃
Voltage - Supply: 2.5V~5.5V
Number of Channels: 1
Ron: 48Ω
Con: 16pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.14 g

Overview

The RS2251 is a CMOS analog IC configured as an 8-channel multiplexer. This CMOS device can operate from 2.5 V to 5.5 V. The RS2251 device are digitally-controlled analog switches. It has low on-resistance (48Ω TYP) and very low off-leakage current (1nA TYP). The RS2251 is available in Green SOIC-16, SSOP16, TSSOP-16 and QFN-3x3-16L packages. It operates over an ambient temperature range of -40°C to +125°C.
