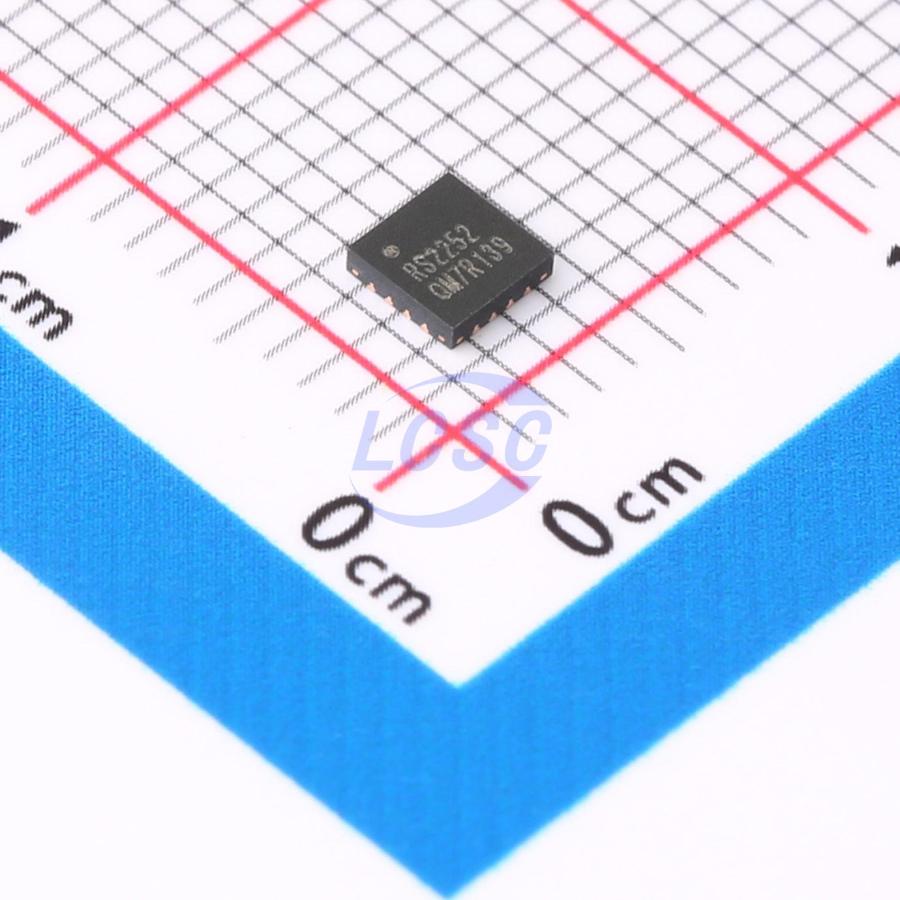

RUNIC

RS2252XTQC16

4 2.5V~5.5V 48Ω QFN-16L(3x3) Analog Switches, Multiplexers, Demultiplexers

QFN-16L(3x3)RoHSActive

CMOS Two 4-Channel Analog Multiplexer/Demultiplexer

Manufacturer: RUNIC
Manufacturer part #: RS2252XTQC16
Store part #: C2847295
Package / case: QFN-16L(3x3)
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

480 in stock

#C2847295

Stock & price checked 27 h ago

Quantity	Unit price	Pack price
5+	₹35.28	₹176.40
50+	₹26.34	₹1,317.00
150+	₹22.54	₹3,381.00
500+	₹17.74	₹8,870.00
2,500+	₹16.71	₹41,775.00
5,000+	₹15.03	₹75,150.00

Quantity (min 5, multiples of 5)

5 × ₹35.28

₹176.40

excl. GST

₹208.15 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

RS2252XTQC16

₹176.40 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Bidirectional analog channel;Glitch-free switching
Operating Temperature: -40℃~+125℃
Number of Channels: 4
Voltage - Supply: 2.5V~5.5V
Ron: 48Ω
Con: 16pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.079 g

Overview

The RS2252 is a CMOS analog IC configured as two 4-channel multiplexers. This CMOS device can operate from 2.5V to 5.5V. The RS2252 device are digitally-controlled analog switches. It has low on-resistance (48Ω TYP) and very low off-leakage current (1nA TYP). The RS2252 is available in Green SOIC-16, SSOP16, TSSOP-16 and QFN-3x3-16L packages. It operates over an ambient temperature range of -40°C to +125°C.
