RUNIC

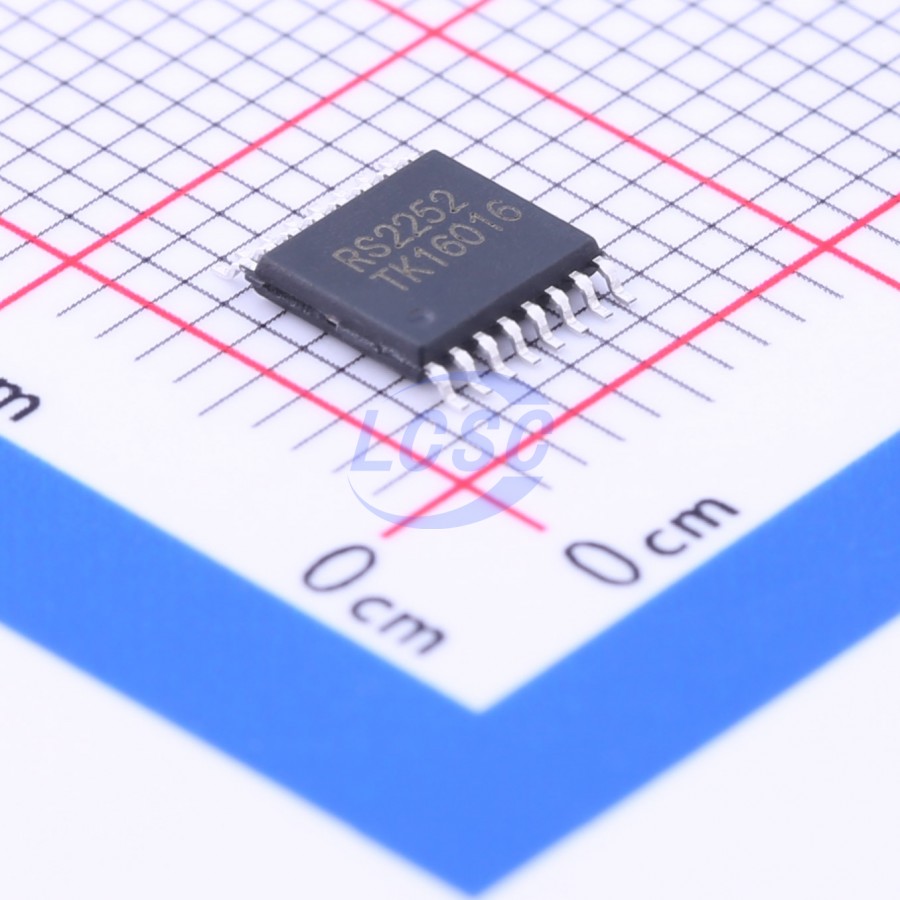

RS2252XTSS16

2.5V~5.5V 2 48Ω TSSOP-16 Analog Switches, Multiplexers, Demultiplexers RoHS

TSSOP-16ROHS3 CompliantActive

CMOS Two 4-Channel Analog Multiplexer/Demultiplexer

Manufacturer: RUNIC
Manufacturer part #: RS2252XTSS16
Store part #: C237023
Package / case: TSSOP-16
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,875 in stock

#C237023

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹35.22	₹176.10
50+	₹26.33	₹1,316.50
150+	₹22.52	₹3,378.00
500+	₹17.71	₹8,855.00
2,500+	₹16.68	₹41,700.00
4,000+	₹14.80	₹59,200.00

Quantity (min 5, multiples of 5)

5 × ₹35.22

₹176.10

excl. GST

₹207.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS2252XTSS16

₹176.10 for 5 + GST

Specifications

Features: Bidirectional analog channel;Glitch-free switching
Operating Temperature: -40℃~+125℃
Voltage - Supply: 2.5V~5.5V
Number of Channels: 2
Ron: 48Ω
Con: 16pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.14 g

Overview

The RS2252 device are digitally-controlled analog switches. It has low on-resistance (48Ω TYP) and very low off-leakage current (1nA TYP). The RS2252 is available in Green SOIC-16, SSOP16, TSSOP-16 and TQFN-3x3-16L packages. It operates over an ambient temperature range of -40°C to +125°C.
