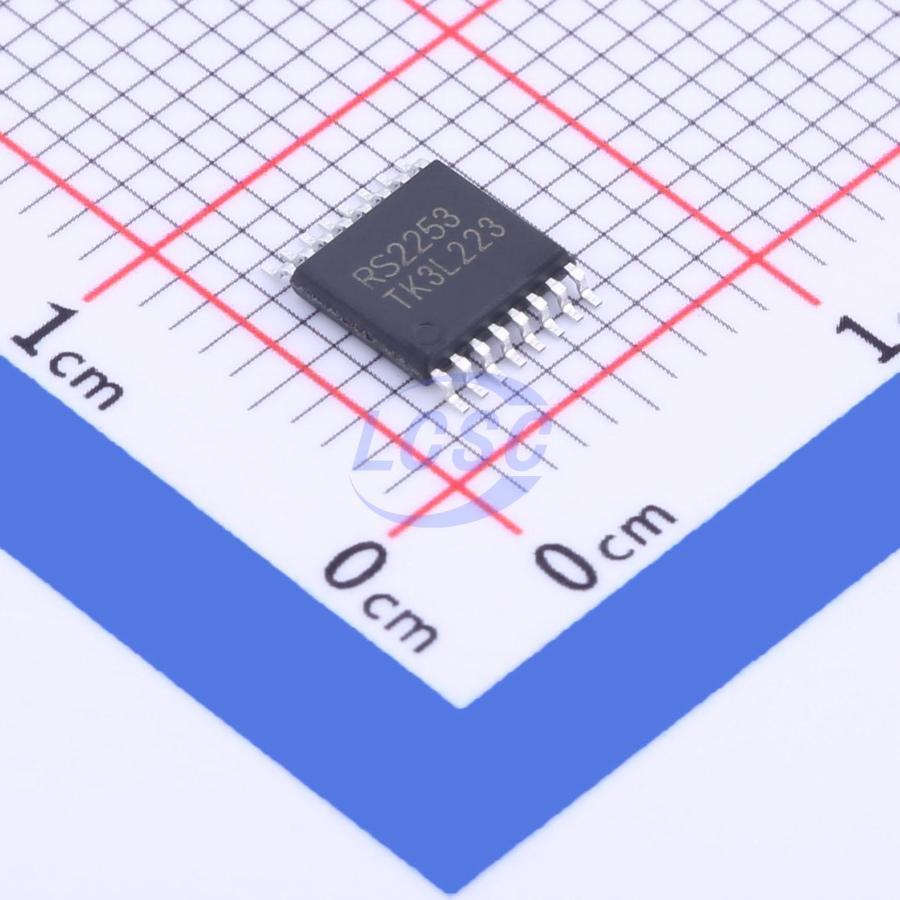

RUNIC

RS2253XTSS16

2.5V~5.5V 48Ω 3 TSSOP-16 Analog Switches, Multiplexers, Demultiplexers RoHS

TSSOP-16ROHS3 CompliantActive

CMOS Triple 2-Channel Analog Multiplexer/Demultiplexer

Manufacturer: RUNIC
Manufacturer part #: RS2253XTSS16
Store part #: C2762339
Package / case: TSSOP-16
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,925 in stock

#C2762339

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹35.39	₹176.95
50+	₹26.43	₹1,321.50
150+	₹22.58	₹3,387.00
500+	₹17.79	₹8,895.00

Quantity (min 5, multiples of 5)

5 × ₹35.39

₹176.95

excl. GST

₹208.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS2253XTSS16

₹176.95 for 5 + GST

Specifications

Features: Bidirectional analog channel;Glitch-free switching
Operating Temperature: -40℃~+125℃
Voltage - Supply: 2.5V~5.5V
Ron: 48Ω
Number of Channels: 3
Con: 16pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.137 g

Overview

The RS2253 is a CMOS analog IC configured as three single-pole/double-throw (SPDT) switches. This CMOS device can operate from 2.5 V to 5.5 V. The RS2253 device are digitally-controlled analog switches. It has low on-resistance (48Ω TYP) and very low off-leakage current (1nA TYP). The RS2253 is available in Green SOIC-16, SSOP16, TSSOP-16 and QFN-3x3-16L packages. It operates over an ambient temperature range of -40°C to +125°C.
