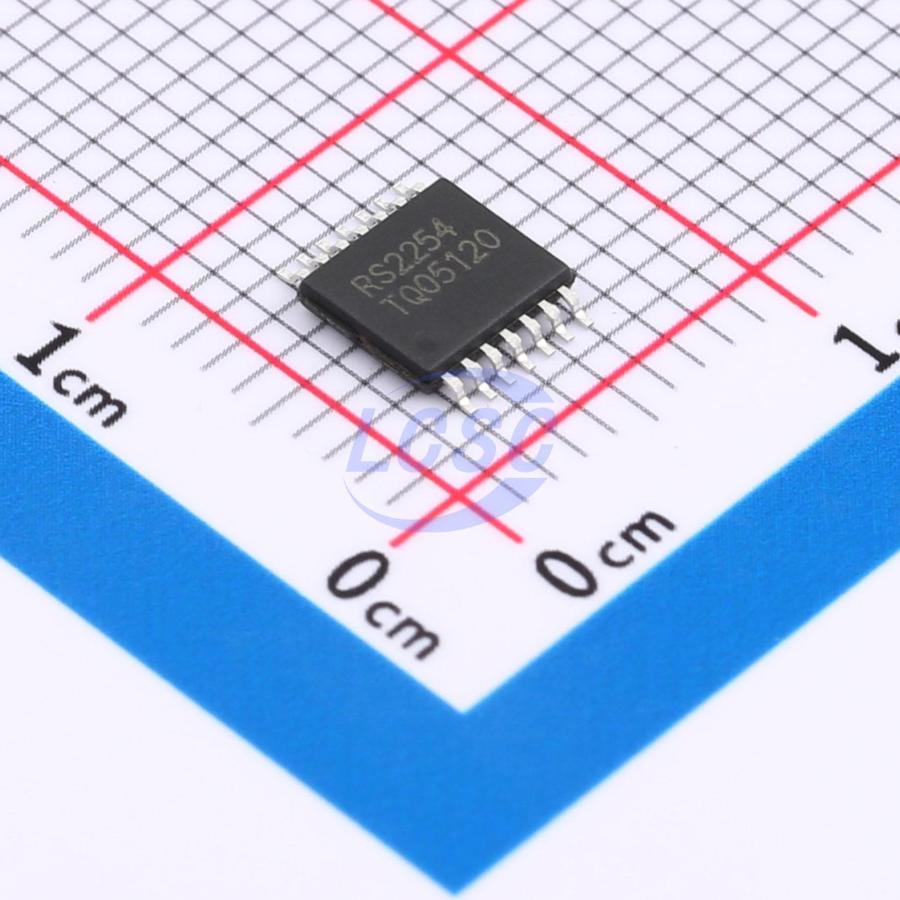

RS2254XQ RUNIC
RUNIC

RS2254XQ

24Ω 2.5V~5.5V 4 TSSOP-14 Analog Switches, Multiplexers, Demultiplexers RoHS

TSSOP-14ROHS3 CompliantActive

CMOS Quad Bilateral Analog Switch

Manufacturer
RUNIC
Manufacturer part #
RS2254XQ
Store part #
C2764997
Package / case
TSSOP-14
Category
Analog Switches, Multiplexers, Demultiplexers
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,650 in stock

#C2764997

Stock & price checked 7 days ago

QuantityUnit pricePack price
5+₹33.13₹165.65
50+₹26.92₹1,346.00
150+₹20.70₹3,105.00
500+₹16.56₹8,280.00

5 × ₹33.13

₹165.65

excl. GST

₹195.47 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 7–10 working days
  • GST invoice with every order
  • Standard pack: 4,000 per reel

RS2254XQ

₹165.65 for 5 + GST

Specifications

Features
Bidirectional analog channel
Operating Temperature
-40℃~+125℃
Ron
24Ω
Voltage - Supply
2.5V~5.5V
Number of Channels
4
Con
16pF

Packaging & compliance

RoHS
ROHS3 Compliant
Lifecycle
Active
ECCN
EAR99
Packaging
Tape & Reel (TR)
Standard pack
4,000 / Reel
Sold per
Piece
Minimum order
5 (multiples of 5)
Unit weight
0.166 g

Overview

Applications

  • Transmission gate logic implementation
  • Analog and digital multiplexing and demultiplexing
  • A/D and D/A conversion
  • Signal gating
  • Battery-powered devices
  • Factory automation
  • Communication circuits

Key features

  • -3dB Bandwidth: 180MHz
  • Single-supply operating voltage: 2.5V to 5.5V
  • Low on-resistance: 24Ω (typical) at 5V supply
  • High off-state isolation: -83dB (RL=50Ω, f=1MHz)
  • Channel-to-channel on-resistance matching
  • Ultra-low off-state switch leakage current: 1nA (typical) @25℃
  • Operating temperature range: -40℃ to +125℃
  • Package: SOIC-14 (SOP14) and TSSOP-14

Alternatives

Similar parts — check the datasheet before substituting.

RS2268XQ#C5372474RUNIC · TSSOP-14₹45.86 · 2,450 in stockView
