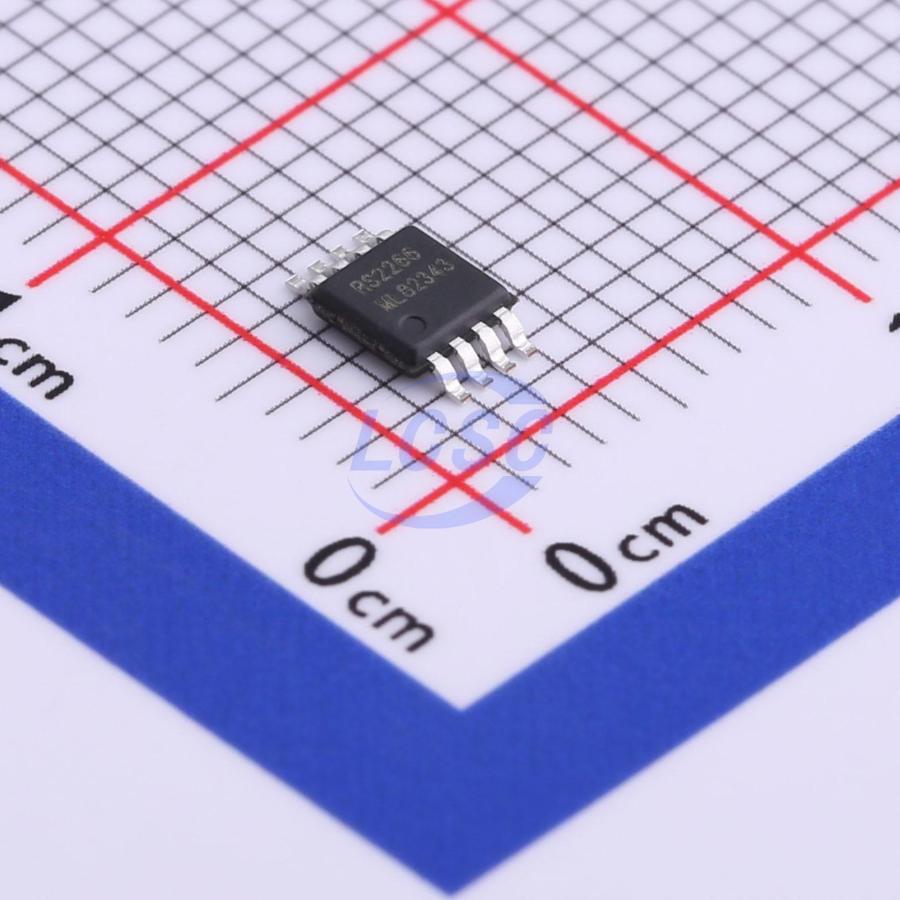

RUNIC

RS2266XM

2 Circuit IC SWITCH 1:1 4.5Ω MSOP-8

MSOP-8ROHS3 CompliantActive

Dual-channel bidirectional SPST analog switch

Manufacturer: RUNIC
Manufacturer part #: RS2266XM
Store part #: C783422
Package / case: MSOP-8
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,085 in stock

#C783422

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹36.71	₹183.55
50+	₹27.41	₹1,370.50
150+	₹23.43	₹3,514.50
500+	₹18.46	₹9,230.00

Quantity (min 5, multiples of 5)

5 × ₹36.71

₹183.55

excl. GST

₹216.59 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS2266XM

₹183.55 for 5 + GST

Specifications

Features: Bidirectional analog channel
Operating Temperature: -40℃~+125℃
Ron: 4.5Ω
Number of Channels: 2
Voltage - Supply: 1.8V~5.5V
Con: 15pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.065 g

Overview

RS2266 is a bidirectional dual-channel single-pole single-throw (SPST) analog switch operating over a supply voltage range of 1.8V to 5.5V. The RS2266 can handle both analog and digital signals, featuring high bandwidth (300MHz) and low on-resistance (4.5Ω typical). Each switch section has its own input enable control pin SEL; applying a high voltage to SEL turns on the corresponding switch section. Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing in analog-to-digital and digital-to-analog conversion systems.
