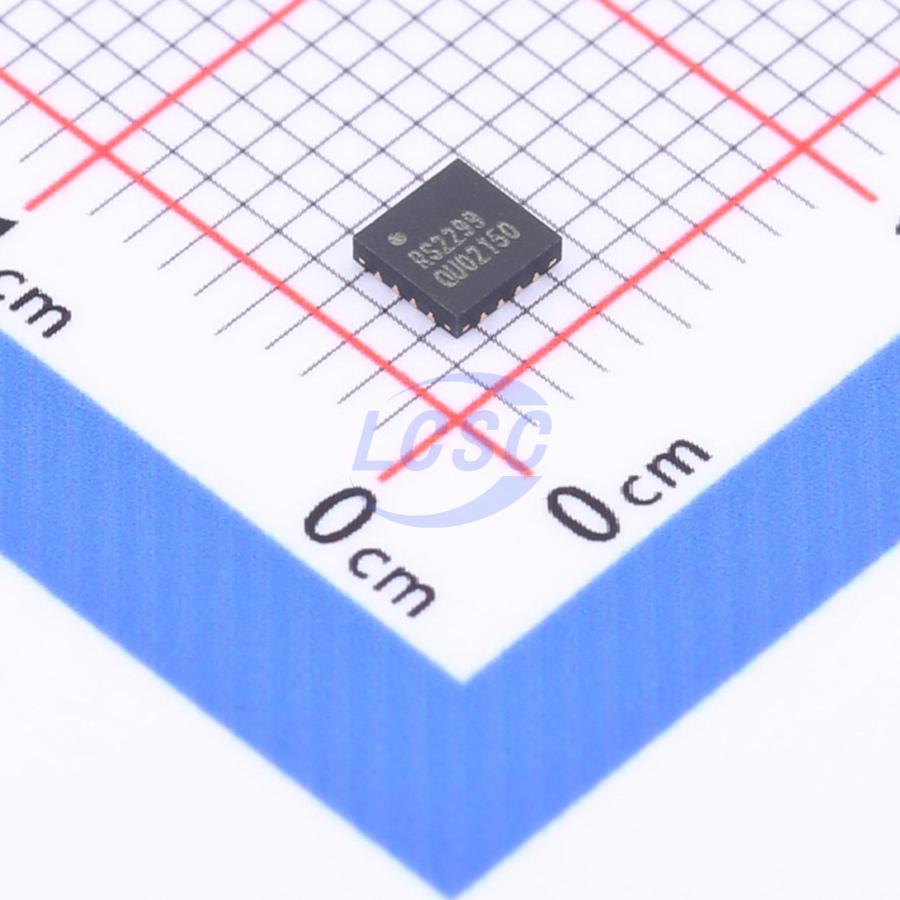

RUNIC

RS2299XTQC16

4.5Ω 4 1.8V~5.5V QFN-16-EP(3x3) Analog Switches, Multiplexers, Demultiplexers RoHS

QFN-16-EP(3x3)ROHS3 CompliantActive

4-Channel 2:1 Multiplexer -Demultiplexer With Two Controls

Manufacturer: RUNIC
Manufacturer part #: RS2299XTQC16
Store part #: C2764996
Package / case: QFN-16-EP(3x3)
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,910 in stock

#C2764996

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹52.26	₹261.30
50+	₹37.08	₹1,854.00
150+	₹30.36	₹4,554.00

Quantity (min 5, multiples of 5)

5 × ₹52.26

₹261.30

excl. GST

₹308.33 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

RS2299XTQC16

₹261.30 for 5 + GST

Specifications

Features: Bidirectional analog channel;Glitch-free switching
Operating Temperature: -40℃~+125℃
Ron: 4.5Ω
Number of Channels: 4
Voltage - Supply: 1.8V~5.5V
Con: 15pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.125 g

Overview

The RS2299 is a bidirectional 4-channel single-pole double-throw (SPDT) analog switch with two control inputs, which is designed to operate from 1.8V to 5.5V. This device is also known as a 2 channel double-pole double-throw (DPDT) configuration. The RS2299 device can handle both analog and digital signals. It features high-bandwidth(300MHz) and low on-resistance (4.5Ω TYP). Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.
