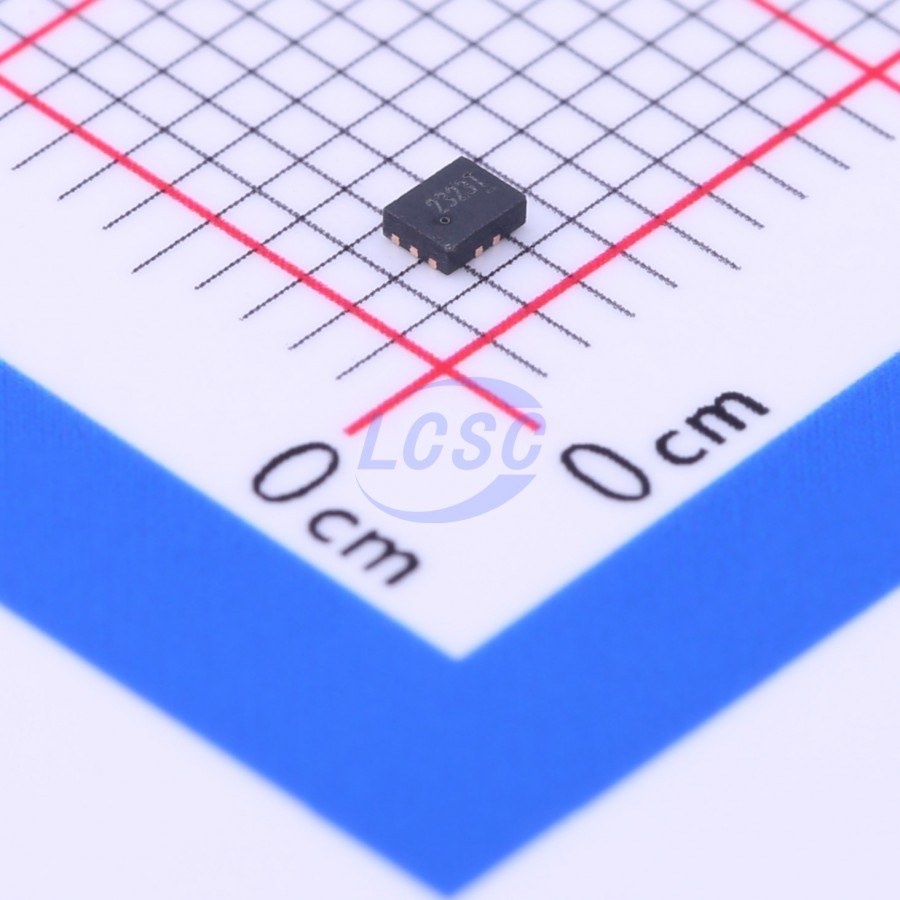

RUNIC

RS2323XUTQK10

2 1.8V~5.5V 600mΩ WQFN-10(1.4x1.8) Analog Switches, Multiplexers, Demultiplexers

WQFN-10(1.4x1.8)RoHSActive

Ultra Low ON-Resistance, Low Voltage, Dual, SPDT Analog Switch

Manufacturer: RUNIC
Manufacturer part #: RS2323XUTQK10
Store part #: C255485
Package / case: WQFN-10(1.4x1.8)
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,350 in stock

#C255485

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹26.14	₹130.70
50+	₹17.38	₹869.00

Quantity (min 5, multiples of 5)

5 × ₹26.14

₹130.70

excl. GST

₹154.23 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS2323XUTQK10

₹130.70 for 5 + GST

Specifications

Features: Glitch-free switching
Operating Temperature: -40℃~+125℃
Number of Channels: 2
Voltage - Supply: 1.8V~5.5V
Ron: 600mΩ
Con: 350pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.06 g

Overview

The RS2323 is a dual, low on-resistance, single-pole double-throw (SPDT) analog switch that is designed to operate from 1.8 V to 5.5 V. The RS2323 device can handle both analog and digital signals. It features fast switching speeds (50ns) and low on-resistance (0.6Ω TYP). Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.

Applications

Wearable Devices
Battery-Operated Equipment
Signal Gating, Chopping, Modulation or Demodulation (Modem)
Portable Computing
Cell Phones

Key features

-3dB Bandwidth: 30MHz High Speed, Typically 50ns
Supply Range: +1.8V to +5.5V
Low ON-State Resistance, 0.6Ω(TYP)
Break-Before-Make Switching
Rail-to-Rail Operation
TTL/CMOS Compatible
Extended Industrial Temperature Range: -40°C to +125°C
