RUNICDatasheet (PDF)

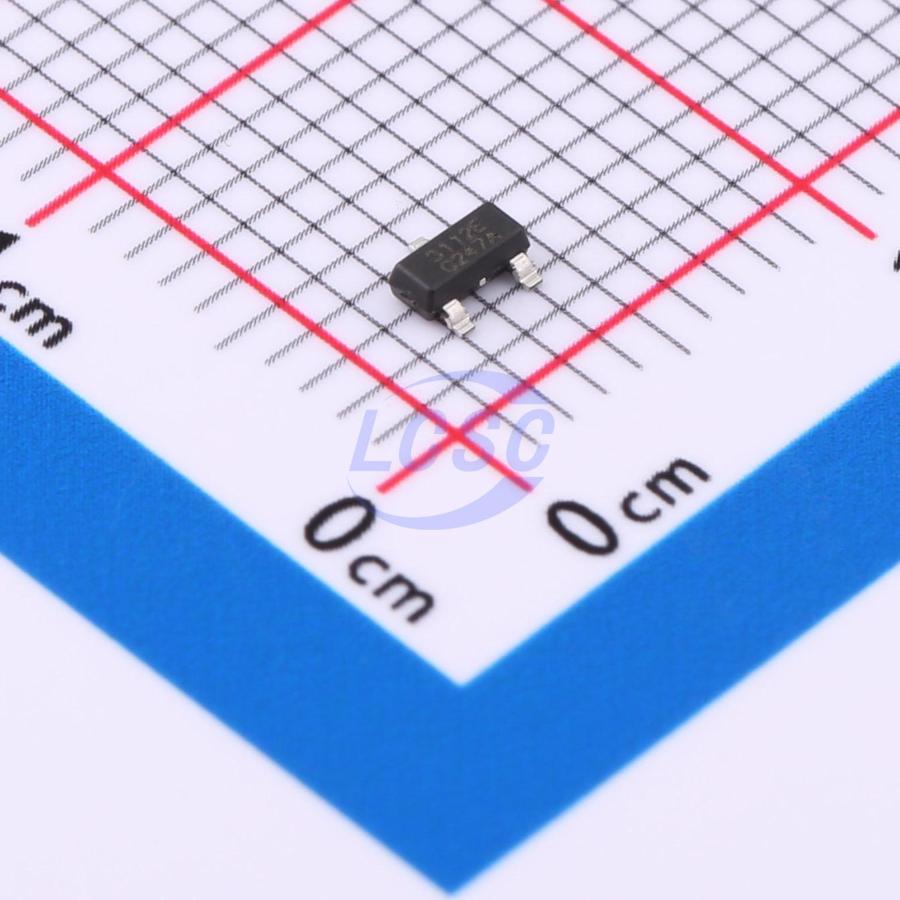

RS3112-3.0XSF3
3V ±0.1% 3.3V~5V 10mA Fixed SOT-23 Voltage Reference
SOT-23RoHSActive
Low-Noise, Very Low Drift, Precision Voltage Reference
- Manufacturer
- RUNIC
- Manufacturer part #
- RS3112-3.0XSF3
- Store part #
- C5372522
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,090 in stock
#C5372522
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹181.70 | ₹181.70 |
| 10+ | ₹139.63 | ₹1,396.30 |
| 30+ | ₹118.61 | ₹3,558.30 |
| 100+ | ₹97.57 | ₹9,757.00 |
1 × ₹181.70
₹181.70
excl. GST
₹214.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS3112-3.0XSF3
₹181.70 for 1 + GST
Specifications
- Quiescent Current
- 150uA
- Output Voltage
- 3V
- Tolerance
- ±0.1%
- Voltage - Supply
- 3.3V~5V
- Output Current
- 10mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.044 g
Overview
The RS3112 is a family of low-noise, low-drift, very high precision voltage references. These references are capable of both sinking and sourcing current, and have excellent line and load regulation. Excellent temperature drift (20 ppm/℃) and high accuracy (0.1%) are achieved using proprietary design techniques with 150uA(typical) quiescent current. These features, combined with low noise, make the RS3112 family ideal for use in high-precision data acquisition systems. The RS3112 is available in Green SOIC-8(SOP8) and SOT23 packages. It operates over an ambient temperature range of -40℃ to +125℃.
Applications
- Precision Data Acquisition Systems
- Semiconductor Test Equipment
- Medical Instrumentation
- Industrial Process Controls
- Pressure and Temperature Transmitters
- Lab and Field Instrumentation
Key features
- Low Temperature Drift: 20 ppm/°C (Max)
- High Accuracy: 0.1% Maximum
- Low Noise: 35 μVₚ₋ₚ/V
- Low IQ: 150 μA (Typical)
- Operating Temperature Range: -40°C to +125°C
- High Output Current: ±10 mA
- Micro SIZE PACKAGES: SOIC-8(SOP8), SOT23
