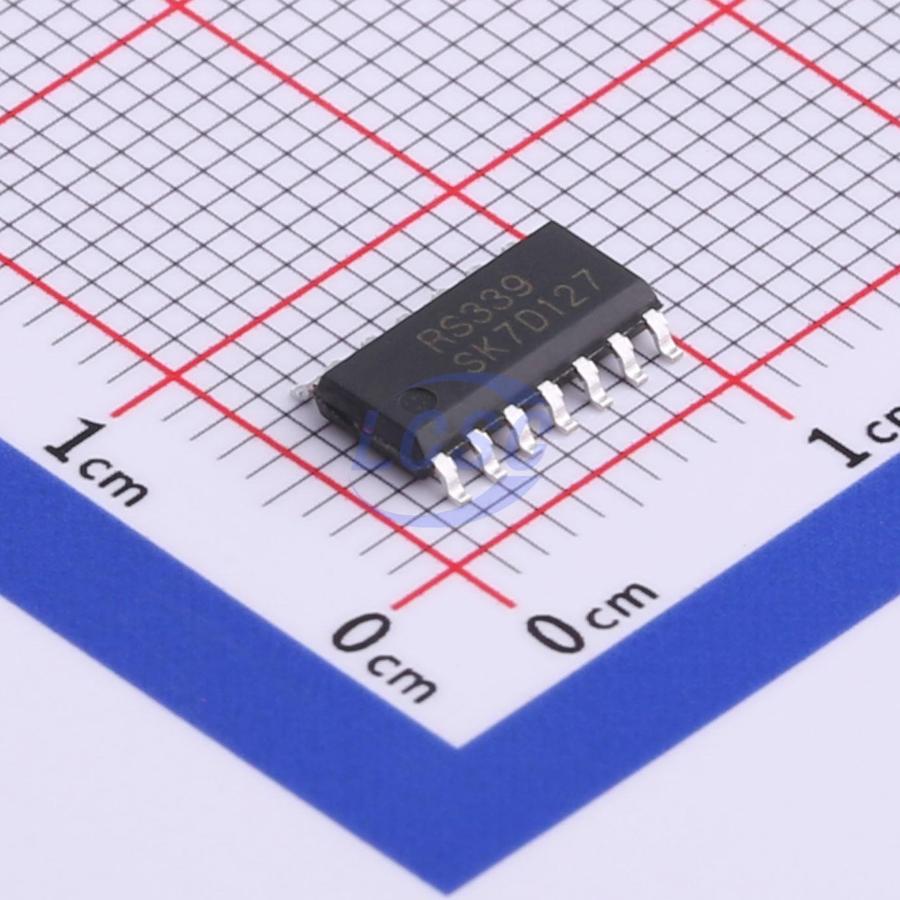

RS339XP
Four channels 50uA 600uV SOP-14 Comparators RoHS
General-Purpose Low-Voltage Open-Drain Output Comparator
- Manufacturer
- RUNIC
- Manufacturer part #
- RS339XP
- Store part #
- C783424
- Package / case
- SOP-14
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,550 in stock
#C783424
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.52 | ₹172.60 |
| 50+ | ₹25.77 | ₹1,288.50 |
| 150+ | ₹22.03 | ₹3,304.50 |
| 500+ | ₹17.36 | ₹8,680.00 |
5 × ₹34.52
₹172.60
excl. GST
₹203.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS339XP
₹172.60 for 5 + GST
Specifications
- Number of Channels
- Four channels
- Input Offset Current(Ios)
- 1pA
- Output Mode
- CMOS
- Operating Temperature
- -40℃~+85℃
- Dual Supply
- 0.9V~2.75V;-2.75V~-0.9V
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 0.5uV/℃
- Output Type
- Open-drain
- Propagation Delay(tpd)
- 205ns
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Quiescent Current(Iq)
- 50uA
- Vos - Input Offset Voltage
- 600uV
- Maximum Power Supply Range (Vdd-Vss)
- 7V
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.176 g
Overview
Supply Range: +1.8V to +5.5V Low Supply Current 50μA (TYP) per channel at VS = 5V Input Common-Mode Voltage Range Includes Ground Low Output Saturation Voltage 150mV Typical • Open-Drain Output for Maximum Flexibility SPECIFIED UP TO ±85°C Micro SIZE PACKAGES: SOT23-5 The RS331 and RS393 is the single and dual comparator version, the RS339 is quad comparator version, and both are open-drain output comparators for maximum flexibility. It can operate from 1.8V to 5.5V, and have low power consuming 50μA (TYP) per channel. The RS331, RS393 and RS339 are the most costeffective solutions for applications where low voltage operation, low power and space saving are the primary specifications in circuit design for portable consumer products. The RS331, RS393 and RS339 family of comparators can operate up to 5.5V on the supply pin. This standard device has proven ubiquity and versatility across a wide range of applications. This is due to its low power and high speed. The open-drain output allows the user to configure the output's logic low voltage (VOL) and can be utilized to enable the comparator to be used in AND functionality.
Applications
- Hysteresis Comparators
- Oscillators
- Window Comparators
- Industrial Equipment Test and Measurement
Key features
- Supply Range: +1.8V to +5.5V
- Low Supply Current 50μA (TYP) per channel at VS = 5V
- Input Common-Mode Voltage Range Includes Ground
- Low Output Saturation Voltage 150mV Typical
- Open-Drain Output for Maximum Flexibility
- SPECIFIED UP TO ±85°C
- Micro SIZE PACKAGES: SOT23-5
