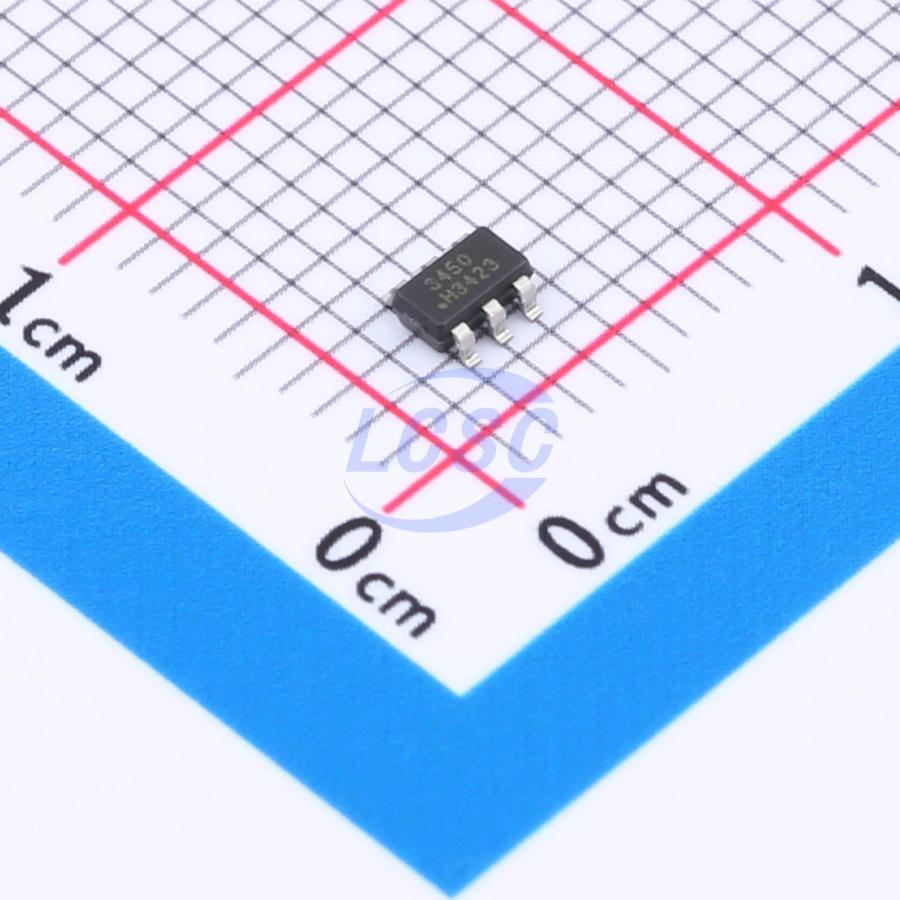

RS3450XH6-Q1
5V ±0.05% 5.5V~12V 10mA Fixed SOT-23-6 Voltage Reference
SOT-23-6RoHSActive
Low-Noise, Very Low Drift, Precision Voltage Reference
- Manufacturer
- RUNIC
- Manufacturer part #
- RS3450XH6-Q1
- Store part #
- C20611914
- Package / case
- SOT-23-6
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,368 in stock
#C20611914
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹210.89 | ₹210.89 |
| 10+ | ₹168.29 | ₹1,682.90 |
| 30+ | ₹144.83 | ₹4,344.90 |
| 100+ | ₹118.36 | ₹11,836.00 |
1 × ₹210.89
₹210.89
excl. GST
₹248.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS3450XH6-Q1
₹210.89 for 1 + GST
Specifications
- Quiescent Current
- 150uA
- Output Voltage
- 5V
- Tolerance
- ±0.05%
- Voltage - Supply
- 5.5V~12V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 8uVp-p
- Output Current
- 10mA
- Operating Temperature
- -40℃~+125℃
- Features
- Enable/disable
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.022 g
Overview
The RS34XX-Q1 is a family of low-noise, low-drift, very high precision voltage references. These references are capable of both sinking and sourcing current, and have excellent line and load regulation. Excellent temperature drift (10 ppm/°C) and high accuracy (0.05%) are achieved using proprietary design techniques with 150uA(typical) quiescent current. These features, combined with low noise, make the RS34XX-Q1 family ideal for use in high-precision data acquisition systems. The RS34XX-Q1 is available in Green SOT23-6 packages. It operates over an ambient temperature range of -40°C to +125°C.
Applications
- Precision Data Acquisition Systems
- Semiconductor Test Equipment
- Medical Instrumentation
- Industrial Process Controls
- Pressure and Temperature Transmitters
- Lab and Field Instrumentation
Key features
- Qualified for Automotive Applications
- AEC-Q100 Qualified with the Grade 1
- Low Temperature Drift: 10 ppm/°C (Max)
- High Accuracy: 0.05% Maximum
- Low Noise: μVPP/V
- Low IQ: 150μA (Typical)
- Operating Temperature Range: -40°C to +125°C
- High Output Current: ±10 mA
- Micro SIZE PACKAGES: SOT23-6
