RUNICDatasheet (PDF)

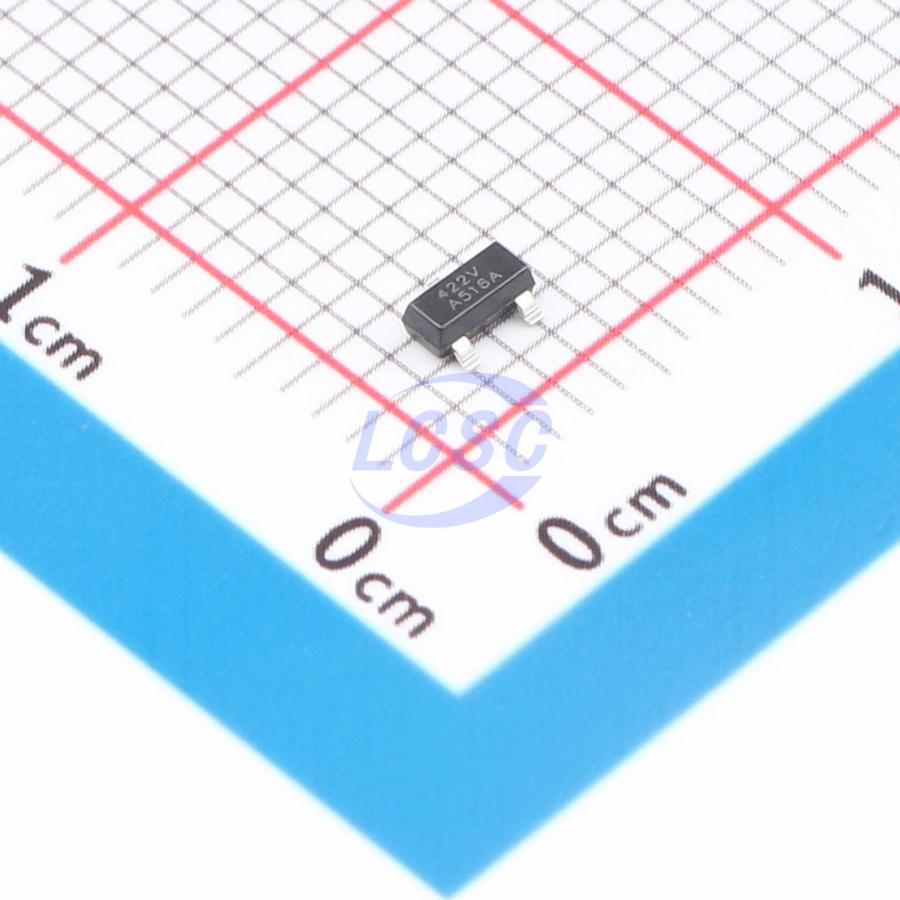

RS422VXSF3
1.24V~12V ±0.5% 100mA Adjustable SOT-23 Voltage Reference
SOT-23RoHSActive
- Manufacturer
- RUNIC
- Manufacturer part #
- RS422VXSF3
- Store part #
- C54300683
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,120 in stock
#C54300683
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.49 | ₹62.45 |
| 50+ | ₹9.95 | ₹497.50 |
| 150+ | ₹8.68 | ₹1,302.00 |
| 500+ | ₹7.73 | ₹3,865.00 |
| 3,000+ | ₹6.97 | ₹20,910.00 |
| 6,000+ | ₹6.59 | ₹39,540.00 |
5 × ₹12.49
₹62.45
excl. GST
₹73.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS422VXSF3
₹62.45 for 5 + GST
Specifications
- Output Voltage
- 1.24V~12V
- Tolerance
- ±0.5%
- Minimum Cathode Current for Regulation
- 40uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
- Features
- Temperature compensation control
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.049 g
Overview
RS421V and RS422V devices are three-terminal adjustable shunt regulators with guaranteed thermal stability over the applicable temperature range. By using two external resistors, the output voltage can be set to any value between VREF (approximately 1.24V) and 12V. These devices feature a very sharp turn-on characteristic, making them excellent replacements for Zener diodes in many applications. RS421V and RS422V devices are available in two grades with an initial tolerance of 0.5% (at 25°C).
Applications
- Adjustable voltage and current reference
- Power supplies
- Zener diode replacement
- Voltage monitoring
- Comparator with integrated reference
- Precision voltage reference
Key features
- 0.5% reference voltage tolerance at 25°C
- Programmable output voltage up to 12V
- Low dynamic output impedance: 0.03Ω
- Sink current capability: 0.05mA to 100mA
- Typical full-scale temperature coefficient: 25ppm/°C
- Temperature compensated over full rated operating temperature range
- Low output noise voltage
- Fast turn-on response
- Operating junction temperature range: -40°C to 150°C
- Lead-free package: SOT23
